On Breakthrough Discuss

Although I hadn’t thought I would get a post off today, I do want to get this Breakthrough Initiatives news release out about the upcoming Breakthrough Discuss meeting. Pay particular attention to the online options for participating.


Second annual “Breakthrough Discuss” conference held April 20-21 and broadcast on Facebook Live

San Francisco – April 18, 2017 – Breakthrough Initiatives today announced its second annual Breakthrough Discuss scientific conference, which will bring together leading astronomers, engineers, astrobiologists and astrophysicists to advance discussion surrounding recent discoveries of potentially habitable planets in nearby star systems. The conference will take place on Thursday, April 20 and Friday, April 21, at Stanford University.

The two days of discussions will focus on newly discovered Earth-like “exoplanets” in the Alpha Centauri and TRAPPIST-1 planetary systems, and new evidence that these planets could be habitable, as well as their potential as targets for novel methods of space exploration.

Guillem Anglada-Escudé, Queen Mary University of London, and Michaël Gillon, University of Liège, will serve as keynote speakers. Sessions will be chaired by Olivier Guyon, University of Arizona, Jill Tarter, former director of the Center for SETI Research, and Avi Loeb, Harvard University. A full overview of the sessions and panels are listed below.

“In the last 10 months, the world of astronomy has been rocked by discoveries of other planetary systems that look remarkably like our own,” said S. Pete Worden, Executive Director of the Breakthrough Initiatives. “The Breakthrough Discuss conference brings together many of the leading minds to advance the conversation on the potential for life on other worlds and to interrogate the conflicting theories and hypotheses prompted by this new data.”

The two-day event will feature three sessions of 19 presentations and 15 panelists. The first will focus on recent observations of nearby planets, including Proxima b, and new techniques for observing them. The second session will examine the possibility of intelligent life in Earth’s cosmic neighborhood, and recent attempts to search for it with Breakthrough Listen. The third session will assess the significance of the newly-discovered exoplanets for the long-term Breakthrough Starshot endeavor, a program spearheaded by Yuri Milner to develop a practical interstellar space probe.

As the closest known exoplanet, Proxima b is the current primary target for Starshot, which aims to develop the technology to send gram-scale spacecraft travelling at 20 percent the speed of light to Alpha Centauri, some 4.367 light years away. Starshot mission leaders Avi Loeb, Philip Lubin and Zac Manchester will be among the distinguished participants at Breakthrough Discuss.

The conference will be broadcast on Facebook Live at www.Facebook.com/BreakthroughPrize. Viewers are encouraged to join in the conversation and submit questions, which have the opportunity to be answered by the panelists in real-time.

Start times for all sessions will also be posted on the Breakthrough Facebook page. For more information on the program, including a detailed schedule, please visit: breakthroughinitiatives.org/Events.

Breakthrough Discuss is hosted by Stanford University’s Department of Physics and the Harvard-Smithsonian Center for Astrophysics and sponsored by the Breakthrough Initiatives.

Breakthrough Discuss is an annual academic conference focused on life in the Universe and novel ideas for space exploration.

Breakthrough Initiatives are a suite of scientific and technological programs exploring the big questions around life in the Universe, such as, Are we alone? What are the nearest habitable planets? And can we become an interstellar civilization?

For more information see breakthroughinitiatives.org

Breakthrough Discuss

Thursday, April 20 and Friday, April 21


Earth has discovered a neighbor.

In August 2016, the exoplanet Proxima b was discovered on our cosmic doorstep. It orbits Proxima Centauri, the nearest star to our Sun, approximately 4.2 light-years (25 trillion miles) away. This was a thrilling discovery: the closest known exoplanet to the Solar System also happens to lie within the habitable zone of its star; and just four months after its launch, Breakthrough Starshot had its first target.

Then, in February 2017, seven exoplanets were identified orbiting a dwarf star named TRAPPIST-1, about 40 light-years (235 trillion miles) from Earth. In cosmic terms, these planets too are just down the street. As evolving observation and propulsion technologies promise to extend our vision and physical presence to interstellar destinations, these potentially habitable or life-bearing worlds are transforming the space of our possibilities for life in our galactic neighborhood: both possibilities for extraterrestrial life, and for the future of humanity.

The discoveries of Proxima b and the seven worlds of the TRAPPIST-1 system will be the overarching theme for this year’s Breakthrough Discuss.

Session One: Observations of Proxima b and Habitable Planets Around Nearby Cool Stars

What can be learned about Proxima b and habitable planets around nearby cool stars by remote sensing from Earth and from near-term space missions? This session will focus on observations and systems, both Earth-based and space-based, for studying the newly discovered Proxima b planet and yet-to-be-identified habitable planets around nearby M-type stars. A particular focus will be on how life might be confirmed, and when this might be feasible.

Session Chair:

* Olivier Guyon, University of Arizona

Session Co-Chairs:

* David Charbonneau, Harvard University
* Lisa Kaltenegger, Cornell University

Session Two: SETI Observations of Proxima b and Nearby Stars

What SETI measurements are possible for Proxima b and nearby stars? This session will review a number of SETI observations already taken of the Proxima Centauri system, and consider new observation possibilities. These include discussion of what “leakage” from a technological civilization might be detected with current instrumentation; what additional observations can and should be made; and ideas for new and untried methods of observation and data-gathering.

Session Chair:

* Jill Tarter, SETI Institute
Session Co-Chairs:

* Tabetha Boyajian, Louisiana State University
* Andrew Siemion, University of California, Berkeley
* Jason Wright, Penn State University
* Shelley Wright, University of California, San Diego

Session Three: Scientific Goals and Instrumentation for a Flyby of the Nearest Stars

Breakthrough Starshot aims to send lightweight probes at a fraction of the speed of light to the nearest stars. What instruments and measurements should be available to this fleet of spacecraft? This session will focus on measurements that could be made by StarChips flying through the Alpha Centauri planetary system, with an emphasis on the search for life on Proxima b. The discussion will include an initial brainstorm on the desired spectral and imaging parameters (resolution and wavelengths), the type of instruments (including novel probes of particles and fields), as well as the optimal flyby distance and trajectory.

Session Chair:

* Avi Loeb, Harvard University

Session Co-Chairs:

* Phil Lubin, University of California, Santa Barbara
* Zac Manchester, Harvard University
* Mason Peck, Cornell


For Breakthrough Initiatives
Rubenstein / Kristen Bothwell
212-843-9227 / KBothwell@Rubenstein.com


Mission Concepts: Bound Orbits around Other Stars

Can we use a laser array to get a fast probe to another star? Breakthrough Starshot relies upon the notion, which was first advanced by Robert Forward all the way back in 1962, and subsequently considered by George Marx in 1966, along with hosts of researchers since. With beamed energy we leave the propellant behind, but as we’ve seen in our discussions of deceleration, there remains the problem of slowing down at the target. Breakthrough Starshot assumes a flyby, but the paper we looked at yesterday works out strategies for braking into orbit at the target star. Or more accurately, at the target stars, for multiple systems are assumed.

Let’s dig back into that paper today, but first, let me make a brief administrative comment. The upcoming Breakthrough Discuss meeting in Palo Alto (I covered last year’s sessions) occurs at exactly the wrong time for me — I’m locked into long-standing travel plans elsewhere. While I travel, there will be no Centauri Dreams posts for the rest of this week, though I will try to keep up with comment moderation. Things return to normal next Monday.

Now, as to multiple stars and our target list. René Heller, Michael Hippke and Pierre Kervella use multiple stars as ‘photon bumpers,’ depending upon steep deceleration at one or more in order to slow the craft and deflect it on to a final target. Alpha Centauri is the obvious case in point, for using these methods we can consider a probe that brakes into orbit around Proxima b after decelerating encounters with Centauri A and B. The new paper revises a January paper from Heller and Hippke by offering trajectories that provide for faster cruise times.


Image: This image of the sky around the binary Alpha Centauri AB also shows the much fainter red dwarf star, Proxima Centauri, the closest star to the Solar System. The picture was created from images forming part of the Digitized Sky Survey 2. Credit: Digitized Sky Survey 2. Acknowledgement: Davide De Martin/Mahdi Zamani.

Interstellar Destinations

As we saw yesterday, the authors believe they can cut the travel time to Centauri A and B from 95 to 75 years (with an additional 46 years necessary for the crossing to Proxima Centauri). All this depends upon maximizing the arrival speed at the first star while producing enough deceleration through photon braking to make the needed speed and course adjustments. And if this can be done at Alpha Centauri, it can be done with other nearby systems, but we would experience much longer travel times with single stars like Tau Ceti or Epsilon Eridani.

Fortunately, multiple star systems abound, offering interesting possibilities. Having optimized the trajectories for Proxima Centauri, the authors consider Sirius A, which is actually about twice the distance from the Sun as Alpha Centauri. The star is bright enough (24.2 solar luminosities) that maximum insertion speed into the Sirius system can be high, some 12.5% of the speed of light. We get a much faster cruise speed coupled with much more dramatic deceleration, and the travel time of 69 years is actually shorter than our Proxima mission.

Sirius is itself a binary, with a white dwarf, Sirius B, that would be useful to study. The paper’s Table 2 is worth reproducing here, as it broadens the range of targets still further.

Screenshot from 2017-04-18 08-16-32

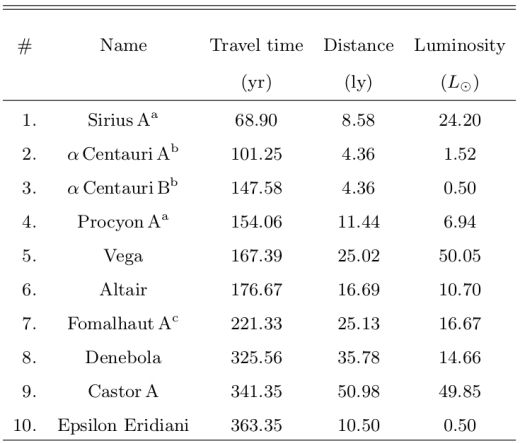

Image: The paper’s Table 2. Caption: An interstellar travel catalog to use photogravitational assists for a full stop. Credit: Heller, Hippke and Kervella.

Notice that Epsilon Eridani is 10.5 light years away, while Sirius A is 8.58 light years distant, but the journey to Epsilon Eridani is a whopping 363 years compared to the 68.9 to Sirius. Here again we’re relying on the innate brightness of Sirius to allow the fast insertion speed that will accommodate maximum cruise velocity plus deceleration and trajectory change at destination — we don’t have this at Epsilon Eridani. But that also presupposes that we have the ability to launch a craft at a blistering 12.5 percent of c. Breakthrough Starshot talks about 20% of c through the use of an Earth-based laser array. For their part, Heller, Hippke and Kervella think a hybrid accelerative boost might be the best approach:

A graphene-class sail could have a maximum ejection speed of about 11,500 km s ?1 from the solar system if it was possible to bring it as close as five solar radii to the Sun and then initiate a photogravitational launch (Heller & Hippke 2017). This is much less than the maximum injection speed of 17,050 km s ?1 that can be absorbed by successive photogravitational assists at ? Cen A to C. If sunlight were to be used to push a lightsail away from the solar system, then its propulsion would need to be supported by a second energy source, e.g. a ground-based laser array, to fully exploit the potential of photogravitational deceleration upon arrival. A combination with sunlight might in fact reduce the huge energy demands of a ground-based laser system.

Lessening the requirements for the array is all to the good considering the challenge of building it and powering it up. Of course, the hybrid approach assumes huge advances in sail materials, though the authors believe that current progress with graphene will make a workable sail for these purposes feasible within the next few decades. However we reach the necessary speeds, we can look at the prospect of even faster speeds with the assistance of other stars.

The Sirius Afterburner

Which gets us back to Sirius, where the authors consider what they call the ‘Sirius afterburner,’ in which the star becomes the instrument for achieving higher speeds than we can achieve with Earth-based technologies. The authors’ numerical simulations show that minimizing deceleration during approach while maximizing the acceleration after the flyby can increase the velocity of the lightsail up to 27,000 km s-1. That’s a boost of 9 percent of the speed of light. Sirius, then, with its proximity to the Sun and its brightness, becomes what the paper calls “the most natural choice for an interstellar photogravitational hub for humanity.”

Taking that broad view of a possible future is what the paper’s next figure is all about.

Screenshot from 2017-04-18 08-57-55

Image: Travel times (as hour angles) versus stellar distance to the solar system (along the radial coordinate) for stars in the solar neighborhood. Symbols refer to numerical trajectory simulations to individual targets, lines refer to the logarithmic spiral derived in Equation (4). The spirals are parameterized using M2V (red), K5V (orange), G2V (yellow), F3V (green), and A0V (blue) template stars from Pecaut & Mamajek (2013). Square symbols represent stars with known exoplanets. The black star symbol represents ? Cen. Left: All 117 stars within 21 ly around the Sun. Right: 22,178 stars out to 316 ly around the Sun. Credit: Heller, Hippke & Kervella.

A photogravitational hub like this can yield an interesting target list indeed. We have a total of 328 known exoplanet host stars within 316 light years, and many stars of astrophysical interest in themselves. Among these, the authors suggest such destinations as TV Crateris, which is a quadruple system of young T Tauri stars about 150 light years away. 36 Ophiuchi is a triple system of K stars some 19.5 light years out. Also intriguing: Fomalhaut, 25 light years away and another triple, with exoplanet Fomalhaut b and protoplanetary disks around Fomalhaut A (Alpha Piscis Austrini) and C (LP 876-10).

We would like to reach any number of single star targets as well, especially nearby red dwarfs of the sort that we will soon be analyzing for biosignatures, but achieving a bound orbit around such a star would involve extremely long travel times. A flyby more like the basic Breakthrough Starshot concept seems to make more sense for these because unlike Proxima Centauri, they have no nearby bright stars to slow the incoming craft and alter its trajectory.

The paper is sanguine about the prospects for developing the needed technologies for the missions examined herein. Components currently under development include:

…procedures for the large-scale production of graphene sheets, nanowires with the necessary electronic properties consisting of single carbon atom layers, gram-scale cameras and lasers (for communication between the sail and Earth), or sub-gram-scale computer chips required to perform on-board processing etc. We thus expect that a concerted effort of electronic, nano-scale, and space industries and research consortia could permit the construction and launch of ultra-light photon sails capable of interstellar travels and photogravitational assists, e.g. to Proxima b, within the next few decades.

Making any of these missions happen, though, demands the highest degree of aiming accuracy, which we lack even for the Alpha Centauri stars (and bear in mind that Gaia will not observe Centauri A or B). To pull off a successful ‘bank shot’ in the Centauri system, we will have to nail the proper motion and binary orbital motion of the AB binary. Right now our data are simply not sufficient: The authors note that we lack the current capability to achieve orbital injection and swing-by to Proxima, something that will have to be remedied through highly precise astrometry.

The paper is Heller, Hippke and Kervella, “Optimized trajectories to the nearest stars using lightweight high-velocity photon sails” (preprint).


Proxima Mission: Fine-Tuning the Photogravitational Assist

Deceleration has always been problematic in projected schemes for interstellar travel. A flyby of a star at a substantial percentage of lightspeed yields a fraction of the data that would be obtainable by a probe slowed into orbit in the target system. But how to slow down? In particular, how do you slow down when your method of propulsion is beamed energy?

The ideas have flowed over the years, ranging from Philip Norem’s ‘thrustless turning’ — using interactions between the spacecraft and the interstellar magnetic field — to Robert Forward’s ‘staged’ sail, in which the sail separates into separate components, with beamed laser light from Earth bouncing off one to the other to slow the payload. Norem’s notion, though, hugely lengthened trip times while taking the spacecraft far beyond the target before turning it back, while staged sails require a pointing accuracy in a laser array that is hard to imagine.

Many other options have been advanced, including braking against a stellar wind with a magsail, but it was a recent paper from René Heller (Max Planck Institute for Solar System Research, Göttingen) and German colleague Michael Hippke that got my attention at the beginning of February (see By ‘Photogravitational Assists’ to Proxima b). Heller and Hippke are now joined by Pierre Kervella (CNRS/Universidad de Chile) in a reworking of the original idea with a major twist, a far more effective means of slowing and turning the craft which, in turn, produces much faster travel times because it allows a higher speed upon arrival.


Image: Orbital plot of Proxima Centauri showing its position with respect to Alpha Centauri over the coming millennia (graduations are in thousands of years). The large number of background stars is due to the fact that Proxima Cen is located very close to the plane of the Milky Way. Credit: P. Kervella (CNRS/U. of Chile/Observatoire de Paris/LESIA), ESO/Digitized Sky Survey 2, D. De Martin/M. Zamani –https://www.eso.org/public/images/ann16089a/

Photogravitational Assists and Lightsails

The original Heller/Hippke paper fit nicely with the Breakthrough Starshot idea, in that what the latter was proposing was to accelerate small beamed sails up to 20 percent of the speed of light for a flyby of the Proxima Centauri system and its interesting planet Proxima b. Hippke and Heller advocated using the G-class Centauri A and K-class Centauri B as ‘photon bumpers,’ with a much larger lightsail than Breakthrough Starshot envisioned being slowed and having its trajectory altered by photon pressure and gravity, with a final deflection to Proxima Centauri itself, which the craft would approach at a speed slow enough for photon braking into orbit.

The new paper finds a more efficient way of using a star as a photon bumper, one that increases the deceleration at Centauri A and B and thus allows the sail to approach these stars faster. The savings are substantial: Using a modified photogravitational assist as suggested here, we cut the travel time from 95 years to 75 years. You can see that to use these methods, a single star is not optimum. We look instead for multiple systems in which we can use two or more stars to pull off this interstellar bank shot. Intriguingly, it turns out that the Alpha Centauri system may not actually be the closest — in time — for such a mission, but more on that later.

The spacecraft that Heller, Hippke and Kervella have in mind is made of an ultralight material like graphene, which would be coated with “a highly reflective broadband coating made of sub-wavelength metamaterials.” For a Centauri mission, the craft would be brought up to cruise velocity by a close solar pass rather than accelerated through a ground-based laser array, the method being investigated by Breakthrough Starshot. The lightsail would be accelerated to a cruise velocity of 4.6 percent of c. It would use the assist maneuver upon arrival at Centauri A and B and brake into Proxima to achieve a bound orbit around Proxima b.

When using the photon pressure of a star and its gravitational pull to both decelerate and deflect an incoming sail, the key is to find the maximum possible injection speed at the first destination star. Doing that at Alpha Centauri A would allow the necessary flyby and course adjustment at Centauri B, followed by deflection to Proxima. Finding that injection speed has to be factored against reaching the required deflection angle between inbound and outbound trajectories.

The new work introduces follow-up studies to the Heller/Hippke paper that tweak the simulations with a revised concept, one that favors stellar photon pressure over gravity in enhancing the deflection. The result: “we demonstrate that such a photogravitational assist is more effective when the star is used as a bumper (i.e. the sail passes “in front of” the star) rather than as a catapult (i.e. the sail passes “behind”or “around” the star).”

From the paper (note that v?,max, as discussed below, is the maximum speed of arrival for a successful deceleration and deflection within the Centauri system) :

From a geometry perspective, it is more efficient to let the sail approach the star on the same side (e.g. on the left, see Figure 1) as the desired deflection (i.e. to the left). We then find that, using the same optimization strategy for deceleration as Heller & Hippke (2017), a maximum total deceleration of v?, max = 17, 050 km s ?1 can be reached at ? = 19° , where 8, 800 km s ?1 and 8, 400 km s ?1 can be lost at A and B, respectively.

Screenshot from 2017-04-17 08-47-53

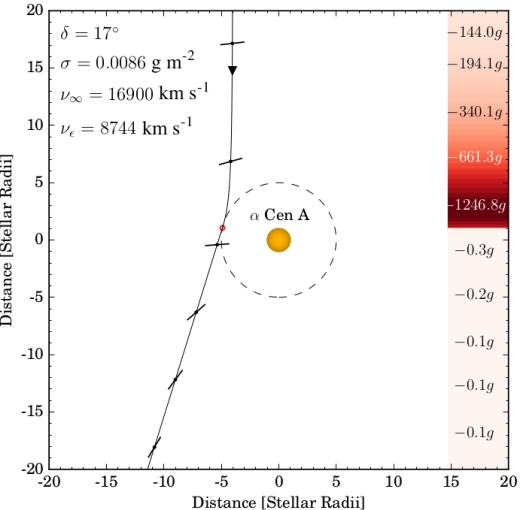

Image: Figure 1 from the paper. Caption: Trajectory of a lightsail performing a photogravitational assist at ? Cen A (orange circle). The bar along the trajectory visualizes the instantaneous orientation of the sail determined to maximize the deceleration. The values in the legend denote the deflection angle, the mass-to-surface ratio, the inbound velocity, and the outbound velocity of the sail. The color bar at the right shows the g-forces acting on the sail along the trajectory, where g = 9.81 m s ?2 is the acceleration on the Earth’s surface. Credit: Heller, Hippke and Kervella.

The revised work thus changes the original Proxima b mission. Assuming the intent is to brake into the Proxima system for close examination of the planet, then the sail is better oriented so as to avoid maximum deceleration during its encounter with Centauri B. This allows the cruise to Proxima to continue with a residual speed of 1,270 km s-1, which is the maximum speed that can be used to fully brake into the Proxima system. As you can see, the authors must juggle the fastest possible cruise times with the maximum injection speeds.

So we have learned that when the photogravitational assist is made at the same side of the star as the desired deflection, as opposed to a gravitational swing behind the star (the method of the original paper), the injection speed at Centauri A (and thus cruise speed enroute) is increased substantially. The authors’ calculations involving a graphene lightsail show an injection speed (v?, max) of 17,050 km s-1 for the new method (this works out to 5.7% c, as opposed to the previous 13,800 km s-1, which is 4.6% of c). We get an increase in speed of 24 percent, while we reduce travel times from Earth to Centauri A and B from 95 years to 75 years.

Adding in the travel time to Proxima Centauri after the photogravitational assists at Centauri A and B, we get a total travel time from Earth to a bound orbit in the Proxima Centauri system of 121 years, with the final 1,280 km s-1 absorbed through photon braking at Proxima itself. 46 years, in other words, is needed to go from Centauri AB to Proxima. What a shame we can’t launch such a mission this year, for the alignment in the Centauri system is such that a mission arriving at Centauri AB in 2092 would allow minimum travel times and maximum injection speeds. In 2092 the deflection required by the sail for the AB photogravitational assist is smallest.

Screenshot from 2017-04-17 08-47-11

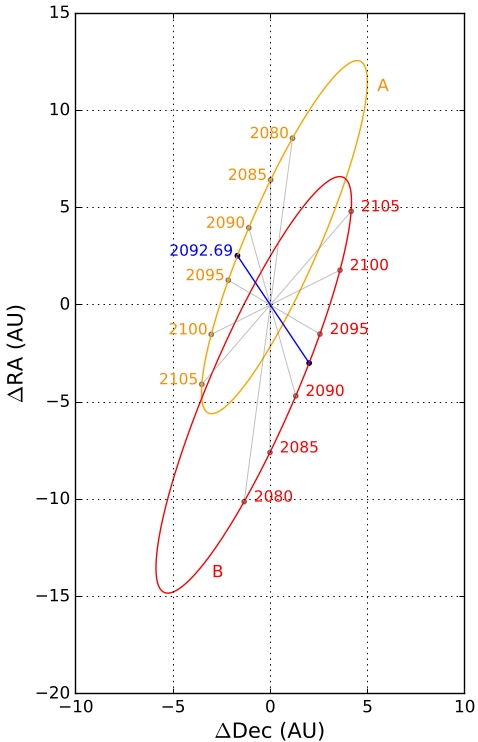

Image: Figure 2 from the paper. Orbital trajectories of ? Cen A (orange) and B (red) in their barycentric coordinate system as seen from Earth using differential RA and Dec coordinates. The AB vector at the time of their closest apparent encounter in 2092.69 (8 September 2092) is marked in blue. Credit: Heller, Hippke and Kervella.

It should be clear from all this that to calculate the actual value of the maximum injection speed at Centauri A and B, we need to calculate the deflection angle required by the sail to make the necessary trajectory adjustments. This will be the case in any nearby system to which we hope to apply these methods. And here we find the interesting result that there are systems which could be closer in terms of travel time than Alpha Centauri itself. Tomorrow we’ll return to this paper to look at the possibilities for photogravitational assists to bound orbits in other systems.

The paper is Heller, Hippke and Kervella, “Optimized trajectories to the nearest stars using lightweight high-velocity photon sails” (preprint).


New Findings on Enceladus, Europa

Jim Green, who is director of the Planetary Science Division at NASA headquarters, clearly loves his job, and he got so excited during Thursday’s news conference that he kept interchanging Enceladus with Europa in his remarks. Both were in play during the discussion, and the context made it clear what he intended, but I always get a kick out of seeing that kind of enthusiasm showing forth in scientists and academics. It’s a reminder of why they got involved in the first place, and for that matter, what drew me into writing about the field myself.

The news delivered in the press conference and through two new papers involves two older space missions that are driving planning for yet a third, the Europa Clipper mission, a Jupiter orbiter that is still in the design and planning stages. And with Cassini in its final months of operation, it’s fitting that a Cassini flyby through the Enceladus plumes in 2015 should result in what Cassini project scientist Linda Spilker (JPL) called a ‘capstone finding.’ Hydrogen has turned up in the plumes, which turn out to be about 98 percent water vapor and 1 percent hydrogen, with a mix of carbon dioxide, methane and ammonia making up the rest.

Cassini’s Ion and Neutral Mass Spectrometer (INMS) instrument has, in other words, shown us, a potential pointer to what any Enceladus microbes might use to stay alive. For hydrogen must be entering the subsurface ocean because of hydrothermal activity on the seafloor.

We don’t know that life exists here, but provocatively enough, hydrogen can be a source of chemical energy, combining with carbon dioxide dissolved in the apparently abundant water beneath the surface of Enceladus. ‘Methanogenesis’ is the name of this reaction because methane is produced as a by-product. Add to this energy source the fact that we also have carbon, nitrogen and oxygen. If phosphorus and sulfur also exist in that ocean (and the prospects are good), then the case for Enceladus as a venue for life strengthens.

So we have powerful evidence that rock deep inside Enceladus is interacting with hot water. Think back 40 years to the arrival of the Viking landers on Mars and you’ll recall that at roughly the same time, oceanographers were finding unexpected life forms around hydrothermal vents on Earth. Hydrothermal fluids beneath the ocean floor were driving geochemical transformations in which minerals rich in iron react with water to form new minerals. Chris Glein (SwRI) said that the Cassini findings show that geochemistry is likewise active on Enceladus.

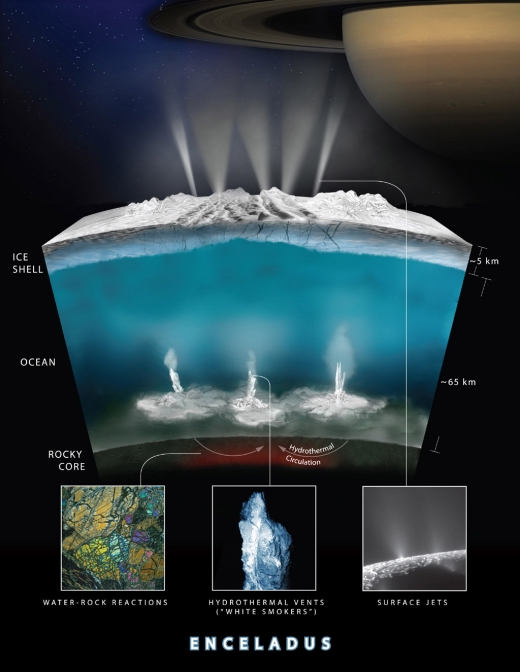

Image: The graphic shows water from the ocean circulating through the seafloor, where it is heated and interacts chemically with the rock. This warm water, laden with minerals and dissolved gases (including hydrogen and possibly methane) then pours into the ocean creating chimney-like vents. The hydrogen measurements were made using Cassini’s Ion and Neutral Mass Spectrometer, or INMS, instrument, which sniffs gases to determine their composition. The finding is an independent line of evidence that hydrothermal activity is taking place in the Enceladus ocean. Previous results from Cassini’s Cosmic Dust Analyzer instrument, published in March 2015, suggested hot water is interacting with rock beneath the ocean; the new findings support that conclusion and indicate that the rock is reduced in its geochemistry. With the discovery of hydrogen gas, scientists can now conclude that there is a source of chemical free energy in Enceladus’ ocean. Credit: NASA/JPL-Caltech/Southwest Research Institute.

It’s an exciting thought, though we don’t know if any parallels to life around Earth’s ‘white smokers’ far below the surface exist. We do know that forms of life can feed on chemical energy rather than sunlight, with that process of methanogenesis combining H with CO2 to produce methane and extract energy out of the process. As Glein pointed out, we’re now looking at the first calorie count in an alien ocean, with life as a geochemical possibility.

An older mission, the Galileo Jupiter orbiter that gave us our best imagery of Europa, accounted for the second discovery announced yesterday. This one was not a complete surprise, as we had already found evidence of a possible plume on Europa through observations from the Hubble Space Telescope. But the 2014 detection of a plume is now bolstered by a 2016 detection. The Galileo data are crucial here because thermal imagery of the area in question, taken by the spacecraft in the 1990s, shows a hot spot, a ‘thermal anomaly,’ as William Sparks (Space Telescope Science Institute) called it. The region also contains surface features that appear to be cracks in the moon’s ice crust.

“The plumes on Enceladus are associated with hotter regions, so after Hubble imaged this new plume-like feature on Europa, we looked at that location on the Galileo thermal map. We discovered that Europa’s plume candidate is sitting right on the thermal anomaly,” said Sparks.

It was Sparks who led the Hubble plume studies in both 2014 and 2016.


Image: These composite images show a suspected plume of material erupting two years apart from the same location on Jupiter’s icy moon Europa. The newly imaged plume, shown at right, rises about 100 kilometers above Europa’s frozen surface. The image was taken Feb. 22, 2016. The plume in the image at left, observed by Hubble on March 17, 2014, originates from the same location. It is estimated to be about 50 kilometers high. The snapshot of Europa, superimposed on the Hubble image, was assembled from data from NASA’s Galileo mission to Jupiter. Credit: NASA/ESA/W. Sparks (STScI)/USGS Astrogeology Science Center.

Finding a hot spot in the same place as the candidate position for the detected plumes gives us further evidence that the Europan ocean can communicate with the surface, although its activity is not as spectacular as the numerous venting jets we see at Enceladus’ south pole. The new plume rises about 100 kilometers above the Europan surface, about twice as high as the one observed in 2014, and both correspond to the thermal region imaged by Galileo.


Image: These images of the surface of the Jovian moon Europa, taken by NASA’s Galileo spacecraft, focus on a “region of interest” on the icy moon. The image at left traces the location of the erupting plumes of material, observed by NASA’s Hubble Space Telescope in 2014 and again in 2016. The plumes are located inside the area surrounded by the green oval. The green oval also corresponds to a warm region on Europa’s surface, as identified by the temperature map at right. The map is based on observations by the Galileo spacecraft. The warmest area is colored bright red. Credit: NASA/ESA/W. Sparks (STScI)/USGS Astrogeology Science Center.

Assuming a linkage between the plumes and the warm spot on the surface, researchers believe that liquid water being vented from below the crust could be warming the area around the plume. Another possibility is that water vapor being ejected from the plume falls back to the surface in a mist that changes the structure of local surface grains and lets them retain heat longer than the surrounding regions. We should learn a great deal more with Europa Clipper.

Planned for a launch in the next decade, Europa Clipper can draw on both sets of findings discussed yesterday. We can envision a probe that, like Cassini, can fly through the plumes of a distant moon, hoping to extract information about the ocean beneath. The spacecraft, which will make numerous close flybys of the moon, will carry nine major instruments. Its magnetometer should help us measure the size of the ocean, while ice penetrating radar can help us measure the thickness of the ice. We’ll also use thermal imaging, like Galileo, to look for other hot spots, and learn if there are cracks associated with these regions. Also in the works: A next generation version of Cassini’s Ion and Neutral Mass Spectrometer (INMS) instrument, and an ultraviolet camera to enhance the hunt for plumes.

Thus we learn, by a series of steps each leading to the next, mission building on mission to suggest the scope and shape of the mission to follow. We’re about to lose Cassini, but we lost Galileo in 2003 when it plunged into the atmosphere of Jupiter. Even so, its data continue to inform us how to interpret these new findings. Meanwhile, Hubble observations of Europa using its Space Telescope Imaging Spectrograph (STIS) continue to look for new plume activity. When Europa Clipper flies, it will be designed to answer questions earlier studies have raised.

The paper on Enceladus is Waite et al., “Cassini finds molecular hydrogen in the Enceladus plume: Evidence for hydrothermal processes,” Science Vol. 356, Issue 6334 (14 April 2017), 155-159 (abstract). The paper on Europa is Sparks et al., “Active Cryovolcanism on Europa?” Astrophysical Journal Letters Vol. 839, No. 2 (13 April 2017). Abstract available.


Investigation of a Possible Dwarf Planet

Astronomical investigations can overlap in extremely helpful ways. Consider the Dark Energy Survey, which examines some 12 percent of the sky in an attempt to learn more about whatever force is accelerating the expansion of the universe. DES is trying to map hundreds of millions of galaxies and identify thousands of supernovae while looking for patterns in cosmic structure, using a 570-Megapixel digital camera, DECam, mounted on the Blanco 4-meter telescope at Cerro Tololo Inter-American Observatory (Chile).

What DES produces are thousands of images — its initial search uncovered 1.1 billion candidate objects, most of which are galaxies or background stars. But among the objects are some that move in successive observations, the signature of objects in our Solar System. David Gerdes (University of Michigan) was able to find what appears to be a dwarf planet within the dataset. Called 2014 UZ224 and informally known as DeeDee (for Distant Dwarf), the object has now been characterized in a new paper from Gerdes and team.


Image: ALMA image of the faint millimeter-wavelength “glow” from the planetary body 2014 UZ224, more informally known as DeeDee. Credit: ALMA (ESO/NAOJ/NRAO).

The data behind the paper come from observations using the Atacama Large Millimeter/submillimeter Array (ALMA), a radio telescope installation at about 5000 meters altitude in the Atacama desert of northern Chile. 2014 UZ224 turns out to be about 635 kilometers across, which makes it two-thirds the diameter of Ceres. This should make the object massive enough to be spherical, allowing it to be considered a dwarf planet. It is, in any case, an object in an area thought to be rich in trans-Neptunian objects:

“Far beyond Pluto is a region surprisingly rich with planetary bodies. Some are quite small but others have sizes to rival Pluto, and could possibly be much larger,” says Gerdes. “Because these objects are so distant and dim, it’s incredibly difficult to even detect them, let alone study them in any detail. ALMA, however, has unique capabilities that enabled us to learn exciting details about these distant worlds.”

The object orbits among a population that we are still learning how to categorize. Some trans-Neptunian objects are members of the scattered disk and inner Oort cloud population, reaching well beyond the Kuiper Belt to distances of hundreds of AU. DeeDee is now some 92 AU out in an orbit that would take more than 1100 years to complete (aphelion is at about 180 AU). Sedna, considered to be an extended scattered disc object (E-SDO), is now 86 AU from the Sun (aphelion 936 AU), while Eris is currently at 96.3 AU (aphelion 97.6 AU). The Minor Planet Center currently lists over 2000 objects in the overall category of TNOs.

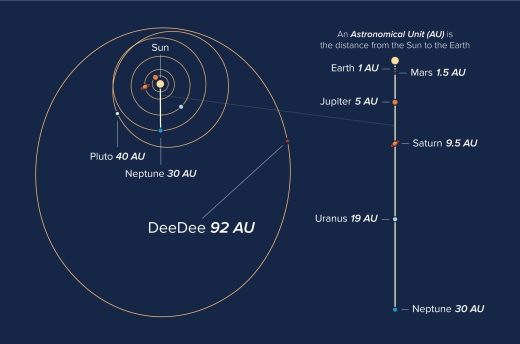

Image: Orbits of objects in our Solar System, showing the current location of the planetary body 2014 UZ224. Credit: Alexandra Angelich (NRAO/AUI/NSF).

We can expect numerous TNO discoveries ahead, as the paper explains:

The population of detected TNOs is of course strongly biased toward those that are large, near perihelion, and/or have high albedo. Current surveys such as the DES now have the depth and area coverage to discover the counterparts of known objects that are well beyond perihelion. It is also noteworthy that the ALMA facility is easily capable of radiometric detection of a 600 km body at > 90 AU distance. Hence it will be possible to establish sizes and albedos for nearly every body detectable in the visible by DES and similar surveys. As these surveys progress, we will be able for example to determine whether the very high albedo of Eris is characteristic of large bodies at this distance, or whether flux selection has led to the first discovery being atypical.

Working at millimeter wavelengths, Gerdes and his fellow researchers were able to calculate that the surface of DeeDee is at a temperature of 30 Kelvin, not far above absolute zero. The object’s size could be calculated by comparing the ALMA observations to the optical information from DECam and the Blanco instrument at Cerro Tololo. The possible dwarf planet reflects about 13 percent of the sunlight that strikes it based upon its heat signature (according to this NRAO news release, that’s about the same reflectivity as a baseball infield).

The paper is Gerdes et al., “Discovery and Physical Characterization of a Large Scattered Disk Object at 92 AU,” Astrophysical Journal Letters Vol. 839, No. 1 (12 April 2017). Abstract / preprint.
