Interstellar Sails: A New Analysis of Aerographite

A material called aerographite offers options for solar sails that transcend the capabilities of both beryllium and graphene, the latter being the most recent candidate for fast sail missions outside the Solar System. Developed at the Technical University of Hamburg and refined by researchers at the University of Kiel, aerographite came to the attention of the interstellar community in 2020 thanks to a groundbreaking paper by René Heller (Max Planck Institute for Solar System Research, Göttingen), working with co-authors Guillem Anglada-Escudé (Institut de Ciencies Espacials, Barcelona), Michael Hippke (Sonneberg Observatory, Germany) and Pierre Kervella (Observatoire de Paris).

I’ve written about aerographite before, in Aerographite: An Advance in Sail Materials with Deep Space Implications and Solar Sails: Deeper into the Aerographite Option, both of which are in the archives along with several other posts on the subject. But here I need to pause for a brief administrative moment: The recent changes to the website inadvertently resulted in a data overwrite in the archives that replaced some specialized characters used in scientific notation with question marks. Not good! I have a crack programmer working the fix using my backups, but at the moment the articles I’ve just mentioned do contain several missing characters. This will be remedied soon.

Back to aerographite, where I’m pleased to see this work receiving the further scrutiny it deserves, for this is a highly unusual material, not what you would expect when conceiving deep space missions. As Gregory Matloff and Joseph Meany explain in a new paper discussed at the Interstellar Research Group’s Montreal symposium, aerographite is both extremely low density and utterly opaque. The normal assumption is that an effective solar sail will be reflective (and indeed, graphene concepts include ways to introduce reflectivity, which could be achieved by adding substrates or doping graphene with alkali metals, thus increasing mass).

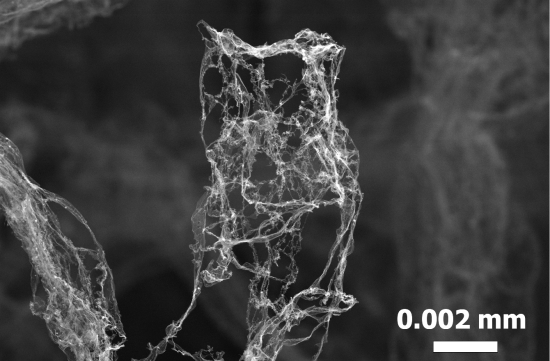

Image; A detail of the world’s lightest material: aerographite. Open carbon tubes form a fine mesh and offer a low density of 0.2 milligram per cubic centimetre. The picture was taken with a scanning electron microscope (SEM). Credit: TUHH.

But the startlingly black aerographite so effectively absorbs photons that in sail configuration it will be pushed into interstellar space. Indeed, Guillem Anglada-Escudé told me three years ago that absorbance works quite well for solar sailing, less effective than a highly reflective material by no more than a factor of 2. As Matloff (New York City College of Technology, CUNY) and Meany (Savannah River National Laboratory) explain in the paper growing out of their work, aerographite is produced by a chemical vapor deposition process that yields a synthetic foam connected by carbon microtubes, one whose opacity is complemented by its light weight. Indeed, the teams that developed it called aerographite “the lightest known material.”

At Montreal, Matloff explored how the material might be deployed in two classes of interstellar missions, looking at such factors as the maximum temperature of the sail at various perihelion distances (for possible ‘sundiver’ missions), the sail’s thermal emissivity, and the peak acceleration that can be achieved, along with payload mass limitations for a 1-micron spherical sail shell and a thin-film payload. The work also probes the characteristics of aerographite under laser beaming conditions, and goes on to examine how it might be deployed in futuristic manned interstellar ‘arks.’ You can see Matloff’s presentation at Montreal here.

Aerographite’s visible photon absorption approaches 100 percent, with high tensile strength and an extremely high melting point. Matloff and Meany’s research involves a hypothetical sail with maximum operational temperature of 3,500 K and a payload mass that is one-tenth of the sail’s. For the purposes of their calculations, they lower the sail’s absorptivity to sunlight to a perhaps more realistic 0.9. Here Matloff’s experience in graphene sails comes in handy, allowing him to use the same analytical tools he and colleague Giovanni Vulpetti have worked out over years of solar sail analysis. Of particular note is the ‘lightness factor,’ which measures solar radiation against acceleration, and which for aerographite works out to an exceptionally high value.

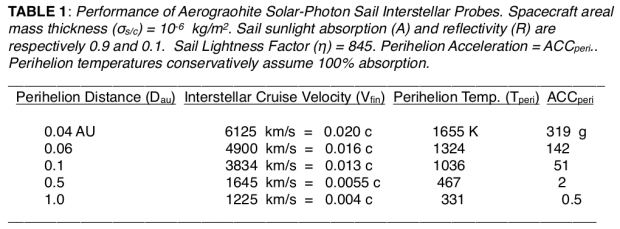

An aerographite sail, in other words, is extremely efficient at converting sunlight into acceleration. The numbers are striking in comparison to previous estimates for solar sailing (as opposed to beaming) technologies. The performance figures in the table below are for an interstellar probe whose sail is unfurled at perihelion during a close solar approach. If you check the perihelion figures used for the analysis, you’ll see that the 0.04 AU figure matches the closest approach of an existing spacecraft, the Parker Solar Probe. And it turns out that 0.06 AU is close to the closest perihelion distance assumed for a beryllium sail. Matloff’s previous analysis of graphene (in a 2014 paper) had assumed a 0.1 AU perihelion for a graphene sail in the same kind of mission.

Our probe reaches Proxima Centauri within a millennium for all cases, with the 0.04 AU perihelion probe cutting the travel time to two centuries, a striking figure for a solar sail. The further good news is that according to these calculations, the aerographite at no point exceeds its melting point. Note the huge peak acceleration for the 0.04 AU perihelion pass: 319 g! A sail that makes it through the perihelion pass at 0.04 AU achieves an interstellar cruise velocity of roughly 0.02 c, which we can then stack up against a laser-launched sail along the lines of what Breakthrough Starshot envisions.

Here we run into trouble. From the paper:

It is not clear that an aerographite sail could withstand the enormous accelerations necessary to propel a Project Starshot terrestrial-launched laser-photon sail. Also, such a sail must either have an appropriate curvature to remain within the beam because the beam source moves with Earth’s rotation or be implanted with an appropriate diffraction pattern to optically simulate an appropriately curved sail surface. Also, because aerographite is absorptive rather than reflective, the enormous required beam power on the sail to achieve an ~0.2c interstellar cruise velocity might be fatal.

Which is why Matloff and Meany studied the effects of a sail powered by the beam from a space-based laser array rather than a terrestrial one, using a 100 meter sail for the analysis. I will send you to the paper (or the video) for the details of these calculations, but a laser transmitter of approximately 1.8 kilometers is modeled, with the Sun-orbiting laser at 1 AU from the Sun. Here the craft achieves a velocity of 0.033c given the constraints applied to the beaming technology, which the authors note may be fewer than those imposed on the Starshot array. Indeed:

Constructing sail, sunlight-collection optics and the laser/transmitter are challenging as is the necessity of keeping the sail within the beam during the ~3-hour acceleration run. But these challenges are considerably less than is the case for the Project Starshot relativistic-velocity sails accelerated by a terrestrial laser array.

Those who know Greg Matloff’s work know how he rejoices in stretching ideas out to their maximum potential, much in the mode of Robert Forward. Thus it’s no surprise that the next idea considered here is an aerographite sail capable of carrying humans aboard an interstellar ark. That’s a discussion in itself, and so is the question of the best path forward for aerographite research, two subjects I’ll be taking up in the next post.

The paper is Matloff & Meany, ”Aerographite: A Candidate Material for Interstellar Photon Sailing,” submitted to JBIS and ultimately to be published as part of the proceedings of the Interstellar Research Group’s 2023 symposium. The Heller, Anglada-Escudé, Hippke & Kervella paper is “Low-cost precursor of an interstellar mission,” Astronomy & Astrophysics Vol. 641 (September 2020), A45 (abstract).

An Alternative Take on Fusion Fuel

Let’s talk about fusion fuels in relation to the recent discussion of building a spacecraft engine. A direct fusion drive (DFD) system using magnetic mirror technologies is, as we saw last time, being investigated at the University of Maryland in its Centrifugal Mirror Fusion Experiment (CMFX), as an offshoot of the effort to produce fusion for terrestrial purposes. The initial concept being developed at CMFX is to introduce a radial electric field into the magnetic mirror system. This enhances centrifugal confinement of the plasma in a system using deuterium and tritium as fusion fuel.

Out of this we get power but not thrust. However, both UMD’s Jerry Carson and colleague Tom Bone told the Interstellar Research Group’s Montreal gathering that such a reactor coupled with a reservoir of warm plasma offers prospects for in-space propulsion. Alpha particles (these are helium nuclei produced in the fusion reaction) may stay in the reactor, further energizing the fuel, or they can move upstream, to be converted into electricity by a Standing Wave Direct Energy Converter (SWDEC). A third alternative: They may move downstream to mix with the warm plasma, producing thrust as the plasma expands within a magnetic nozzle.

Image: The fusion propulsion system as shown in Jerry Carson’s presentation at IRG Montreal. Thanks to Dr. Carson for passing along the slides.

We also know that fusion fuel options carry their own pluses and minuses. We can turn to deuterium/deuterium reactions (D/D) at the expense of neutron production, something we have to watch carefully if we are talking about powering up a manned spacecraft. The deuterium/tritium reaction (D/T) produces even more neutron flux, while deuterium/helium-3 (D/He3) loses most of the neutron output but demands helium-3 in abundances we only find off-planet. Tom Bone’s presentation at Montreal turned the discussion in a new direction. What about hydrogen and boron?

Here the nomenclature is p-11B, or proton-boron-11, where a hydrogen nucleus (p) collides with a boron-11 nucleus in a reaction that is aneutronic and produces three alpha particles. The downside is that this kind of fusion demands temperatures even higher than D/He3, a challenge to our current confinement and heating technologies. A second disadvantage is the production of bremsstrahlung radiation, which Bone told the Montreal audience was of the same magnitude as the charged particle production.

The German word ‘bremsen’ means ‘to brake,’ hence ‘bremsstrahlung’ means ‘braking radiation,’ a reference to the X-ray radiation produced by a charged particle when it is decelerated by its encounter with atomic nuclei. So p-11B becomes even more problematic as a fuel, given the fact that boron has five electrons, creating a fusion plasma that is a lively place indeed. Bone’s notion is to take this otherwise crippling drawback and turn it to our advantage by converting some of the bremsstrahlung radiation into usable electricity. To do this, it will be necessary to absorb the radiation to produce heat.

Bone’s work at UMD focuses on thermal energy conversion using what is called a thermionic energy converter (TEC), which can convert heat directly into electricity. He pointed out that TECs are a good choice for space applications because they offer low maintenance and low mass coupled with high levels of efficiency. TECs operate off the thermionic emission that occurs when an electron can escape a heated material, a process Bone likened to ‘boiling off’ the electron. An emitter and collector in the TEC thus absorb the heat from the bremsstrahlung radiation to produce electricity.

Image: A screenshot from Dr. Bone’s presentation in Montreal.

I don’t want to get any deeper in the weeds here and will send you to Bone’s presentation for the details on the possibilities in TEC design, including putting the TEC emitter and collector in tight proximity with the air pumped out between them (a ‘vacuum TEC’) and putting an ionized vapor between the two (a ‘vapor TEC’). But Bone is upfront about the preliminary nature of this work. The objective at this early stage is to create a basic analytical model for p-11b fuel in a propulsion system using TECs to convert radiation into electricity, with the accompanying calculations to balance power and efficiency and find the lowest bremsstrahlung production for a given power setting.

The scope of needed future work on this is large. What exactly is the best ratio of hydrogen to boron in this scenario, for one thing, and how can the electric and magnetic field levels needed to light this kind of fusion be reduced? “It’s not an easy engineering problem,” Bone added. “It’s certainly not a near-term challenge to solve.”

True enough, but it’s clear that we should be pushing into every aspect of fusion as we learn more about confining these reactions in an in-space engine. Experimenting with alternate fusion fuels has to be part of the process, work that will doubtless continue even as we push forward on the far more tractable issues of deuterium/tritium.

A Fusion Drive Using Centrifugal Mirror Technologies

I want to drop back to fusion propulsion at this point, as it bears upon the question of a Solar System-wide infrastructure that we looked at last time. We know that even chemical propulsion is sufficient to get to Mars, but clearly, reducing travel times is critical if for no other reason than crew health. That likely puts the nuclear thermal concept into play, as we have experience in the development of the technology as far back as NERVA (Nuclear Engine for Rocket Vehicle Application), and this fission-based method shows clear advantages over chemical means in terms of travel times.

It’s equally clear, though, that for missions deep into the Solar System and beyond, the high specific impulse (ISP) enabled by a theoretical direct fusion drive sets the standard we’d like to meet. In his presentation at the Interstellar Research Group’s Montreal symposium, Jerry Carson discussed the ongoing work at the University of Maryland on creating fusion conditions using deuterium/deuterium (D/D) and deuterium/tritium (D/T) fuel with centrifugal mirror confinement. D/T fusion will likely drive our first fusion engines, but its higher neutron flux will spotlight the advantages of helium-3 when the latter becomes widely available, as shielding the crew on a fusion-powered spacecraft will be a critical factor.

Image: The Centrifugal Mirror Fusion Experiment at the University of Maryland at Baltimore (principal investigator Carlos Romero-Talamás, University of Maryland, Baltimore County). The plan is to achieve fusion conditions (D/D) by 2025. Credit: UMD.

Let’s dig into the centrifugal mirror (CM) concept. The beauty of plasma is that it is electrically conductive, and hence manageable by magnetic and electric fields. Hall thrusters use plasma (though not fusion!), as do concepts like Ad Astra’s VASIMR (Variable Specific Impulse Magnetoplasma Rocket). In a centrifugal mirror, the notion is to confine, compress and heat the plasma as it is spun within a fusion chamber, as opposed to the perhaps more familiar compression methods of inertial fusion, or the magnetic field structures within tokamaks. Carson argues that the CM makes for a more compact reactor and greatly reduces radiation and momentum loss.

The Maryland work implements this effect using magnetic ‘mirrors’ to create the rapid spin that imposes radial and axial forces on the plasma, confining it into a ‘well’ where fusion can be attained. The fuel is bouncing back and forth along the lines of force between the two magnets, a method first explored in the 1950s, when research indicated that mirrors of this kind are leaky and cannot maintain the plasma long enough to ignite fusion. Carson said that it is the addition of an electric field via a central electrode in the UMD design that spins the ‘doughnut’ around its axis, so that the plasma is held in place both axially as well as radially. The basic diagram is below.

Image: Centrifugal mirror confinement of a high energy plasma. Credit: UMD.

The ongoing work at Maryland grows out of an experimental effort in the 2000s that has led to the current Centrifugal Mirror Fusion Experiment (CMFX). The latter is designed with terrestrial power generation in mind, so we are talking about adapting a power-generating technology into a spacecraft drive. To do that, we fire up a centrifugal mirror fusion reactor in tandem with warm plasma (likely a reservoir of hydrogen, though other gasses are possible), so that high-energy fusion products escape the reactor downstream and deposit their energy in the plasma, causing it to expand as it passes through a magnetic nozzle to produce thrust. The reactor also uses energy leaving the upstream mirror to continue its own operations.

A direct fusion drive of this kind could, Carson said, make the round trip to Mars in 3 months, and reach Saturn in less than three years, a sharp contrast to nuclear electric methods. Even nuclear thermal methods would take over a year to make the Mars mission. Looking further out, the Uranus Orbiter and Probe (UOP), which is being considered as a flagship mission for the upcoming Decadal Survey, would make for a 12 year journey using chemical propulsion and a gravitational assist at Jupiter, while DFD-CM in these specs could do a considerably larger mission to more distant Neptune in as little as 3 years. A second generation Interstellar Probe (50 years to the heliopause in the NASA concept) could reach 1000 AU in 30-35 years using DFD-CM.

We’re not quite through with the University of Maryland, because Carson’s colleague Tom Bone has been analyzing a unique way to take advantage of otherwise problematic bremsstrahlung radiation, which complicates foperations with various kinds of fusion fuels. I’ll run through that work in the next post. Turning this challenging radiation into usable energy is conceivably a possibility, but requires fuel other than the deuterium/tritium combination examined for the DFD-CM drive. Bone’s choice is intriguing, to say the least, but more about this next time.

Infrastructure and the Interstellar Probe

The question of infrastructure haunts the quest to achieve interstellar flight. I’ve always believed that we will develop deep space capabilities not only for research and commerce but also as a means of defense, ensuring that we will be able to change the trajectories of potentially dangerous objects. But consider the recent Breakthrough Starshot discussion. There I noted that we might balance the images we could receive through Starshot’s sails with those we could produce through telescopes at the Sun’s gravitational focus.

Without the infrastructure issue, it would be a simple thing to go with JPL’s Solar Gravitational Lens concept since the target, somewhere around 600 AU, is so much closer, and could produce perhaps even better imagery. But let’s consider Starshot’s huge photon engine in the Atacama desert not as a one-shot enabler for Proxima Centauri, but as a practical tool that, once built, will allow all kinds of fast missions within the Solar System. The financial outlay supports Oort Cloud exploration, fast access to the heliopause and nearby interstellar space, and planetary missions of all kinds. Add atmospheric braking and we can consider it as a supply chain as well.

Robert Freeland, who has labored mightily in the Project Icarus Firefly design, told the Interstellar Research Group’s recent meeting in Montreal about work he is doing within the context of the British Interplanetary Society’s BIS SPACE project, whose goal is to consider the economic drivers, resources, transportation issues and future population growth that would drive an interplanetary economy. That Solar System-wide infrastructure in turn feeds interstellar capabilities, as it generates new technologies that funnel into propulsion concepts. A case in point: In-space fusion.

To make our engines go, we need fuel, an obvious point and a telling one, since the kind of fusion Freeland has been studying for the Firefly design is limited by our current inability to extract enough Helium-3 to use aboard an interstellar craft. Firefly would use Z-pinch fusion – this is a way of confining plasma and compressing it. An electrical current fed into the plasma generates the magnetic fields that ‘pinch,’ or compress the plasma, creating the high temperatures and pressures that can produce fusion.

I was glad to see Freeland’s slides on the fusion fuel possibilities, a helpful refresher. The easiest fusion reactions, if anything about fusion can be called ‘easy,’ is that of deuterium with tritium, with the caveat that this reaction produces most of its energies in neutrons that cannot produce thrust. Whereas the reaction of deuterium with helium-3 releases primarily charged particles that can be shaped into thrust, which is why it was D/He3 fusion that was chosen by the Daedalus team for their gigantic starship design back in the 1970s. Along with that choice came the need to find the helium-3 to fuel the craft. The Daedalus team, ever imaginative, contemplated mining the atmospheres of the gas giants, where He3 can be found in abundance.

The lack of He-3 caused Icarus to choose a pure deuterium fuel (DD). Freeland ran through the problems with DD, noting the abundance of produced neutrons and the gamma rays that result from shielding these fast neutrons. The reaction also produces so-called bremsstrahlung radiation, which emerges in the form of x-rays. Thus the Firefly design stripped down what would otherwise be a significant portion of its mass in shielding by going to what Freeland calls ‘distance shielding,’ meaning minimal structure that allows the radiation to escape into space.

A starship using deuterium and helium-3 minimizes the neutron radiation, so the question becomes, when do we close the gap in our space capabilities to the point that we can extract helium-3 in the quantities needed from planets like Uranus? I see BIS SPACE as seeking to probe what the Daedalus team described as a Solar System-wide economy, and to put some numbers to the question of when this capability would evolve. The question is given point in terms of interstellar probes because while Firefly had been conceived as a starship that could launch before 2100, it seemed likely that helium-3 simply wouldn’t be available in sufficient quantities. So when would it be?

To create an infrastructure off-planet, we’ll need human migration outward, beginning most likely with orbital habitats not far from Earth – think of the orbital environments conceived by Gerard O’Neill, with their access to the abundant resources of the inner system. Freeland imagines future population growth moving further out over the course of the next 20,000 years until the Solar System is fully exploited. In four waves of expansion, he sees the era of chemical and ion rocketry, and perhaps beamed propulsion, to about 2050, with the second generation largely using fission-powered craft, in a phase ending in about 2200. 2200 to 2500 taps fusion energies (DD), while the entire Solar System is populated after 2500, with mining of the gas giants possible.

Let’s pause for a moment on the human population’s growth, because the trends noted in the image below, although widely circulated, seem not to be widely known. We’re looking here at the growth rate of our species and its acceleration followed by its long decline. As Freeland pointed out, the UN expects world population to peak at between 10 and 12 billion perhaps before the end of this century. After that, increase in the population is by no means assured. So much for the scenario that we have to go off-planet because we will simply overwhelm resources here with our numbers.

Image: In both this and the image below I am drawing from Freeland’s slides.

You would think this Malthusian notion would have long ago been discredited, but it is surprisingly robust. Even so, orbital habitats near Earth can potentially re-create basic Earth-like conditions while exploiting material resources in great abundance and solar power, with easy access to space for moving the wave of innovation further out. BIS SPACE looks with renewed interest at these O’Neill habitats in its first wave of papers.

The larger scenario plays out as follows: In the second half of our century, we move development largely to high Earth orbit, with materials drawn mostly from the Moon, using transport of goods by nuclear-powered cargo ships. The third generation creates orbital habitats at all the inner planets (and Ceres) and perhaps near-Earth asteroids using DD fusion propulsion, while the fourth generation takes in the outer planets and their moons. At this point we can set up the kind of aerostat mining rigs in the upper gas giant atmospheres that would enable the collection of helium-3. Here again we have to make comparisons with other technologies. Where will beamed spacecraft capabilities be by the time we are actively mining He-3 in the outer Solar System?

I’ve simplified the details on expansion greatly, and send you to Freeland’s slides for the details. But I want to circle back to Firefly. Using DD fusion, Firefly’s radiator and coolant requirements are extreme (480 tonnes of beryllium coolant!) But move to the deuterium/helium-3 reaction and you drop radiation output by 75 percent while increasing exhaust velocity. Beryllium can be replaced with less expensive aluminum and the physical size of the vessel is greatly reduced. This version of Firefly gets to Alpha Centauri in the same time using 1/5th the fuel and 1/12th the coolant.

In other words, the sooner we can build the infrastructure allowing us to mine the critical helium-3, the sooner we can drop the costs of interstellar missions and expand their capabilities using fusion engines. If such a scenario plays out, it will be fascinating to see how the population growth curves for the entire Solar System track given access to abundant new resources and the technologies to exploit them. If we can imagine a Solar System-wide human population in the range of 100 billion, we can also imagine the growth of new propulsion concepts to power colonization outside the system.

Reflections on Breakthrough Starshot

If we’re going to get to the stars, the path along the way has to go through an effort like Breakthrough Starshot. This is not to say that Breakthrough will achieve an interstellar mission, though its aspirational goal of reaching a nearby star like Proxima Centauri with a flight time of 20 years is one that takes the breath away. But aspirations are just that, and the point is, we need them no matter how far-fetched they seem to drive our ambition, sharpen our perspective and widen our analysis. Whether we achieve them in their initial formulation cannot be known until we try.

So let’s talk for a minute about what Starshot is and isn’t. It is not an attempt to use existing technologies to begin building a starship today. Yes, metal is being bent, but in laboratory experiments and simulated environments. No, rather than a construction project, Starshot is about clarifying where we are now, and projecting where we can expect to be within a reasonable time frame. In its early stages, it is about identifying the science issues that would enable us to use laser beaming to light up a sail and push it toward another star with prospects of a solid data return. Starshot’s Harry Atwater (Caltech) told the Interstellar Research Group in Montreal that it is about development and definition. Develop the physics, define and grow the design concepts, and nurture a scientific community. These are the necessary and current preliminaries.

Image: The cover image of a Starshot paper illustrating Harry Atwater’s “Materials Challenges for the Starshot Lightsail,” Nature Materials 17 (2018), 861-867.

We’re talking about what could be a decades-long effort here, one that has already achieved a singular advance in interstellar studies. I don’t have the current count on how many papers have been spawned by this effort, but we can contrast the ongoing work of Starshot’s technical teams with where interstellar studies was just 25 years ago, when few scientific conferences dealt with interstellar ideas and exoplanets were still a field in their infancy. In terms of bringing focus to the issue, Starshot is sui generis.

It is also an organic effort. Starshot will assess its development as it goes, and the more feasible its answers, the more it will grow. I think that learning more about sail possibilities will spawn renewed effort in other areas, and I see the recent growth of fusion rocketry concepts as a demonstration that our field is attaining critical mass not only in the research labs and academy but in commercial space ventures as well.

So let’s add to Atwater’s statement that Starshot is also a cultural phenomenon. Although its technical meetings are anything but media fodder, their quiet work keeps the idea of an interstellar crossing in the public mind as a kind of background musical riff. Yes, we’re thinking about this. We’ve got ideas and lab experiments that point to new directions. We’re learning things about lightsails and beaming we didn’t know before. And yes, it’s a big universe, with approximately one planet per star on average, and we’ve got one outstanding example of a habitable zone planet right next door.

So might Starshot’s proponents say to themselves, although I have no idea how many of those participating in the effort back out sometimes to see that broader picture (I suspect quite a few, based on those I know, but I can’t speak for everyone). But because Starshot has not sought the kind of publicity that our media-crazed age demands, I want to send you to Atwater’s video presentation at Montreal to get caught up on where things stand. I doubt we’re ever going to fly the mission Starshot originally conceived because of cost and sheer scale, but I’m only an outsider looking in. I do think that when the first interstellar mission flies, it will draw heavily on Starshot’s work. And this will be true no matter what final choices emerge as to propulsion.

This is a highly technical talk compressed into an all too short 40 minutes, but let’s just go deep on one aspect of it, the discussion of the lightsail that would be accelerated to 20 percent of lightspeed for the interstellar crossing. Atwater’s charts are worth seeing, especially the background on what the sail team’s meetings have produced in terms of their work on sail materials and, especially, sail shape and stability. The sail is a structure approximately 4 meters in diameter, with a communications aperture 1 meter in size, as seen in the center of the image (2 on the figure). Surrounding it on the circular surface are image sensors (6) and thin-film radioisotope power cells (5).

Maneuvering LEDs (4) provide attitude control, and thin-film magnetometers (7) are in the central disk, with power and data buses (8) also illustrated. A key component: A laser reflector layer positioned between the instruments that are located on the lightsail and the lightsail itself, which is formed as a silicon nitride metagrating. As Atwater covers early in his presentation, the metagrating is crucial for attitude control and beam-riding, keeping the sail from slipping off the beam even though it is flat. The layering is crucial in protecting the sailcraft instrumentation during the acceleration stage, when it is fully illuminated by the laser from the ground.

How to design lensless transmitters and imaging apertures? Atwater said that lensless color camera and steerable phased array communication apertures are being prototyped in the laboratory now using phased arrays with electrooptic materials. Working one-dimensional devices have emerged in this early work for beam steering and electronic focusing of beams. The laser reflector layer offers the requisite high reflectivity at the laser wavelength being considered, using a hybrid design with silicon nitride and molybdenum disulfide to minimize absorption that would heat the sail.

I won’t walk us through all of the Starshot design concepts at this kind of detail, but rather send you to Atwater’s presentation, which shows the beam-riding lightsail structure and its current laboratory iterations. The discussion of power sources is particularly interesting given the thin-film lightweight structures involved, and as shown in the image below, it involves radioisotope thermoelectric generators actually integrated into the sail surface. Thin film batteries and fuel cells were considered by Breakthrough’s power working group but rejected in favor of this RTG design.

So much is going on here in terms of the selection of sail materials and the analysis of its shape, but I’ll also send you to Atwater’s presentation with a recommendation to linger over his discussion of the photon engine, that vast installation needed to produce the beam that would make the interstellar mission happen. The concept in its entirety is breathtaking. The photon engine is currently envisioned as an array of 1,767,146 panels consisting of 706,858,400 individual tiles (Atwater dryly described this as “a large number of tiles”), producing the 200 gW output and covering 3 kilometers on the ground. The communications problem for data return is managed by scalable large-area ground receiver arrays, another area where Breakthrough is examining cost trends that within the decades contemplated for the project will drive component expenses sharply down. The project depends upon these economic outcomes.

Image: What we would see if we had a Starshot-class sailcraft approaching the Earth, from the image at two hours away to within five minutes of its approach. Credit for this and the two earlier images: Harry Atwater/Breakthrough Starshot.

Using a laser-beamed sail technology to reach the nearest stars may be the fastest way to get images like those above. The prospect of studying a planet like Proxima b at this level of detail is enticing, but how far can we count on economic projections to bring costs down to the even remotely foreseeable range? We also have to factor in the possibility of getting still better images from a mission to the solar gravitational lens (much closer) of the kind currently being developed at the Jet Propulsion Laboratory.

Economic feasibility is inescapably part of the Starshot project, and is clearly one of the fundamental issues it was designed to address. I return to my initial point. Identifying the principles involved and defining the best concepts to drive design both now and in the future is the work of a growing scientific community, which the Starshot effort continues to energize. That in itself is no small achievement.

It is, in fact, a key building block in the scientific edifice that will define the best options for achieving the interstellar dream. And while this is not the place to go into the complexities of scientific funding, suffice it to say that putting out the cash to enable these continuing studies is a catalytic gift to a field that has always struggled for traction both financial and philosophical. The Starshot initiative has a foundational role in defining the best technologies for interstellar flight that will lead one day to its realization.
