Pluto and How We See It

As I did after yesterday’s post, I occasionally get requests for pictures of objects in natural color, as opposed to significantly enhanced images (at various wavelengths) designed to tease out structure or detail. Here are Pluto and Charon as seen by New Horizons’ LORRI (Long Range Reconnaissance Imager), with color data supplied by the Ralph instrument. The images in this composite are from July 13 and 14 and according to JHU/APL, “…portray Pluto and Charon as an observer riding on the spacecraft would see them.”

nh-pluto-charon-natural-color

For those interested, Jenna Garrett wrote a fine piece for WiReD last summer called What We’re Really Looking at When We Look at Pluto that goes into the instrumentation aboard New Horizons and discusses the philosophical issues separating what we see from what is really there. Let me quote briefly from this:

It’s not hard for a photographer to understand why you’d question actually seeing Pluto—the same question has nagged photographers since Nicéphore Niépce made View from the Window at Le Gras in 1826. A camera is a simple machine: A lens and a shutter that allows the passage of light, which hits the chemical emulsion of film or the pixels of a digital sensor. That intervening technology takes photons bouncing off an object and interpolates them into data. More technology turns that data into an image. And still more technology disseminates that image so you might see it.

I don’t want to get too far into philosophy, but just for fun, here’s the Niépce image.

niepce_old_large

Image: The first recorded photograph, taken from a window in his study by Joseph Nicéphore Niépce. For more, visit this University of Texas site.

It’s always good to ask how images are processed, especially when dealing with data being returned from the edge of the Solar system through a number of instruments. New Horizons carries three imagers: The aforementioned LORRI and Ralph, along with Alice, an ultraviolet imaging spectrometer. Ralph has ten times the resolution of the human eye, but we use data as needed from the instrument packages to ferret out what scientists are looking for.

I also like this quote by Jon Lomberg, a deeply felt ratification of New Horizons from Garrett’s piece:

“You don’t really have to understand a lot about astronomy to know how difficult this is,” says Lomberg. “Getting it there, having it work for nine years and having it do exactly what they’re telling it to do. You just want to applaud. It makes everybody think Goddamn! that was a good thing to do!

I’m sure that most of the Centauri Dreams audience is with Jon on that sentiment. But let’s move on to further news about Pluto from the Division of Planetary Sciences meeting in Maryland. In analyzing the New Horizons data, we learn that Pluto’s upper atmosphere is a good deal more compact and significantly colder than we had thought based upon earlier models. Pluto’s atmosphere seems to escape more or less the same way that atmospheric gases do on Earth or Mars, rather than acting as we would expect from a cometary body. Here is the already famous image that showed us ‘blue skies’ (of a sort) on Pluto.

blue_skies_on_pluto-final-2

Image: Pluto’s haze layer shows its blue color in this picture taken by the New Horizons Ralph/Multispectral Visible Imaging Camera (MVIC). The high-altitude haze is thought to be similar in nature to that seen at Saturn’s moon Titan. The source of both hazes likely involves sunlight-initiated chemical reactions of nitrogen and methane, leading to relatively small, soot-like particles (called tholins) that grow as they settle toward the surface. This image was generated by software that combines information from blue, red and near-infrared images to replicate the color a human eye would perceive as closely as possible. Credits: NASA/JHUAPL/SwRI.

Here again we’re aiming at something close to what the human eye would perceive.

We also learned at DPS that Pluto’s moons are unlike anything we’re familiar with in the rest of the Solar System. Most inner moons in the Solar System (including ours) move in synchronous rotation, with one face always toward the planet. But the small moons of Pluto do nothing of the kind. Hydra rotates 89 times during a single circuit of Pluto, while the rest of the small moons rotate faster than we would expect as well. Have a look at the chart that Mark Showalter (SETI Institute) prepared for presentation at DPS.

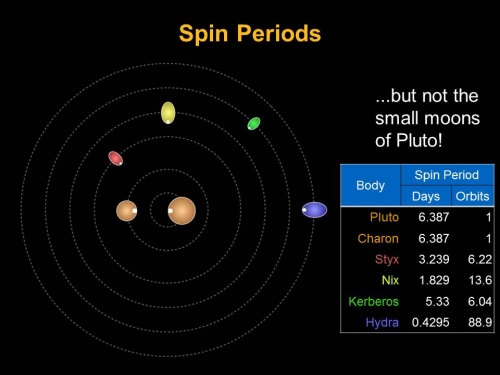

20151109_ShowalterSlide05

Image: Spin periods for the range of Pluto’s moons. Credit: NASA/Johns Hopkins University Applied Physics Laboratory/Southwest Research Institute.

We may well be looking at chaotic spin rates — variable over time — and likely the result of the torque Charon exerts, which would keep the moons from settling into synchronicity. Showalter characterized these wobbling moons as ‘spinning tops,’ and it also appears that several of them may have been formed by merger, with two or more former moons coming together following the event that created Charon. That would make sense — surely there were a large number of objects after a massive impact, with the present system having consolidated from these. Here’s the slick video illustrating the motion of these moons that NASA has produced.

I love Showalter’s take on all this in a SETI Institute news release: “There’s clearly something fundamental about the dynamics of the system that we do not understand. We expected chaos, but this is pandemonium.”

tzf_img_post

Comments on this entry are closed.

  • Dean Stell November 17, 2015, 9:38

    Thanks for the explanation of what Pluto would look like in natural color. Related to that, I’ve always wondered, “How bright would these objects be if I was riding on the spacecraft?” I mean, it’s way the heck out there from the sun, so it wouldn’t be brilliant like the moon. Would they be so dimly illuminated that a passenger would have to know where to look or else they wouldn’t be able to see that “dim” object or would they be reasonably bright and impossible to miss?

    What’s the limit that a spacecraft can actually image these sorts of dim objects? You can’t really put a flash on a probe to illuminate it. Or is this just a non-concern?

  • Michael November 17, 2015, 9:48

    Pluto, planet of the Easter eggs!

  • Paul Gilster November 17, 2015, 13:45

    Dean Stell writes:

    What’s the limit that a spacecraft can actually image these sorts of dim objects? You can’t really put a flash on a probe to illuminate it. Or is this just a non-concern?

    It’s a major issue, that’s for sure. But New Horizons is designed to allow for even the much lower light levels at 2014 MU69, assuming the extended mission is approved. There’s a good discussion on how the Voyager team adjusted for ever lower light levels during the outer planetary flybys in Jim Bell’s book The Interstellar Age (Dutton, 2015).

  • Charlie November 17, 2015, 13:59

    “Are the pictures of Pluto and Charon at the start of the article, are they the TRUE colors of those two moons or planets or whatever they call them now ? Could you post some pictures of the ACTUAL coloration of these particular bodies, please ?”

    That was my complaint yesterday and I’m glad that we got a picture of the objects in natural color. My only NEW COMPLAINT today is that the pictures are so at a great distance away that you can hardly see them. I was hoping for a CLOSE-UP picture of the planet in natural color. I guess you can’t have everything

  • Lord November 17, 2015, 14:02

    If a gas giant was scattered from the system, could Pluto be what was left behind?

  • Charlie November 17, 2015, 14:02

    “Image: The first recorded photograph, taken from a window in his study by Joseph Nicéphore Niépce. For more, visit this University of Texas site. ”

    I remember seeing that; I believe it was taken before the time of the Civil War. Interestingly enough, if I remember correctly, that wasn’t taken through the use of decomposing silver salts. Some other way in which the image was burned into the substrate was used. But for the life of me I can’t remember the details

  • ljk November 17, 2015, 14:23

    Not that this will do New Horizons any good, but when Walt Disney revealed plans for exploring the Moon in their 1955 program on the subject, they used rocket propelled flash bombs to illuminate the lunar regions in darkness for the observing astronauts in orbit.

    https://www.youtube.com/watch?v=1ZImSTxbglI

    I know, I just thought it was cool.

  • Matt McIrvin November 17, 2015, 21:22

    Would they be so dimly illuminated that a passenger would have to know where to look or else they wouldn’t be able to see that “dim” object or would they be reasonably bright and impossible to miss?

    The sunlight at Pluto is dim, but it’s much brighter than full moonlight on Earth and not that much dimmer than ordinary indoor lighting. (Think, maybe, a restaurant late in the evening with the lights turned romantically low.) The human eye can adapt to brightness levels over an amazing range of magnitudes. I don’t think you’d have much trouble seeing Pluto.

  • Mark Zambelli November 18, 2015, 12:36

    Thanks to the long evolution history of our Human Mark 1.0 eyeballs, Pluto would actually be easy to see… it’s just hard to image way out there.

    Rosetta has shown us a pitch-black 67P C-G we get the impression of a lump of coal… however we forget the HDR of our eyes with adaptation so in person, the comet would look perfectly bright enough with larges ranges of gray, from black to near white.

    When Voyager 2 was enroute to Uranus, the imaging team refered to capturing images of the moons and rings as like (I paraphrase without the text)… “Imaging the presents under your christmas tree in a dark room with only a single half-Watt fairy light on top.” Yes this was with Voyagers imaging tubes but it highlights how much ‘better’ our eyes are at handling reduced light levels. We evolved to see in near dark for survival… now we get to turns those organs on wonders our technology is exploring on our behalf.

    As an amateur astrophotographer, there are plenty of colour issues I have to combat to reveal a ‘near-as-possible’ image knowing all the while that our eyes would never (be able to) see the object like that (we’ve mentioned on these pages in the past just how dim galaxies would appear ‘on approach’ and nebula are the same… you would barely even know you were in the Orion Nebula for example which is a far cry from the sci fi backdrops used in films an TV).

    @ Charlie… if you want images then pop over to the New Horizons image archive. I’ll link to it in a fresh post (if I navigate away to get the URL my tablet will dump what I’ve written so far… like yesterday! grrrr)

  • Mark Zambelli November 18, 2015, 12:37

    @ Charlie… http://pluto.jhuapl.edu/Multimedia/Science-Photos/view.php?gallery_id=2 should help you find some Pluto imagery.
