Kepler: A New Look at False Positives

Oh to be in Hawaii for the Extreme Solar Systems III conference rather than simply following events on Twitter! The exoplanet community’s choice of venues for these gatherings is hard to beat, the first of them, in 2007, having occurred on Santorini, a storied island in the Aegean Sea southeast of the Greek mainland, with a 2011 follow-up in Jackson Hole, WY. If you haven’t been following events on Twitter (#ExSS3), you can at least check the full program with abstracts online, where you’ll see quite a few familiar names.

Alexandre Santerne’s session at ExSS3 is one I wish I could have sat in on yesterday. Leading an international team, Santerne (Instituto de Astrofísica e Ciências do Espaço, Portugal) has gone to work on Kepler detections of gas giants. You would think that planets of this size would be fairly straightforward detections, but it turns out that this is not the case. In fact, Santerne and team find that half of the giant exoplanet candidates are false positives.

To be specific, the group’s five-year radial velocity study of these candidate worlds using the SOPHIE spectrograph reveals that 52.3 percent are actually eclipsing binaries, while 2.3 percent are brown dwarfs. An eclipsing binary simply involves a binary star system aligned so that the larger star can eclipse the smaller and the smaller can transit the larger’s disk. Eclipsing binaries are a known issue in exoplanet detection but I don’t think anyone believed the false positive rate could be this high. Says Santerne:

“It was thought that the reliability of the Kepler exoplanets detection was very good – between 10 and 20% of them were not planets. Our extensive spectroscopic survey, of the largest exoplanets discovered by Kepler, shows that this percentage is much higher, even above 50%. This has strong implications in our understanding of the exoplanet population in the Kepler field.”

2015Dez02_1

Image: This artist’s view shows the hot Jupiter exoplanet 51 Pegasi b, which orbits a star about 50 light-years from Earth in the constellation of Pegasus. This was the first exoplanet around a normal star to be found, in 1995. Twenty years later this object was also the first exoplanet to be be directly detected spectroscopically in visible light. Credit: ESO/M. Kornmesser/Nick Risinger (skysurvey.org).

The research reduced the 8826 objects on the list of Kepler objects of interest (KOI) down to 129 KOIs by removing known false positives, candidates with orbits of more than 400 days (where fewer than three transits could be observed) and stars that the SOPHIE instrument found too faint to work with. Installed on the 1.93 meter telescope of the Observatory of Haute-Provence, SOPHIE (Spectrographe pour l’Observation des Phénomènes des Intérieurs stellaires et des Exoplanètes) is capable of measuring radial velocities of 2 meters per second.

With a hard 129 KOIs chosen as its defined sample, the team then went to work on the remnant. These KOIs all showed a transit depth between 0.4% and 3% and a period of up to 400 days. The method was to perform a radial velocity follow-up on these candidates using SOPHIE during six observing seasons. The paper describes the result:

…we found that 45 bona-fide planets (30 already known and 15 new ones characterised by our team), 3 sub-stellar companions that are likely brown dwarfs, 63 multiple stellar systems… out of which 48 are eclipsing binaries and 15 are more complex stellar systems. Finally, for 18 objects, we rejected that they are grazing EBs or brown dwarfs, but we could not establish their planetary nature. For these, we were able to put an upper-limit on their mass.

The false positive rate turns out to be significantly higher than previous values, and the paper argues that the absolute number of false positives is expected to grow as we look at planet candidates with a smaller radius. It’s interesting to see in the results that the occurrence rate of ‘hot Jupiters’ is lower by a factor of 2 compared with other surveys. This lower occurrence rate is not found for gas giants with orbital periods longer than 85 days, leading the authors to speculate that there may be mechanisms of ‘hot Jupiter’ formation specific only to them.

2015Dez02_2

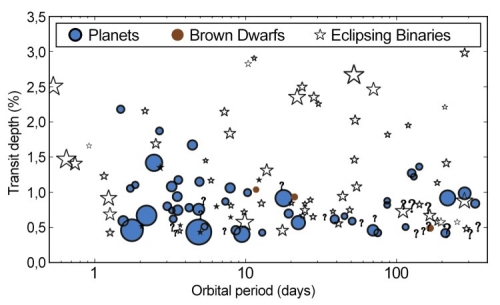

Image: Selected population of planet candidates detected by the Kepler Space Telescope. Their transit depth is displayed here as a function of their orbital period. The size of the marker is relative to the magnitude of the host. Credit: Santerne et al.

We always knew that finding exoplanets, much less characterizing them, was an exceedingly fine-grained task, but these results tell us that even the largest planets, and presumably the easiest to detect, present their own set of problems. The importance of radial velocity follow-ups is clear given the numerous sources of noise in the data. The paper goes on to discuss what may be a connection between the density of moderately irradiated giant planets and the metallicity of their host stars, but the authors say that the correlation needs to be confirmed with more planets in this category.

The paper is Santerne et al., “SOPHIE velocimetry of Kepler transit candidates XVII. The physical properties of giant exoplanets within 400 days of period,” accepted at Astronomy & Astrophysics (preprint).

tzf_img_post

Comments on this entry are closed.

  • RobFlores December 3, 2015, 13:19

    The unexpected limits of the Kepler mission, continue to frustrate.

    Not so wise to cancel the Terrestrial Planet Finder mission.
    Would gladly trade the Mars Rover Curiosity mission. (travelling along terrain about as interesting as driving from LA to Vegas) for the TPF.

  • Andrew LePage December 3, 2015, 14:02

    While I can hardly claim to have read every single peer-reviewed paper over the past few years about all of Kepler’s discoveries, I have managed to read quite a few. Having said that, I really find this result by Santerne et al. to be difficult to accept since it seems to be at odds with everything I have read on this subject of vetting KOIs for false positives. I will be really interested to see how the Kepler science community responds to this paper and how it might affect already published statistical analyses of Kepler’s finds.

  • Black SciFi December 4, 2015, 2:32

    @Andrew LePage,

    While another dedicated exoplanet mission vehicle would be ideal, I have high hopes that cooperation between the current missions will allow them to re-task if anything really novel pops up.

  • Frank Smith December 4, 2015, 9:22

    I wonder if this paper <a http://www.spacedaily.com/reports/Researchers_question_results_from_the_study_of_pulsating_stars_999.html will also affect exoplanet results.

    CalTech’s “cool wiki” specifically mentions exoplanets in its explanation of periodograms.

  • Harry R Ray December 4, 2015, 10:28

    What’s if there were a way for an alien civilization to place a shield just inside the orbit of that of a one earth mass planet in a short orbital period so that the tidal friction of the planet exhibits a drag on the shield keeping it in place so that it is ALWAYS between the planet and the star, AND; blocks ALMOST ALL of star’s radiation, rendering the planet habitable. How big would that shield have to be? If this IS doable, I would STRONGLY recommend a follow-up campaign with HARPS North on ALL of these false positives, especially if there is an ESPPRESSO-like instrument installed there in the near future! Immagine the headlines if a Jupiter or Saturn radius planet candidate were found to have ONLY ONE EARTH MASS!

  • pochimax December 4, 2015, 11:56

    The KOIs studied by SOPHIE are in a photometric range of Kp=13.5 to 14.7. It is very likely that the ratio of false positives would increase in comparison with bright targets, with Kp better than 12.5.

    SOPHIE usually study targets not so bright, because this kind of KOIs are not directly studied by the Kepler team, leaving them for the rest of the astronomer community.

    It is very important to take into account brightness of star candidates in order to understand the false positive ratio of every photometric bin. You can’ t directly translate the SOPHIE result to bright targets, neither the other way around.

  • spaceman December 4, 2015, 12:30

    Yes, it will be interesting to see how the Kepler science team responds to this new work on false positives. In the the Saterne paper it said that although the absolute number of false positives may increase for smaller radii, the false positive rate for these smaller candidates as a whole might not increase.

  • Alex Tolley December 4, 2015, 13:42

    I find it interesting that so many of the false positives are eclipsing binaries with such close orbits. Are these very close binaries very common.

    The preponderance of brown dwarfs is interesting. We might speculate that these objects might provide warm habitats for life, especially technological life living in floating or orbiting structures. Do BDs offer an alternative to Dyson Spheres/Swarms for ETIs?

  • andy December 4, 2015, 13:47

    Talking of false positives, today’s arXiv brings another chapter in the saga of the increasingly infamous Gliese 581 system.

    Artie P. Hatzes (arXiv:1512.00878 [astro-ph.SR]), “Periodic Hα variations in GL 581: Further evidence for an activity origin to GL 581d

  • Michael December 5, 2015, 10:33

    @Alex Tolley December 4, 2015 at 13:42

    ‘The preponderance of brown dwarfs is interesting. We might speculate that these objects might provide warm habitats for life, especially technological life living in floating or orbiting structures. Do BDs offer an alternative to Dyson Spheres/Swarms for ETIs?’

    The gravities of BD’s are not for the faint hearted and any gas would more likely have the density of lead!

  • Laszlo Molnar December 5, 2015, 10:53

    “the paper argues that the absolute number of false positives is expected to grow as we look at planet candidates with a smaller radius. ”

    Which sounds very worrying. But is it? Actually, the paper argues that:

    “the false-positive rate is defined as the relative fraction of false positives against bona-fide planets among the candidates.
    Thus, decreasing the transit depth of the candidates corresponds to explore smaller planet populations that are more common […] Therefore, even if the absolute number of false positive increases by decreasing the transit depths, the relative value (i.e the false positive rate) might not necessarily increase.”

    “about one third of the candidates smaller than Jupiter are found in multiple systems, in agreement with the first
    results of RV surveys Furthermore, those multiple candidates have a very low a priori probability of being false positives. Therefore, our predicted increase of false positives towardssmall planet candidates should be mostly concentrated on
    the candidates that are not in multiple systems.”
