The 1000 AU Target

One reason I wanted to run yesterday’s article about the Opher et al. paper on the heliosphere, aside from its innate scientific interest (and it is a very solid, well crafted piece of work) is to illustrate how much we still have to learn about the balloon-like bubble carved out by the solar wind. The entire Solar System fits within it easily, but we observe only from inside and have little knowledge of its structure. None of the paper’s authors would argue that we have the definitive answer on the shape of the heliosphere. That will take a good deal more data, as the paper notes:

Future remote-sensing and in situ measurements will be able to test the reality of a rounder heliosphere. In Fig. 6, we show our prediction for the interstellar magnetic field ahead of the heliosphere at V2. In addition, future missions such as the Interstellar Mapping and Acceleration Probe will return ENA [energetic neutral atom] maps at higher energies than present missions and so will be able to explore ENAs coming from deep into the heliospheric tail. Thus, further exploration of the global structure of the heliosphere will be forthcoming and will put our model to the test.

We’ll learn more from the Voyagers, in other words, as well as from IMAP (more about this one in a later article), New Horizons, and whatever probe we next send out to system’s edge. Our two Voyager spacecraft may well last another seven years, which would give them 50 years of data return since their launch in 1977.

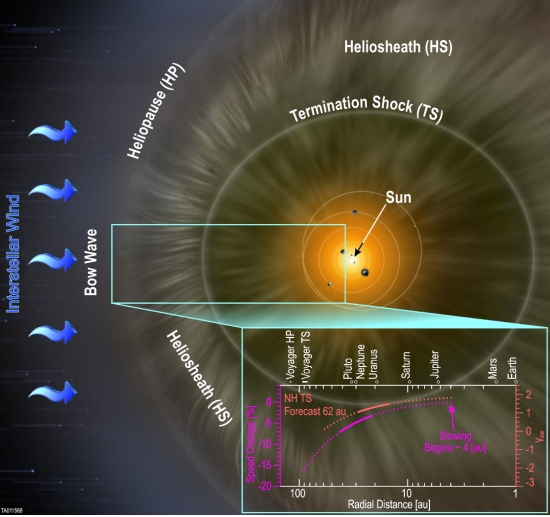

Image: And here’s something we’ve learned from New Horizons. The SWAP instrument aboard the spacecraft has confirmed that the solar wind slows as it travels farther from the Sun. This schematic of the heliosphere shows the solar wind begins slowing at approximately 4 AU radial distance from the Sun and continues to slow as it moves toward the outer solar system and picks up interstellar material. Current extrapolations reveal the termination shock may currently be closer than found by the Voyager spacecraft. However, increasing solar activity will soon expand the heliosphere and push the termination shock farther out, possibly to the 84-94 AU range encountered by the Voyager spacecraft. Credit: Southwest Research Institute; background artist rendering by NASA and Adler Planetarium.

The interstellar probe NASA has been contemplating, under study at various centers but most visibly at the Johns Hopkins Applied Physics Laboratory (APL) would, unlike Voyager, be built from the start with a 50 year goal in mind. Voyager 1 is now about 141 AU from Earth (21.2 billion kilometers). Interstellar Probe (APL capitalizes its design) would go for 1000 AU, but at much improved speeds, reaching the distance in 50 years.

How to do this? For one thing, achieve a boost from one of the huge rockets now coming onto the market, perhaps NASA’s own Space Launch System (SLS), or a commercial entry from a private company, perhaps SpaceX or Blue Origin. We’re not talking about launching until 2030, and that’s assuming the mission gets the green light in the upcoming heliophysics decadal survey, which will put in place missions related to the Sun over a ten year period.

A gravity assist at Jupiter added on to its kick from a massive booster would put us in familiar territory, given Jupiter’s history of flinging spacecraft like Voyager and New Horizons on their way, but a solar gravity assist is also contemplated, one that would take Interstellar Probe a good deal closer to the Sun than the Parker Solar Probe. You’d think closer is better, but at this stage in our technology, the perihelion numbers will be decided by factoring the weight of the required heat shielding. A balancing act ensues to get the most bang for the buck.

Exactly which instruments would fly on this modern era Voyager Plus would depend upon how instrument packages can be combined to save mass while maximizing power and data rates on the communications side. If you have a look at the APL page devoted to Interstellar Probe, you’ll see a notional payload, meaning this is what we’d like to cover with an ideal probe. The instrumentation includes:

A particle and fields suite for exploring the interstellar medium and its interaction with the heliosphere, with detectors such as:

  • energetic neutral atom (ENA) camera
  • energetic particles/cosmic rays
  • solar /interstellar plasma and neutral wind
  • vector helium magnetometer
  • plasma wave

Beyond the particle and fields instrumentation, the probe should include:

  • Optical cameras for flyby imaging and astrometry
  • A suite to measure dust and its basic composition
  • Infrared cameras for obtaining the 3D distribution of dust beyond our planetary neighborhood

We know that Voyager 1 and 2 have both left the heliosphere, Voyager 1 in August of 2012 and Voyager 2 in November of 2018, the two craft on widely divergent trajectories (recall Voyager 1’s dogleg at Saturn to get a look at Titan, whereas Voyager 2 moved on for close passes at Uranus and Neptune). Yesterday’s paper offered a new proposal for the shape of the heliosphere which is rather interesting in this regard. If the heliosphere really is more circular, lacking that presumed cometary ‘tail,’ then getting outside it won’t necessarily be determined by what would have been considered the shortest route, avoiding a tail that was estimated to trail thousands of AU. Here astrophysics and engineering work together in the choice of optimum trajectories.

Yesterday we looked at the need to get beyond the heliosphere so we could study its structure and gain insights into other planetary systems. But there are other reasons that take us much farther afield. It’s worth remembering that within the heliosphere, we have to contend with the foreground infrared radiation from dust within the Solar System, known as the zodiacal cloud. Going beyond the heliosphere opens up the possibility of studying diffuse infrared radiation from other stars and galaxies that has been effectively blocked for us by that cloud.

We also get a look at the nature of the dust disk, one that we can observe around other stars but are unable to measure in terms of large-scale structure from within our own. Learning how the Sun affects the structure of the heliosphere will help us understand the dynamics of other stellar systems, and the data a probe like this will take will be crucial at defining the local interstellar medium, through which our much longer-range probes will eventually move.

Needless to say, a great deal of science can be accomplished along the way. Interstellar Probe would reach the Kuiper belt in a scant four years, where flybys of KBOs and long-range observation of the environment there would complement and extend what we are learning from New Horizons. The APL trade study is designed to craft “a realistic mission architecture that includes available (or soon-to-be available) launch vehicles, kick stages, operations concepts and reliability standards.” All of this produces the reference materials that will be needed for the science and technology definition team that will turn aspirations into hard designs.

We should always be thinking about the kinds of mission that might one day fly, the long-range improvements that can enable them, and the audacious targets we someday want to reach. But as we draw up these conjectures and think about eventually engineering them, we also must be thinking about the kind of missions that can fly today. An interstellar probe of the kind now under study at APL and other NASA centers was a part of the discussion for the last decadal survey, but only now are we reaching a technological level to make 1000 AU in 50 years possible.

We need these early steps to make the broader strides that will occur later, on a path toward a Solar System infrastructure that will eventually support probes into the Oort Cloud and one day beyond. So tracking the fortunes of Interstellar Probe will be a priority for Centauri Dreams in coming months.


Comments on this entry are closed.

  • Ron S. March 24, 2020, 14:58

    “Interstellar Probe (APL capitalizes its design) would go for 1000 AU, but at much improved speeds, reaching the distance in 50 years.”

    I see that the APL site is a little bit lean on detail at the moment. However this objective requires a launch velocity well over 100 km/s with a payload that includes all those experiments, nuclear electricity generator and large communication power and dish. That’s a tall order without significant breakthroughs of some kind and those cannot be scheduled.

    • Ashley Baldwin March 28, 2020, 11:35

      More detail ? The APL team published a recent comprehensive update in “Acta Astronautica ” – Full free text :

      ‘Near-term interstellar probe: First step’ , McNutt et al , Sept 2019

  • Dave Moore March 24, 2020, 16:01

    I have a few quick thoughts about this probe. It would seem to me that the best approach to propulsion would be a modest nuclear reactor (50-100 Kw) with an ion drive rather than stacks of chemical rocketry.

    The Astrometry could be really important for getting a very accurate distance measurement of nearby Cepheid variables. These are the basis for measuring the size of the Universe, and a really accurate measurement would help in refining the various Cosmological theories.

    Also, don’t forget gravitational lensing. Even if no specific observations are possible, proving out the concept would be very useful.

    • Andrei March 24, 2020, 17:52

      This is obviously a new proposal of TAU, but it is good.
      I agree with Dave Moore, NEP seem the most promising way to go.
      If it use the letters AEPS, NEXT, LiLFA, DUFF (beer) or KRUSTY (clown) can be decided later.
      Even if the reactor plus coolant system weight in at several hundred of kilos it’s still a weight saver compared to several tens of tons of upper stage conventional fuel. Yet the probe need power, both for systems, perhaps warming of some components instead of nuclear heaters as on the rovers.
      As a benefit then could have a powerful transmitter and save a bit mass on the dish by making the dish a part of the excess heat radiator.

  • Michael Fidler March 25, 2020, 10:22

    Laser communication would make for a much smaller and less energy intensive device. One instrument that could make many discoveries is a compact metalens microscope and an electron microscope. This in order to look closely at the dust that the craft encounters and the possibility of panspermia {viruses}. The Heliosphere may act as barrier to such material whereas interstellar space may have huge quantities of viruses. The long period comets and interstellar comets would be in this deep freeze for long periods before coming close to our sun and may bring in new types.

    Dr. Chandra Wickramasinghe makes a case for dust protecting microorganisms and viruses in space. When the earth was forming in the dust clouds of the infant solar system huge amounts of this material was brought in from comets. This is how life originated on earth from the cometary goo of small organisms and viruses.

    So imaging and chemical analysis of the dust and other material in the Heliosphere and beyond to interstellar space may help find where we originated from and just how common life may be in the universe.


    • Antonio March 25, 2020, 14:04

      Laser pointing would be very difficult at those distances. You would need a decent telescope to point the laser to Earth, but that would be too heavy for this kind of mission.

    • Antonio March 25, 2020, 14:30

      Adding to my previous reply, Earth at 1000 AU would have a diameter of 55 mas. Using Dawe’s limit formula, you would need a telescope of at least 2 meters only to know where to point the laser.

      • Michael Fidler March 25, 2020, 22:34

        There is an upgrade to the Australian tracking and communication radio telescope that include a optical mirror inside the radio dish. This would mean the spacecraft would need a similar setup to align the mirror for the laser. We would still have a large radio dish but the laser and small mirror would increase the data rate.

        • Antonio March 26, 2020, 9:59

          A radio dish in the probe doesn’t solve the problem. You would need a really huge radio dish to resolve the 55 mas of Earth (around 4,000 km diameter if I’m not mistaken in the computation).

        • Michael Fidler March 26, 2020, 10:01

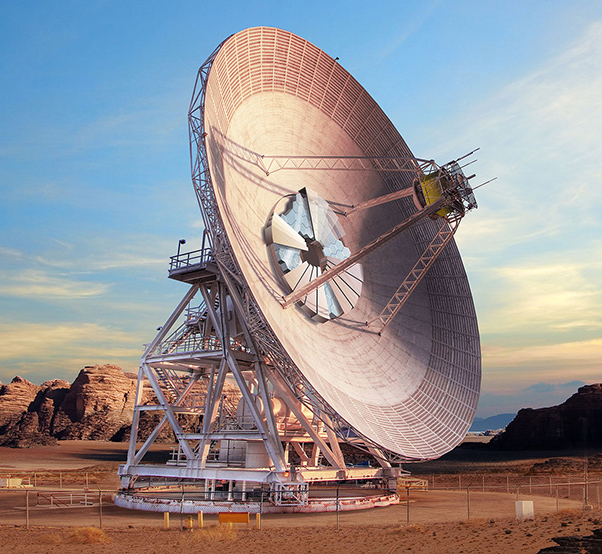

          NASA prepares for Moon, Mars with new addition to Deep Space Network.
