IBEX: Viewing the Edge of the Solar System

Interstellar Boundary Explorer (IBEX) may be the perfect name for the mission to be launched on Sunday the 19th, but the word ‘interstellar’ has some people thinking this is a precursor mission, headed out for deep space in the fashion of the Voyagers or New Horizons. Nothing could be further from the truth. IBEX is destined for a sedate though distant orbit reaching 240,000 kilometers above the Earth. Its instruments are the interstellar component, enabling the spacecraft to study the ever-changing boundary between the heliosphere and the true interstellar medium.

Two Energetic Neutral Atom cameras are the operative tools, capable of detecting atoms emitted from this distant region. This is a fascinating mission for interstellar advocates, for we’re looking at the effect of the solar wind as it collides with the cloud of interstellar materials through which the Earth moves. The shock wave that occurs where the solar wind meets the edge of the ‘bubble’ of materials streaming out from the Sun is what the spacecraft will study.

“These atoms represent the sound of the shock, and they are barely audible. We will only measure a few thousand atoms each day, so we had to make a jumbo camera. Only our camera
detects atoms instead of light,” said Herb Funsten, Los Alamos’s principal investigator on the instrument. “Every six months we will make global sky maps of where these atoms come from and how fast they are traveling. From this information, we will be able to discover what the edge of our bubble looks like and learn about the properties of the interstellar cloud that lies beyond the bubble.”

The solar wind, of course, plays into propulsion concepts that might one day harness its 1.6 million kilometer per hour flow to push deep into the Solar System and beyond, using magsail or other technology. Recent studies using data from the Ulysses spacecraft have shown that the solar wind has diminished markedly and is in fact lower than in any previous measurements. That has implications for galactic cosmic rays, the energetic particles from outside the Solar System that create potential health risks for astronauts moving beyond Earth orbit.

A diminished solar wind may weaken the heliosphere, allowing more galactic cosmic rays into the inner system. And variations in wind strength are obviously critical for futuristic designs that would attempt to use solar wind energies for controllable propulsion.

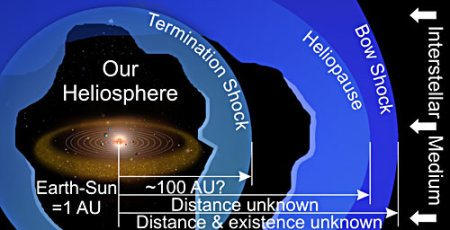

Image: This image shows the known and unknown distances between our heliosphere, the termination shock, heliopause and bow shock. The termination shock creates a sphere around our solar system. It is located about 100 AU away from the Sun. Solar wind particles begin to interact with the interstellar medium (ISM) here. The outward movement of the solar wind creates pressure, much as air filling a balloon creates pressure on the outside of the balloon, causing it to expand. The interstellar medium also has its own pressure of moving plasma. The point where the pressure of the solar wind is equal to the pressure of the interstellar medium hitting the solar wind is called the heliopause. A particle directly at the heliopause will feel equal pressure from both the solar wind and the interstellar medium. The outermost layer, called the bow shock, is where the ISM first interacts with the solar wind. Credit: NASA/IBEX.

The Voyager spacecraft have already sketched in early information about the heliosphere, with Voyager 1 evidently crossing the termination shock in 2004 at a distance of 94 AU. That event was flagged by simultaneous increases in the intensity of energetic particles and magnetic field strength, but the failure of Voyager 1’s plasma detector made it impossible to gauge the velocity of the solar wind after crossing the shock. It may be up to Voyager 2, itself now approaching the termination shock, to provide the needed measurements of the plasma’s velocity.

What IBEX brings to the table is the potential for creating large-scale maps of the solar wind’s boundary with interstellar space, complementing what the Voyagers have done with their useful but necessarily limited spot measurements. Launch will be via a Pegasus XL rocket dropped from an Orbital Sciences L-1011 aircraft about 125 miles north of Kwajalein Atoll, in the Marshall Islands. The launch window opens at 1748 UTC (1348 EDT), with live coverage (no TV) to be provided via webcast available here. Streaming video and audio will begin at 1615 UTC (1215 EDT) and will conclude some twelve minutes after launch.

Comments on this entry are closed.

  • Erik Anderson October 18, 2008, 15:49

    The image is not quite right. The fat arrows at the far right should not be aligned with the plane of the solar system but inclined steeply (53 degrees — towards the solar apex in the constellation Hercules).

  • ljk November 13, 2008, 0:32

    IBEX spacecraft reaches orbit, begins instrument commissioning

    November 12, 2008 — San Antonio — Just over three weeks since its
    Oct. 19 launch, NASA’s Interstellar Boundary Explorer (IBEX)
    spacecraft — the first mission designed to image the interaction at
    the edge of the solar system — concluded its orbit-raising phase and
    is beginning instrument commissioning in preparation to start science
    observations.

    After its launch to low Earth orbit (about 140 miles) onboard a
    Pegasus rocket, the spacecraft used its own solid rocket motor and
    hydrazine propulsion system to perform a series of burns that
    ultimately raised its apogee (furthest point from Earth) to about
    200,000 miles and its perigee (closest point) to about 8,000 miles
    above the Earth — an orbit ideal for its science mission.

    “Because the orbit goes so far out — about five-sixths of the way to
    the Moon — it gets pushed around significantly by lunar gravity and
    evolves over time in altitude and inclination,” said IBEX Principal
    Investigator Dr. David McComas, senior executive director of the Space
    Science and Engineering Division at Southwest Research Institute.
    “We’re now in an orbit that provides excellent science viewing and no
    long eclipses for at least the next two to three years, without the
    need for additional burn maneuvers.”

    Before the science investigation begins, the IBEX team will commission
    those spacecraft subsystems that weren’t needed for the orbit-raising
    period as well as the two IBEX science instruments. During
    commissioning, the spacecraft spin rate will be reduced from 23 rpm to
    4 rpm and pointed toward the Sun. At that point, the remaining
    subsystems and instruments will be turned on and tuned to ensure
    optimum mission performance.

    When it begins its science observations in early December, IBEX will
    use energetic neutral atom imaging to create the first-ever all-sky
    maps of the interactions between the million mile-per-hour solar wind
    blown out by the Sun and the low-density material between the stars,
    known as the interstellar medium. The spacecraft will complete an
    allsky map of the interstellar boundaries every six months.

    IBEX is the latest in NASA’s series of low-cost, rapidly developed
    Small Explorers spacecraft. SwRI leads the IBEX mission that includes
    a team of national and international partners. The NASA Goddard Space
    Flight Center manages the Explorers Program for the Science Mission
    Directorate in Washington.

    Editors: For more information on the IBEX mission, visit

    http://www.ibex.swri.edu or http://www.nasa.gov/ibex
