Delving into the Interstellar Sail

One of the benefits of a project like Breakthrough Starshot is that it moves the ball forward in terms of the academic research that underpins advances in technologies. I seriously doubt that Starshot will result in an Alpha Centauri probe reaching these stars within the next 50 years, given among other things the conundrum of data retrieval from a fleet of chip-sized micro-craft. But we all gain from the fact that scientists are tackling these issues in a well-funded and coordinated way. The research library grows.

As a field, interstellar studies has always been resource-starved, not to mention winning scant attention among the larger community of scientists and engineers at conferences and in publications. But it has drawn on a consistent thread of interest that now gains new energies. That benefits the entire effort. And let’s not forget the power of looking far into the future to get a conception of what we can do with scaled-down projects in the near term, as for example Andrew Higgins’ laser-fed fast missions to Mars.

Starshot, of course, takes the laser concept into the interstellar realm, using a massive ground-based array that would likely be based in Chile’s Atacama Desert. The laser array is used to push meter-scale sails, making Starshot’s committee on sail design a major component of the effort. The infusion of funding into sail technologies is welcome, as it leads to new insights into a sail’s shape, its size and its materials.

Image: An artist’s conception of the Starshot Lightsail spacecraft during acceleration by a ground-based laser array. Previous conceptions of lightsails have imagined them being passively pushed by light from the sun, but Starshot’s laser-based approach requires rethinking the sail’s shape and composition so it won’t melt or tear during acceleration. Credit: Masumi Shibata, courtesy of Breakthrough Initiatives.

Thus the significance of Igor Bargatin’s work. An associate professor at the University of Pennsylvania in the Department of Mechanical Engineering and Applied Mechanics, Bargatin and colleagues at the university as well as at UCLA have just published two papers going through fundamental sail issues and specifications. Remember that the projected sails, perhaps three-meters wide and a thousand times thinner than a sheet of paper, are to be subjected to a light intensity millions of times that of the Sun.

The team sees these sails as being made of ultrathin sheets of aluminum oxide and molybdenum disulfide, constructed in a parachute shape rather than a flat surface. The structure would be about as deep as it is wide, allowing the greatest ability under these calculations of withstanding the strain of the sudden acceleration, which is expected to reach tens of thousands of g’s. A ‘billowing’ sail should hold up to the strain better than a tight, flat one, providing a surface that is more resistant to tears.

Matthew Campbell is a postdoctoral researcher in Bargatin’s group and lead author of the paper covering the sail’s shape:

“Laser photons will fill the sail much like air inflates a beach ball. And we know that lightweight, pressurized containers should be spherical or cylindrical to avoid tears and cracks. Think of propane tanks or even fuel tanks on rockets.”

Image: Campbell et al. show that the diameter and radius of curvature of a circular light sail should be comparable in magnitude, both on the order of a few meters, in optimal designs for gram-scale payloads. Credit: Campbell et al.

The second paper, led by UCLA engineer Aaswath Raman, examines sail materials, offering insights into how heat will be dissipated under the powerful laser beam. Here the idea is to use nano-scale patterning within the material to manage the heat. Says Raman:

“If the sails absorb even a tiny fraction of the incident laser light, they’ll heat up to very high temperatures. To make sure they don’t just disintegrate, we need to maximize their ability to radiate their heat away, which is the only mode of heat transfer available in space.”

While earlier research maximized heat dissipation through a photonic crystal design that deployed regularly spaced holes in the sail material, the new work suggests adding a grid-like pattern for the ‘fabric,’ with the spacing of the holes matching the wavelength of light, and the swatches of sail material forming the grid spaced to match the wavelength of the thermal emission. The result is a stronger sail, one that could endure a higher initial thrust and therefore need less time under the beam.

The mathematics involved here is of a complexity far above my pay grade. I’ll have to send you to the paper for the details. But I think we can visualize the sail internals as a kind of ‘scaffolding’ that is apparent in the image below. The reference to ‘Mie resonant features’ in the caption to this image points to the work of Gustav Mie, who described what we now call ‘Mie scattering,’ showing the behavior of light of various wavelengths as it strikes particular kinds of structures. Mie resolved the intricate mathematics of these interactions.

Image: This is Figure S4 from the paper. Caption: Continuous Mie structure design. The black outlines serve to highlight the positions of the Mie resonant features against the continuous reflective green layer, but would not exist in the actual design. Credit: Brewer et al.

UCLA’s Deep Jariwala, who was involved with both papers, comments:

“A few years ago, even thinking or doing theoretical work on this type of concept was considered far-fetched. Now, we not only have a design, but the design is grounded in real materials available in our labs. Our plan for the future would be to make such structures at small scales and test them with high-power lasers.”

Thus the theoretical work continues. Exactly when it pays off in hardware and actual missions is something we cannot know.

The papers are Campbell et al., “Relativistic Light Sails Need to Billow,” Nano Letters 22, 1 (2022), 90-96 (abstract); and Brewer et al., “Multiscale Photonic Emissivity Engineering for Relativistic Lightsail Thermal Regulation,” Nano Letters 22, 2 (2022), 594-601 (abstract).

tzf_img_post

Galaxies Like Grains of Salt

I’m riffing on a Brian Aldiss title this morning, the reference being the author’s 1959 collection Galaxies Like Grians of Sand, which is a sequence of short stories spanning millions of years of Earth’s future (originally published as The Canopy of Time). But sand is appropriate for the exercise before us today, one suggested by memories of the day my youngest son told me he had to construct a model of an atom and we went hunting all over town for styrofoam balls. It turns out atoms are easy.

Suppose your child comes home with a project involving the creation of a scale model of the galaxy. Pondering the matter, you announce that grains of salt can stand in for stars. Sand might work as well, but salt is easier because you can buy boxes of salt at the grocery. So while your child goes outside to do other things, you and your calculator get caught up in the question of modeling the Milky Way. Just how much salt will you need?

Most models of the galaxy these days come in at a higher number than the once canonical 100 billion stars. In fact, 200 billion may be too low. But let’s economize by sticking with the lower number. So you need 100 billion grains of salt to make your scale model accurate. A little research reveals that the average box of Morton salt weighs in with about five million grains. Back to the calculator. You will need 20,000 boxes of salt to make this work. The local grocery doesn’t keep this much in stock, so you turn to good old Amazon, and pretty soon a semi has pulled up in front of your house with 20,000 blue boxes of salt.

But how to model this thing? I wouldn’t know where to begin, but fortunately JPL’s Rich Terrile thought the matter through some time back and he knows the answer. If we want to reflect the actual separation of stars just in the part of the galaxy we live in, we have to separate each grain of salt by eleven kilometers from any of its neighbors. Things get closer as we move in toward the bulge. Maybe your child has lots of friends to help spread the salt? Let’s hope so. And plenty of room to work with for the model.

I mention all this because I was talking recently with Nate Simpson, lead developer of Kerbal Space Program 2, and colleague Jon Cioletti. This is the next iteration of the remarkable spaceflight simulation game that offers highly realistic launch and orbital physics capabilities. We were talking deep space, and the salt box comparison came naturally, because these guys are also in the business of reaching a broader audience with extraordinary scales of time and space.

I strongly recommend Kerbal, by the way, because I suspect Kerbal Space Program has already turned the future career path of more than a few young players in the direction of aerospace, just as, say, science fiction novels or Star Trek inspired an earlier generation in that direction. Watching what develops as Kerbal goes into version 2 will be fascinating.

Unexpected Interstellar Targets

But I was also thinking about the salt box analogy because it can be so difficult to get interstellar distances across to the average person, who may know on some level that a galaxy is a very big place, but probably doesn’t have that deep awe that a real acquaintance with the numbers delivers. I think about craft trying to navigate these immensities, and also about objects like ‘Oumuamua and 2I/Borisov, the first two known interstellar objects we have detected. What vast oceans of interstellar space such tiny objects have drifted through! Clearly, as our ability to observe them grows, we’ll find many more such objects, and one of these days we’ll get a mission off to study one up close (probably designed by Andreas Hein and team).

Image: This Hubble Space Telescope image of 2I/Borisov shows the first observed rogue comet, a comet from interstellar space that is not gravitationally bound to a star. It was discovered in 2019 and is the second identified interstellar interloper, after ‘Oumuamua. 2I/Borisov looks a lot like the traditional comets found inside our solar system, which sublimate ices, and cast off dust as they are warmed by the Sun. The wandering comet provided invaluable clues to the chemical composition, structure, and dust characteristics of planetary building blocks presumably forged in an alien star system. It’s rapidly moving away from our Sun and will eventually head back into interstellar space, never to return. Credit: NASA, ESA, and D. Jewitt (UCLA).

I was heartened to learn over the weekend that the James Webb Space Telescope will likely have a role to play in further detection efforts. Indeed, there is now a Webb Target of Opportunity program that homes in on just such discoveries. Here is how a Target of Opportunity is defined on the JWST website:

A target for JWST observation is deemed a Target of Opportunity (ToO) if it is associated with an event that may occur at an unknown time, and in this way ToOs are distinct from time constrained observations.

Sounds made to order for interstellar interlopers. But we can add this:

ToO targets include objects that can be identified in advance, but which undergo unpredictable changes (e.g., some dwarf novae), as well as objects that can only be identified in advance by class (e.g., novae, supernovae, gamma ray bursts, newly discovered comets, etc.). ToOs are generally not suitable for observations of periodic phenomena (e.g., eclipsing binary stars, transiting planets, etc.). ToO proposals must provide a clear definition of the trigger criteria and present a detailed plan for the observations to be performed in the technical justification of the PDF submission if the triggering event occurs. A ToO activation may consist of a single observation or of a set of observations executed with a pre-specified cadence.

Martin Cordiner (NASA GSFC/Catholic University of America) is principal investigator of the Webb Target of Opportunity program to study the composition of an interstellar object:

“The supreme sensitivity and power of Webb now present us with an unprecedented opportunity to investigate the chemical composition of these interstellar objects and find out so much more about their nature: where they come from, how they were made, and what they can tell us about the conditions present in their home systems, The ability to study one of these and find out its composition — to really see material from around another planetary system close up — is truly an amazing thing.”

Image: This artist’s illustration shows one take on the first identified interstellar visitor, 1I/’Oumuamua, discovered in 2017. The wayward object swung within 38 million kilometers of the Sun before racing out of the solar system. 1I/’Oumuamua still defies any simple categorization. It did not behave like a comet, and it had a variety of unusual characteristics. As the complex rotation of the object made it difficult to determine the exact shape, there are many models of what it could look like. Credit: NASA, ESA, and J. Olmsted and F. Summers (STScI).

When astronomers detect another interstellar interloper, they’ll first need to confirm that it’s on a hyperbolic orbit, and if JWST is to come into play, that its trajectory intersects with the telescope’s viewing field. If that’s the case, Cordiner’s team will use JWST’s Near-Infrared Spectrograph (NIRSpec) to examine gasses released by the object due to the Sun’s heat. The spectral resolution available here should allow the detection of molecules ranging from water, methanol, formaldehyde and carbon dioxide to carbon monoxide and methane. The Mid-infrared instrument (MIRI) will track any dust or solid particles produced by the object.

The near- and mid-infrared wavelength ranges will be used to examine interstellar interlopers for the first time with this program, making this fertile ground for new discoveries. The assumption being that such objects exist in vast numbers, the Webb Target of Opportunity program should find material to work with, and likely soon, especially given JWST’s ability to detect incoming objects at extremely faint magnitudes. Are most such discoveries likely to be comet-like, or do we have the possibility of finding other objects as apparently anomalous as ‘Oumuamua?

tzf_img_post

Laser Thermal Propulsion for Rapid Transit to Mars: Part 2

In Part 2 of Andrew Higgins’ discussion of laser-thermal rocketry and fast missions to Mars, we look more deeply at the design and consider its potential for other high delta-V missions. Are we looking at a concept that could help us build the needed infrastructure to one day support expansion beyond the Solar System?

by Andrew Higgins

We now turn to the detailed design our team at McGill University came up with for a laser-thermal mission capable of reaching Mars in 45 days. Our team took the transit time and payload requirement (1 ton) from a NASA announcement of opportunity that appeared in 2018 that was seeking “Revolutionary Propulsion for Rapid Deep Space Transit”. Although being in Canada made us ineligible to apply to this program, we adopted this mission targeted by the NASA announcement for our design study; being in Canada also means we are used to working without funding.

Image: McGill University students responsible for the design of the laser-thermal mission to Mars.

The NASA-defined payload of 1 ton would be a technology demonstration mission (what we call Mission Mars 1 in our study). Placing a premium on minimizing the transit time presumably reflects NASA’s eventual interest in lessening astronaut exposure to galactic cosmic rays, which increases sharply once a spacecraft leaves the Earth’s protective magnetosphere. Once on the surface of Mars, data from the Curiosity rover have shown that the radiation environment there appears to be more benign, comparable to or even less than the radiation exposure encountered on the ISS. Throwing regolith to cover the habitat on Mars would lower the radiation risk further, so astronauts leading a hobbit-like existence on Mars should stay healthy, provided they get there quickly.

Our Mars 1 mission starts with our spacecraft already in medium Earth orbit (MEO), so that it remains in view of the ground-based laser during the entire laser-powered burn, which takes about an hour. Given the ongoing revolution in space access, we did not bother to explore using laser propulsion to get to orbit. Chemical propulsion is well-suited for reaching orbit, so we selected a Falcon 9 to bring our vehicle to MEO and focused on using the laser for the transit to Mars.

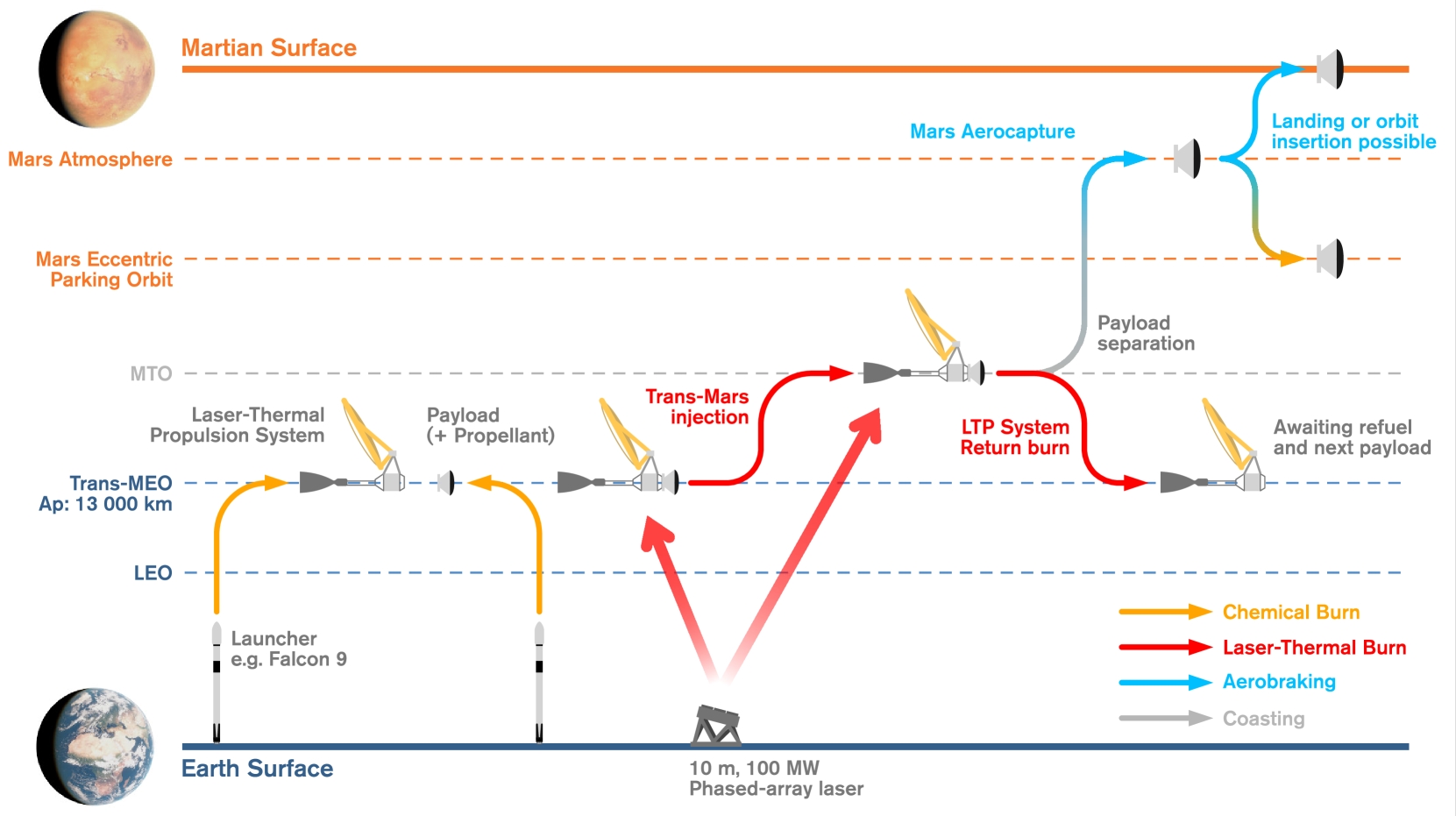

Image (click to enlarge): The concept of operations for a rapid transit to Mars mission using laser-thermal propulsion. Note the use of a burn-back maneuver to bring the laser-thermal stage back to medium Earth orbit after sending the payload to Mars.

The laser array on Earth is about 10 m by 10 m, comparable to a volleyball court, and for the 1 ton payload mission, the laser would operate at 100 MW output for an hour, using power taken from the grid or generated via solar and then stored in a battery farm. (It is worth noting that a battery farm capable of providing 100 MW for an hour was built in South Australia in 2017 from scratch in just 60 days, in response to a taunt posted in a tweet [1]. So, powering the laser is not a problem.

When the laser beam arrives at the spacecraft, it is focused into the propellant heating chamber by a large, inflatable reflector—a balloon that is transparent on one half and reflective on the other. Inflatable space structures like this are fairly mature, including a demonstration of an inflatable antenna that flew on the Space Shuttle in 1996; a comprehensive overview of this technology was given by Jamey Jacob at the 6th TVIW in Wichita [2]. Inflatable collectors such as these have shown sufficient optical quality for our purposes. While the laser flux on the inflatable is intense, we found fluorinated polyimide films have sufficiently low absorptivity to avoid overheating.

Image: Inflatable Antenna Experiment deployed from the Space Shuttle Endeavor (STS-77).
Image Source: https://apod.nasa.gov/apod/ap960525.html

The inflatable reflector focuses the laser into the heating chamber, raising the temperature of the hydrogen flowing through the chamber to greater than 10,000 K. Keeping the walls of the chamber cool is the central challenge of the design, but our team found a combination of regenerative cooling (cool hydrogen flowing through the walls), transpiration cooling (injecting hydrogen through porous walls), and seeding the hydrogen (to trap thermal radiation in the propellant, similar to the greenhouse effect) should be sufficient to keep the walls cool. The heat absorbed via regeneration is used to power the turbopumps needed to pump the hydrogen via an expander cycle. The fully ionized hydrogen propellant is then exhausted through a conventional bell nozzle to generate thrust. Based on our own calculations and prior work on laser thermal propulsion and gas-core NTRs from the 1970s, a specific impulse of 3000 s appears feasible.

Image: Details of the propellant heating chamber and associated propellant feed and cooling systems.

The laser propulsion hardware is just dead mass once the spacecraft exceeds the focal length of the laser (which is about 50,000 km), so our team proposed bringing the laser thermal propulsion stage back to Earth via a flip-and-burn-back maneuver while still within range of the laser in cis-Lunar space. Once the propulsion stage is brough back to low or medium Earth orbit, it can be refilled and readied for use again. This would allow a single laser-thermal stage to throw multiple payloads to Mars over the duration of a given launch window.

The 14 km/s Delta-V laser thermal burn sends the spacecraft to Mars on a nearly straight line trajectory: no need for looping ellipses and Venus flybys. Our astrodynamicist optimized the trajectory for a 2020 departure. Even though our design had the launch two months after Perseverance, the vehicle would arrive at Mars three months before the newest Mars rover, overtaking it on the way.

Image: 45-day transfer orbit to Mars via laser thermal propulsion, in comparison to the 7-month journey of the Perseverance rover.

When the spacecraft arrives at Mars, there is no laser to perform a laser-assisted deceleration burn (at least, not yet) and at the high approach velocity, aerocapture appears the best option. At an approach speed of 16 km/s, aerocapture is going to be harsh and is another critical link in the mission design. The heat flux will be intense, but the new Heatshield for Extreme Entry Environment Technology (HEEET) developed by NASA in recent years appears to be rated to withstand even greater heat flux. The vehicle entering the Martian atmosphere would need to use lift pointed down (toward the surface of Mars) to keep the vehicle in a trajectory that skims the atmosphere. This maneuver is a delicate balance between heat load, the g-load, and the lift and ballistic coefficients of the spacecraft, which we first modelled analytically and then backed-up with full three-degree-of-freedom simulations. The g-load limit was set at 8-gees for our study; for the scaled-up design with astronauts, the g-load will be severe and sustained for several minutes, but within the limits of what humans can tolerate. (Relevant to note that, at the recent Interstellar Symposium in Tucson, Esther Dyson reported from her centrifuge training at Star City that, “8-gees going through you was actually a lot of fun” [3]). The aerocapture would be a wild ride, for sure.

Image: Details of model used for aerocapture upon arrival at Mars.

The scaled-up version of our design (Mission Mars 2a) intended for crewed missions used a 40-ton spacecraft derived from the Orion capsule and European Service Module. The greater payload requires a more powerful (4 GW) laser to effectuate the same 45-day transit to Mars, but the laser array occupies the same 10-m footprint on earth.

The other mission we considered was a cargo mission (Mission Mars 2b). Robert Zubrin often makes the point that—even if advanced propulsion capable of high thrust and high specific impulse was available—he would still opt for a 6-month free-return trajectory and use the enhanced propulsion capability to bring more payload. So, the Mars 2b mission uses the performance of laser thermal propulsion to maximize the amount of cargo that could be brought to Mars with a Hohmann-like transfer, and shows that the payload could be increased by a factor of more than 10 over what a Centaur upper stage—with the same mass of propellant—could throw to Mars.

Image: Final design of laser-thermal propulsion spacecraft capable of reaching Mars in 45 days.

While a more thorough vetting of our design is called for and much work remains to be done, one encouraging finding is that the specific power of the laser thermal propulsion design is so good—an “alpha” on the order of 0.001 kg/kW—that even if the mass of the entire propulsion system were to increase by a factor of ten, the increased mass would not significantly affect the overall performance or payload capacity of the design. There is sufficient margin in the concept to accommodate the inevitable upward creep in mass that occurs as the design is refined.

Laser thermal propulsion may be well suited to other high Delta-V missions, such as flybys of interstellar comets, the mission to the solar gravitational focus, and a probe to the hypothetical Planet 9—if it is found. There is no reason the laser-thermal approach cannot be combined with laser electric propulsion or other techniques such as an Oberth maneuver. Perhaps it is best to think of laser thermal propulsion as a dragster that burns a lot of propellant quickly to get you up to speed, but from there, you can invoke laser electric propulsion that is well suited to the diminishing laser flux as the spacecraft exceeds the focal length of the laser. Appendix A in our paper details where we calculate the tradeoff between laser thermal and laser electric propulsion occurs. Hopefully, the laser-thermal concept can contribute to a further appreciation of directed energy as a disruptive technology for high-velocity missions in the solar system and beyond.

The complete details of our study can be found in our published paper: Duplay et al, “Design of a rapid transit to Mars mission using laser-thermal propulsion,” Acta Astronautica Volume 192 (March 2022), pp. 143-156 (abstract / preprint).

A browser-friendly version of the paper is available here: https://ar5iv.org/html/2201.00244

References

1. https://www.popularmechanics.com/science/a31350880/elon-musk-battery-farm/

2. J. D. Jacob, B. Loh, Inflatable technologies for interstellar missions, in: P. Gilster (Ed.), Proceedings of the 6th Tennessee Valley Interstellar Workshop, 2020.

3. https://www.youtube.com/watch?v=nHnUeM8RovE

tzf_img_post

Laser Thermal Propulsion for Rapid Transit to Mars: Part 1

Do the laser thermal concepts we discussed earlier this week have an interstellar future? To find out, applications closer to home will have to be tested and deployed as the technology evolves. Today we look at the work of Andrew Higgins and team at McGill University (Montreal), whose concept of a Mars mission using these methods is much in the news. Dr. Higgins is a professor of Mechanical Engineering at the university, where he teaches courses in the discipline of thermofluids. He has 30 years of experience in shock wave experimentation and modeling, with applications to advanced aerospace propulsion and fusion energy. His background includes a PhD (’96) and MS (’93) in Aeronautics and Astronautics from the University of Washington, Seattle, and a BS (’91) in Aeronautical and Astronautical Engineering from the University of Illinois in Urbana/Champaign. Today’s article is the first of two.

by Andrew Higgins

Directed energy propulsion continues to be the most plausible, near-term method by which we might send a probe to the closest stars, with the laser-driven lightsail being the Plan A for most interstellar enthusiasts. Before we use an enormous laser to send a probe to the stars, exploring the applications of directed energy propulsion within the solar system is of interest as an intermediate step.

Ironically, the pandemic that descended on the world in the spring of 2020 provided my research group at McGill University the stimulus to do just this. As we were locked out of our lab for the summer due to covid restrictions, our group decided to turn our attention to the mission design applications of the phased-array laser technology being developed by Philip Lubin’s group at UC Santa Barbara and elsewhere that has formed the basis of the Breakthrough Starshot initiative. If a 10-km-diameter laser array could push a 1-m lightsail to 30% the speed of light, what could we do in our solar system with a smaller, 10-m-diameter laser array based on Earth?

Image: Laser-thermal propulsion vehicle capable of delivering payload to the surface of Mars in 45 days.

For lower velocity missions within the solar system, coupling the laser to the spacecraft via a reaction mass (i.e., propellant) is a more efficient way to use the delivered power than reflecting it off a lightsail. Reflecting light only transfers a tiny bit of the photon’s energy to the spacecraft, but absorbing the photon’s energy and putting it into a reaction mass results in greater energy transfer.

This approach works well, at least until the spacecraft velocity greatly exceeds the exhaust velocity of the propellant; whenever using propellant, we are still under the tyranny of the rocket equation. Using laser-power to accelerate reaction mass carried onboard the spacecraft cannot get us to the stars, but for getting around the solar system, it will work just fine.

One approach to using an Earth-based laser is to employ a photovoltaic array onboard the spacecraft to convert the delivered laser power into electricity and then use it to power electric propulsion. Essentially, the idea here is to use a solar panel to power electric propulsion such as an ion engine (similar to the Deep Space 1 and Dawn spacecraft), but with the solar panel tuned to the laser wavelength for greater efficiency. This approach has been explored under a NIAC study by John Brophy at JPL [1] and by a collaboration between Lubin’s group at UCSB and Todd Sheerin and Elaine Petro at MIT [2]. The results of their studies look promising: Electric propulsion for spaceflight has always been power-constrained, so using directed energy could enable electric propulsion to achieve its full potential and realize high delta-V missions.

Image: Laser-electric propulsion, explored as part of a NIAC study by JPL in 2017. Image source: https://www.nasa.gov/directorates/spacetech/niac/2017_Phase_I_Phase_II/Propulsion_Architecture_for_Interstellar_Precursor_Missions/

There are some limits to laser-electric propulsion, however. Photovoltaics are temperature sensitive and are thus limited by how much laser flux you can put onto them. The Sheerin et al. study of laser-electric propulsion used a conservative limit for the flux on the photovoltaics to the equivalent of 10 “suns”. This flux, combined with the better efficiency of photovoltaics that could be optimized to the wavelength of the laser, would increase the power generated by more than an order of magnitude in comparison to solar-electric propulsion, but a phase-array laser has the potential to deliver much greater power. Also, since electric propulsion has to run for weeks in order to build up a significant velocity change, the laser array would need to be large—in order to maintain focus on the ever receding spacecraft—and likely several sites would need to be built around the world or perhaps even situated in space to provide continuous power.

I had spent my sabbatical with Philip Lubin’s group in Santa Barbara in 2018 and was fortunate to be an enthusiastic fly-on-the-wall as the laser-electric propulsion concept was being developed but—being an old-time gasdynamicist—there was not much I could contribute. There is another approach to laser-powered propulsion, however, that I thought was worth a look and suited to my group’s skill set: laser-thermal propulsion. Essentially, the laser is used to heat propellant that is expanded out of a traditional nozzle, i.e., a giant steam kettle in space. The laser flux only interacts with a mirror on board the spacecraft to focus the laser through a window and into the propellant heating chamber, and these components can withstand much greater fluxes, in principle, up to the equivalent of tens of thousands of suns. The greater power that can be delivered results in greater thrust, so a more intense propulsive maneuver can be performed nearer to Earth. The closer to Earth the propulsive burn is, the smaller the laser array needs to be in order to keep the beam focused on the spacecraft, making it more feasible as a near-term demonstration of directed energy propulsion. The challenge is that the laser fluxes are intense and do not lend themselves to benchtop testing; could we come up with a design that could feasibly handle the extreme flux?

Our effort was led by Emmanuel Duplay, our “Chief Designer,” who happens to be a gifted graphic artist and whose work graces the final design. We also had Zhuo Fan Bao on our team, who had just finished his undergraduate honors thesis at McGill on modelling the laser-induced ionization and absorption by the hydrogen propellant—the physics that was at the heart of the laser-thermal propulsion concept [3]. Heading into the lab to measure the predictions of Zhuo Fan’s thesis research was our plan for the summer of 2020, but when the pandemic dropped, we pivoted to the mission design aspects of the concept instead. Together with the rest of our team of undergraduate students—all working remotely via Zoom, Slack, Notion, and all the other tools that we learned to adopt through the summer of 2020—we dove into the detailed design.

Image: McGill Interstellar Flight Experimental Research Group meeting-up in person for the first time on Mont Royal in Montreal, during the early days of the pandemic, summer 2020.

Our design team benefitted greatly from prior work on both laser-thermal propulsion and gas-core nuclear thermal rockets done in the 1970s. Laser-thermal propulsion is well-trodden ground, going back to the seminal study by Arthur Kantrowitz [4], who is my academic great grandfather of sorts. In the 1970s, the plan was to use gasdynamic lasers—imagine using an F-1 rocket engine to pump a gas laser—operating at the 10-micron wavelength of carbon dioxide. With the biggest optical elements people could conceive of at the time—a lens about a meter in diameter—combined with this longer wavelength, laser propulsion would be limited to Earth-to-space launch or low Earth orbit. To the first order, the range a laser can reach is given by the diameter of the lens times the diameter of the receiver, all divided by the wavelength of laser light. So, targeting a 10-m diameter receiver, you can only beam a CO2 laser about a thousand kilometers. The megawatt class lasers that were conceived at the time were not really up to the job of powering Earth-to-orbit launchers, which typically require gigawatts of power. For many years, Jordin Kare kept the laser-thermal space-launch concept alive by exploring how small a laser-driven launch vehicle could be made. By the 1980s, most studies focused on using laser-thermal rockets for orbit transfer from LEO, an application that requires lower power[5].

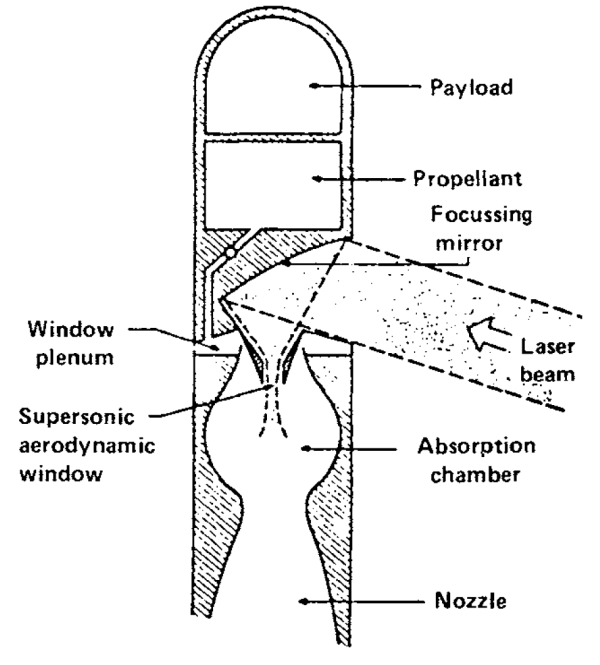

Image: Concept for a laser-thermal rocket from the early 1980s, using a 10-micron-wavelength CO2 laser. Image Source: Kemp, Physical Sciences Incorporated (1982).

As a personal footnote, I was fixated with laser-thermal propulsion in the 1980s as an undergraduate aerospace engineering student studying Kantrowitz and Kare’s work and, in 1991, visited all of the universities that had worked on laser propulsion, hoping I could do research in this field as a graduate student. I was told by the experts—politely but firmly—that the concept was dying or at least on pause; with the end of the Cold War, who was going to fund the development of the multi-megawatt lasers needed?

The recent emergence of inexpensive, fiber-optic lasers that could be combined in a phased array changed this picture and—thirty years later—I could finally come back to the concept that had been kicking around the back of my mind. The fact that fiber optic lasers operate at 1 micron (rather than 10 microns) and could be assembled as an array 10-m in effective optical diameter means they could reach a hundred times further into space than previously considered. Greater power, shorter wavelength, and bigger optical diameter might multiply together as a win–win–win combination and open up the possibility to rapid transit in the solar system.

The other prior literature we greatly benefitted from is gas-core nuclear thermal rockets. Unlike classic, solid-core NERVA rockets that are limited by the materials that make up the heating chamber, gas core nuclear thermal rockets contain the fissile material as plasma in the center of the heating chamber that does not come into contact with the walls. Work on this concept progressed in the 1960s and early 1970s, and studies concluded that containing temperatures of 50,000 K should be feasible. The literature on this topic is extensive, but Winchell Chung’s Atomic Rockets website provides a good introduction [6]. Work from the early 1970s concluded specific impulses exceeding 3000 s were achievable, but leakage of fissile material and its products from the gas core were both a performance limiting issue and an environmental nonstarter for use near Earth. But what if we could create the same conditions in the gas core using a laser, without loss of uranium or radioactive waste to worry about? The heat transfer and wall cooling issues between gas core NTR and the laser-thermal rocket neatly overlap, so we could adopt many of the strategies previously developed to contain these temperatures while keeping the walls of our heating chamber cool.

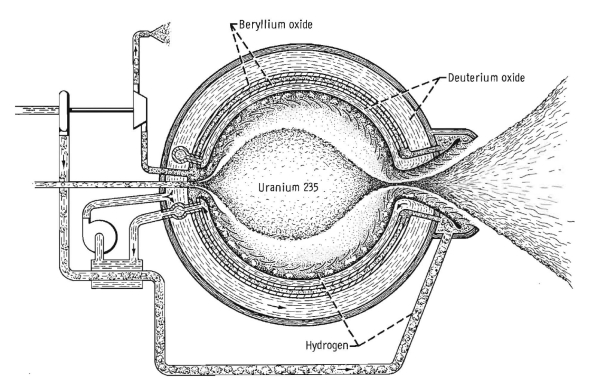

Image: Gas-core nuclear thermal rocket. Image source: Rom, Nuclear-Rocket Propulsion, (NASA, 1968).

Laser-thermal propulsion is sometimes called the poor person’s nuclear thermal rocket. Given its lack of radioactive materials and associated issues, I would argue that laser-thermal propulsion is rather the enlightened person’s nuclear rocket.

With this stage set, in the next installment, we will take a closer look at the final results of our Mars-in-45-day mission design study.

References

1. John Brophy et al., A Breakthrough Propulsion Architecture for Interstellar Precursor Missions, NIAC Final Report (2018)
https://ntrs.nasa.gov/api/citations/20180006589/downloads/20180006589.pdf

2. Sheerin, Todd F., Elaine Petro, Kelley Winters, Paulo Lozano, and Philip Lubin. “Fast Solar System transportation with electric propulsion powered by directed energy.” Acta Astronautica (2021).
https://doi.org/10.1016/j.actaastro.2020.09.016

3. Bao, Zhuo Fan and Andrew J. Higgins. “Two-Dimensional Simulation of Laser Thermal Propulsion Heating Chamber” AIAA Propulsion and Energy 2020 Forum (2020).
https://doi.org/10.2514/6.2020-3518

4. Arthur Kantrowitz, “Propulsion to Orbit by Ground-Based Lasers,” Astronautics and Aeronautics (1972).

5. Leonard H. Caveny, editor, Orbit-Raising and Maneuvering Propulsion: Research Status and Needs (AIAA, 1984).
https://doi.org/10.2514/4.865633

6. http://www.projectrho.com/public_html/rocket/enginelist2.php#gcnroc

tzf_img_post

Going Interstellar with a Laser-Powered Rocket

As far back as the 1960s, aerospace engineer John Bloomer published on the idea of using an external laser as the energy source for a rocket, using the incoming beam to fire up an onboard electrical propulsion system. And it was in a 1971 speech that Arthur Kantrowitz, looking toward the technologies that would succeed chemical rockets, suggested using lasers to heat a propellant within a rocket. This is laser-thermal propulsion, in which hydrogen (the assumed propellant) is heated to produce an exhaust stream. The hybrid method would be studied extensively in the 1970s.

So when Al Jackson and Daniel Whitmire took up the idea in a 1978 paper, they were in tune with an area that had already provoked some research interest. But Jackson and Whitmire had ideas that would refine the ramjet design introduced by Robert Bussard. They were pondering ways to power a starship, one that would carry its own reaction mass. Uneasy about the core Bussard design, the duo had, the year before, published on the idea of using a laser to augment the ramjet. Bussard sought to ignite fusion in reaction mass gathered by a magnetic ramscoop, gathering its own fuel as it roamed the galaxy. It was a dazzling idea, but problems had soon become apparent.

Image: Al Jackson, whose laser-powered ramjet and laser-powered interstellar rocket concepts, developed with Daniel Whitmire, refined the Bussard ramjet design and illustrated its shortcomings.

For the Bussard design, as we’ve seen not long ago in Peter Schattschneider work with Jackson (see John Ford Fishback and the Leonara Christine), runs into serious problems, including igniting the proton/proton fusion reaction Bussard advocated. We would go on to learn that the vast magnetic ramscoop of the ramjet generates far too much drag to be practical.

So Jackson and Whitmire proceeded first to come up with a laser-augmented ramjet that applied beamed energy from a transmitting installation in the Solar System, one that would interact with hydrogen collected by the starship ramscoop. They then turned their attention to beaming energy to a craft that operated using its own reaction mass rather than mass drawn from the interstellar medium.

It’s that latter idea that has the most resonance. Robert Forward in this period had been talking about beaming laser energy to space sails. Now the laser idea goes into the service of a hybrid propulsion concept that loses at least one Bussard showstopper. I’ve described Jackson and Whitmire’s idea in the past as ‘rocketry on a beam of light.’ It’s an ingenious solution, even if it does not permit us to leave the propellant behind.

Image: Daniel Whitmire, collaborator with Al Jackson on the laser-powered interstellar ramjet and rocket concepts, and author of important work on Carbon Nitrogen Oxygen cycle (CNO) fusion possibilities for the ramjet. Credit: University of Louisiana at Lafayette.

And it’s this ‘laser-powered rocket,’ as opposed to a ramjet, that should get more attention in the community than it has, given that subsequent studies of the interstellar medium have cast doubt on how even the most efficient ramscoop could collect enough reaction mass given variations in the distribution of hydrogen in the galaxy. In other words, you might have to get up to relativistic speeds in the first place just to ignite a ramjet, if indeed it could be ignited, and you would have to reckon with varying supplies of interstellar material along the way. Poul Anderson’s wonderful take on the interstellar ramjet in Tau Zero (1970) becomes highly problematic!

The laser-powered interstellar rocket contains the added advantage of being able to accelerate not only away from the laser beam but towards it, for the beam is conceived purely as an energy source, not a source of momentum. This has immediate benefits in mission planning. One of the great challenges of interstellar flight is that once you’ve managed to get your craft up to relativistic speeds, you’d like to do more upon arrival at destination than simply blitz through a planetary system at 20 percent of c. The laser-powered interstellar rocket, however, operates efficiently in both acceleration and deceleration phases. No need for Robert Forward’s ‘staged sails’ when using this take on a starship, or for the deployment of a magnetic sail as a brake.

Image: Laser-thermal propelled spacecraft in Earth orbit awaiting its departure. Credit: Creative Commons Attribution 4.0 International License.

The history of interstellar studies has involved conceiving of ideas that do not break physics and then probing them to find out whether they work. Like the original Bussard ramjet and so many of Robert Forward’s ideas, Jackson and Whitmire’s concept is highly futuristic, but I love what Al said in a reminiscence on the matter in these pages: “The importance is in showing that the physics allows an opening for the engineering physics. There is no exotic physics here, only – so to speak – exotic technology.”

I sometimes forget how venerable some of these ideas are, for even while Jackson and Whitmire were doing their work on laser beaming variants to adapt the Bussard design, George Marx had already published a paper in Nature in 1966 with the provocative title “Interstellar Vehicle Propelled by Terrestrial Laser Beam.” Laser lightsails were under active discussion, and now there was a laser rocket. We have had half a century to ponder these ideas, and I see that another variant on beaming power to a spacecraft with onboard fuel has just emerged. While it’s a system advocated for fast transit to Mars, it plays upon motifs that can turn interstellar.

In a paper appearing in Acta Astronautica, lead author Emmanuel Duplay (McGill University, Montreal) and colleagues take a near-term look at what such methods can achieve. But they also give a nod to interstellar prospects, pointing out that trends like the emergence of inexpensive fiber-optic laser amplifiers and the possibility of phase-locking large arrays of such amplifiers to operate as a single element are now under active study. Moreover, adaptive optics methods can smooth beam distortions if moving through the atmosphere, allowing such an array to beam energy to a spacecraft from the surface of the Earth. Long-term, a space-based array offers huge advantages, but deep space missions do not depend on this.

Indeed, the new work responds to a recent NASA solicitation looking for propulsion concepts for rapid interplanetary missions capable of making the Earth-Mars crossing in no more than 45 days, and reaching a distance of 5 AU in no more than a year, or 40 AU (in the realm of Pluto/Charon) in no more than five years. As Mars is a feasible target for human crews in the not distant future, such a capability would mitigate the risk to astronauts of exposure to galactic cosmic rays and dangerous solar activity.

I’m intrigued by the idea that beamed propulsion can become a major factor in creating a system-wide infrastructure, one that will along the way develop the needed technologies for missions to another star. So in the next two posts, I want to turn things over to Andrew Higgins (McGill University), who is at the heart of the work in Montreal. Rapid transport to Mars is the baseline design here, but it’s a metric that not only allows us to compare competing propulsion methods but also look ahead to the deep space missions it enables.

The Jackson and Whitmire paper is “Laser Powered Interstellar Rocket,” Journal of the British Interplanetary Society, Vol. 31 (1978), pp.335-337. The Bloomer paper is “The Alpha Centauri Probe,” in Proceedings of the 17th International Astronautical Congress (Propulsion and Re-entry), Gordon and Breach. Philadelphia (1967), pp. 225-232. The paper we’ll look at next is Duplay et al, “Design of a rapid transit to Mars mission using laser-thermal propulsion,” Acta Astronautica Volume 192 (March 2022), pp. 143-156 (abstract / preprint).
