by Paul Gilster | Mar 31, 2020 | Exoplanetary Science |
As we improve our instrumentation, the search for worlds where life can flourish will generate more and more Earth-sized targets for extended investigation. Here time plays an interesting role, for our own planet seen two billion years ago would present a different aspect than the Earth of today. Atmospheres evolve, a fact that Lisa Kaltenegger has studied in a series of papers in recent years, working with colleagues at Cornell’s Carl Sagan Institute, where she is director. The result is a series of spectral templates applicable to Earth-like planets at various stages of evolution.
We have only one known example of a living planet to work with, so Kaltenegger’s atmospheric models are designed to match the Earth at different stages of development. The prebiotic Earth of 3.9 billion years ago is saturated with carbon dioxide, while what the paper refers to as Epoch 2, some 3.5 billion years ago, is a world without oxygen. Three more epochs can be defined covering the rise of atmospheric oxygen, from levels below 1 percent beginning about 2.4 billion years ago (the Grand Oxygenation Event) to 10 percent oxygen (the Neoproterozoic Oxygenation Event) and the modern Earth atmosphere with oxygen levels at 21 percent.
“Using our own Earth as the key, we modeled five distinct Earth epochs to provide a template for how we can characterize a potential exo-Earth – from a young, prebiotic Earth to our modern world,” Kaltenegger said. “The models also allow us to explore at what point in Earth’s evolution a distant observer could identify life on the universe’s ‘pale blue dots’ and other worlds like them.”
Image: Lisa Kaltenegger, director of the Carl Sagan Institute at Cornell and Associate Professor in Astronomy. Credit: Cornell University.
The resulting database draws on a solar evolution model that establishes the solar flux through the epochs described, all applied to a hypothesized planet with the same mass and radius as Earth orbiting at 1 AU from an evolving Sun. Note that in previous work, Kaltenegger and colleagues have developed reflection and emission spectra of Earth through its geological history, and have also applied these data to different classes of host stars. This model is different, in that it’s focused on transmission spectra, meaning we’re looking at what data a transiting planet would present to our spectrographs as the light of its host star passed through its atmosphere.
The high-resolution database that comes out of this work goes through visible wavelengths into the infrared (0.4-20 μm) through geological time. Transmission spectra of this kind are the current tool for probing exoplanet atmospheres and may well be the first derived from Earth-sized worlds in habitable zone orbits.
From the paper:
Throughout the atmospheric evolution of our Earth, different absorption features dominate Earth’s transmission spectrum…with CH4 and CO2 being dominant in early Earth models, where they are more abundant. O2 and O3 spectral features become stronger with increasing abundance during the rise of oxygen (Epoch 3-5). High-resolution (λ/Δλ = 100,000) spectral features that indicate life on Earth —the combination of O2 or O3 with a reducing gas like CH4 or N2O—can be detected for oxygen levels as low as 0.01 present atmospheric levels (0.21% O2), which correspond to a Neoproterozoic Earth model and a time about one to two billion years ago in Earth’s history.
The authors used a climate-photochemistry tool called EXO-Prime to compile the database, noting that its results have been validated for visible to infrared wavelengths when Earth is observed as an exoplanet. We’ve talked in the past about the EPOXI mission’s look back at Earth (see EPOXI: Clues to Terrestrial Worlds), but we also have data from Mars Global Surveyor and numerous Earthshine observations that have demonstrated the tool is robust. The results clearly show how different absorption features dominate the Earth’s spectrum through the course of atmospheric change.
Image: This artistic depiction shows exoplanet Kepler-62f, a rocky super-Earth size planet, located about 1,200 light-years from Earth in the constellation Lyra. Kepler-62f may be what a prebiotic Earth may have looked like. Other exoplanets may look similar. Credit: NASA Ames/JPL-Caltech.
For those wanting to explore these issues further, the high-resolution transmission spectra database can be found online at www.carlsaganinstitute.org/data. The authors see it as a tool for data interpretation as well as optimizing observation strategy and training data retrieval methods as new instruments become available. The work is applicable not only to the introduction of the ground-based Extremely Large Telescopes like the Giant Magellan Telescope and the Thirty Meter Telescope, but also space-based missions like the James Webb Space Telescope as well as future mission concepts like LUVOIR (Large UV Optical Infrared telescope) and HabEx (Habitable Exoplanet Observatory).
Kaltenegger notes that these telescopes will be identifying Earth-like planets out to about 100 light years:
“Once the exoplanet transits and blocks out part of its host star, we can decipher its atmospheric spectral signatures. Using Earth’s geologic history as a key, we can more easily spot the chemical signs of life on the distant exoplanets…Our transmission spectra show atmospheric features, which would show a remote observer that Earth had a biosphere as early as about 2 billion years ago.”
The paper is Kaltenegger et al., “High-resolution Transmission Spectra of Earth Through Geological Time,” Astrophysical Journal Letters Vol. 892, No. 1 (26 March 2020). Abstract.
by Paul Gilster | Mar 27, 2020 | Advanced Rocketry |
If Breakthrough Starshot is tackling the question of velocities at a substantial percentage of lightspeed, what do we do about the payload question? A chip-sized spacecraft is challenging in terms of instrumentation and communications, not to mention power. Enter Jeff Greason’s Q-Drive, with an entirely different take on high velocity missions within the Solar System and beyond it. Drawing its energies from the medium to deploy an inert propellant, the Q-Drive ups the payload enormously. But can it be engineered? Alex Tolley has been doing a deep dive on the concept and talking to Dr. Greason about the possibilities, out of which today’s essay has emerged. A Centauri Dreams regular, Alex has a history of innovative propulsion work, and with Brian McConnell is co-author of A Design for a Reusable Water-Based Spacecraft Known as the Spacecoach (Springer, 2016),
by Alex Tolley
Technical University of Munich for Project Icarus. Credit: Adrian Mann.
The interstellar probe coasted at 4% c after her fusion drive first stage was spent. It massed 50,000 kg, mostly propellant water ice stored as a conical shield ahead of the probe that did double duty as a particle shield. The probe extended a spine, several hundred kilometers in length behind the shield. Then the plasma magnet sails at each end started to cycle, using just the power from a small nuclear generator. The magsails captured and extracted power from the ISM streaming by. This powered the ionization and ejection of the propellant. Ejected at the streaming velocity of the ISM, the probe steadily increased in velocity, eventually reaching 20% c after exhausting 48,000 kg of propellant. The probe, targeted at Proxima Centauri, would reach its destination in less than 20 years. It wouldn’t be the first to reach that system, the Breakthrough microsails had done that decades earlier, but this probe was the first with the scientific payload to make a real survey of the system and collect data from its habitable world.
(sound of a needle skidding across a vinyl record). Wait, what? How can a ship accelerate to 20% c without expending massive amounts of power from an onboard power plant, or an intense external power beam from the solar system?
In a previous article, I explained the plasma magnet drive, a magsail technology that did not require a large physical sail structure, but rather a compact electromechanical engine whose magnetic sail size was dependent on the power and the surrounding medium’s plasma density.
Like other magsail and electric sail designs, the plasma magnet could only run before the solar wind, making only outward bound trips and a velocity limited by the wind speed. This inherently limited the missions that a magsail could perform compared to a photon sail. Where it excelled was the thrust was not dependent on the distance from the sun that severely limits solar sail thrust, and therefore this made the plasma magnet sail particularly suited to missions to the outer planets and beyond.
Jeff Greason has since considered how the plasma magnet could be decelerated to allow the spacecraft to orbit a target in the outer system. Following the classic formulations of Fritz Zwicky, Greason considered whether the spacecraft could use onboard mass but external energy to achieve this goal. This external energy was to be extracted from the external medium, not solar or beamed energy, allowing it to operate anywhere where there was a medium moving relative to the vehicle.
The approach to achieve this was to use the momentum and energy of a plasma stream flowing past the ship and using that energy to transfer momentum to an onboard propellant to drive the ship. That plasma stream would be the solar wind inside the solar system (or another star system), and an ionized interstellar medium once beyond the heliosphere.
Counterintuitively, such a propulsion system can work in principle. By ejecting the reaction mass, the ship’s kinetic energy energy is maintained by a smaller mass, and therefore increases its velocity. There is no change in the ship’s kinetic energy, just an adjustment of the ship’s mass and velocity to keep the energy constant.
Box 1 shows that net momentum (and force) can be attained when the energy of the drag medium and propellant thrust are equal. However this simple momentum exchange would not be feasible as a drive as the ejection mass would have to be greater than the intercepted medium resulting in very high mass ratios. In contrast, the Q-Drive, achieves a net thrust with a propellant mass flow far less than the medium passing by the craft, resulting in a low mass ratio yet high performance in terms of velocity increase.
Figure 1 shows the principle of the Q-Drive using a simple terrestrial vehicle analogy. Wind blowing through a turbine generates energy that is then used to eject onboard propellant. If the energy extracted from the wind is used to eject the propellant, in principle the onboard propellant mass flow can be lower than the mass of air passing through the turbine. The propellant’s exhaust velocity is matched to that of the wind, and under these conditions, the thrust can be greater than the drag, allowing the vehicle to move forward into the wind.
Box 2 below shows the basic equations for the Q-Drive.
Let me draw your attention to equations 1 & 2, the drag and thrust forces. The drag force is dependent on the velocity of the wind or the ship moving through the wind which affects the mass flow of the medium. However, it is the change in velocity of the medium as it passes through the energy harvesting mechanism rather than the wind velocity itself that completes this equation. Compare that to the thrust from the propellant where the mass flow is dependent on the square of the exhaust velocity. When the velocity of the ship and the exhaust are equal, the ratio of the mass flows is dependent on the ratio of the change in velocity (delta V) of the medium and the exhaust velocity. The lower the delta V of the medium as the energy is extracted from it, the lower the mass flow of the propellant. As long as the delta V of the medium is greater than zero, as the delta V approaches zero, the mass of the stream of medium is greater than the mass flow of the propellant. Conversely, as the delta V approaches the velocity of the medium, i.e. slowing it to a dead stop relative to the ship, the closer the medium and exhaust mass flows become.
Equations 3 and 7 are for the power delivered by the medium and the propellant thrust. As the power needed for generating the thrust cannot be higher than than delivered by the medium, at 100% conversion the power of each must be equal. As can be seen, the power generated by the energy harvesting is the drag force multiplied by the speed of the medium. However, the power to generate the thrust is ½ the force of the thrust multiplied by the exhaust velocity, which is the same as the velocity of the medium. Therefore the thrust is twice that of the drag force and therefore a net thrust equal to the drag force is achieved [equation 9]. [Because the sail area must be very large to capture the thin solar wind and the even more rarified ISM, the drag force on the ship itself can be discounted.]
Because the power delivered from the external medium increases as the ship increases in velocity, so does the delivered power, which in turn is used to increase the exhaust velocity to match. This is very different from our normal expectations of powering vehicles. Because of this, the Q-Drive can continue to accelerate a ship for as long as it can continue to exhaust propellant.
Figure 2 shows the final velocity versus the ship’s mass ratio performance of the Q-Drive compared to a rocket with a fixed exhaust velocity, and the rocket equation using a variable exhaust but with the thrust reduced by 50% to match the Q-drive net thrust equaling 50% of the propellant thrust. With a mass ratio below 10, a rocket with an exhaust equal to the absolute wind velocity would marginally outperform the Q-drive, although it would need its own power source to run, such as a solar array or nuclear reactor. Beyond that, the Q-drive rapidly outperforms the rocket. This is primarily because as the vehicle accelerates, the increased power harvested from the wind is used to commensurately increase the exhaust velocity. If a rocket could do this, for example like the VASIMR drive, the performance curve is the same. However, the Q-drive does not need a huge power supply to work, and therefore offers a potential for very high velocity without needing a matching power supply.
Equation A16 [1] and Box 3 equation 1 show that the Q-Drive has a velocity multiplier that is the square root of the mass ratio. This is highly favorable compared to the rocket equation. The equations 2 and 3 in Box 3 show that the required propellant and hence mass ratio is reduced the less the medium velocity is reduced to extract power. However, reducing the delta V of the medium also reduced the acceleration of the craft. This implies that the design of the ship will be dependent on mission requirements rather than some fixed optimization.
Box 4 provides some illustrative values for the size of the mag sails in the solar system for the Q-Drive and the expected performance for a 1 tonne craft. While the magnetic sail radii are large, they are achievable and allow for relatively high acceleration. As explained in [4], the plasma magnet sails increase in size as the medium density decreases, maintaining the forces on the sail. Once in interstellar space, the ISM is yet more rarefied and the sails have to commensurately expand.
How might the plasma medium’s energy be harvested?
The wind turbine shown in figure 1 is replaced by an arrangement of the plasma magnet sails. To harvest the energy of the medium, it is useful to conceptualize the plasma magnet sail as a parachute that slows the wind to run a generator. At the end of this power stroke, the parachute is collapsed and rewound to the starting point to start the next power cycle. This is illustrated in figure 3. A ship would have 2 plasma magnet sails that cycle their magnetic fields at each end of a long spine that is aligned with the wind direction to mimic this mechanism. The harvested energy is then used to eject propellant so that the propellant exhaust velocity is optimally the same as the medium wind speed. By balancing the captured power with that needed to eject propellant, the ship needs no dedicated onboard power beyond that for maintenance of other systems, for example, powering the magnetic sails.
Within the solar system, the Q-Drive could therefore push a ship towards the sun into the solar wind, as well as away from the sun with the solar wind at its back. Ejecting propellant ahead of the ship on an outward bound journey would allow the ship to decelerate. Ejecting the propellant ahead of the ship as it faced the solar wind would allow the ship to fall towards the sun. In both cases, the maximum velocity is about the 400 km/s of the peak density velocity of the solar wind.
Can the drive achieve velocities greater than the solar wind?
With pure drag sails, whether photon or magnetic, the maximum velocity is the same as the medium pushing on the sail. For a magnetic sail, this is the bulk velocity of the solar wind, about 400 km/s at the sun’s equator, and 700 km/s at the sun’s poles.
Unlike drag sails, the Q-Drive can achieve velocities greater than the medium, e.g. the solar wind. As long as the wind is flowing into the bow of the ship, the ship can accelerate indefinitely until the propellant is exhausted. The limitation is that this can only happen while the ship is facing into the wind (or the wind vector has a forward facing component). In the solar system, this requires that there is sufficient distance to allow the ship to accelerate until its velocity is higher than the solar wind before it flies past the sun. Once past perihelion, the ship is now running into the solar wind from behind, and can therefore keep accelerating.
What performance might be achievable?
To indicate the possible performance of the Q-drive in the solar system, 2 missions are explored, both requiring powered flight into the solar wind.
Two Solar System Missions
1. Mercury Rendezvous
To reach Mercury quickly requires the probe to reduce its orbital speed around the sun to drop down to Mercury’s orbit and then reduce velocity further to allow orbital insertion. The Q-Drive ship points its bow towards the sun, and ejects propellant off-axis. This quickly pushed the probe into a fast trajectory towards the sun. Further propellant ejection is required to prevent the probe from a fast return trajectory and to remain in Mercury’s sun orbital path. From there a mix of propellant ejection and simple drag alone can be used to place the probe in orbit around Mercury. Flight time is of the order of 55 days. Figure 4 illustrates the maneuver.
2. Sundiver with Triton Flyby
The recent Centauri Dreams post on a proposed flyby mission to Triton indicated a flight time of 12 years using gravity assists from Earth, Venus, and Jupiter.. The Q-Drive could reduce most of that flight time using a sundiver approach. Figure 5 shows the possible flight path. The Q-Drive powers towards the sun against the solar wind. It must have a high enough acceleration to ensure that at perihelion it is now traveling faster than the solar wind. This allows it to now continue on a hyperbolic trajectory continually accelerating until its propellant is exhausted.
This sundiver maneuver allows the Q-Drive craft to fly downwind faster than the wind.
For a ship outward bound beyond the heliosphere, the ISM medium is experienced as a wind coming from the bow, While extremely tenuous, there is enough medium to extract the energy for continued acceleration as long as the ship has ejectable mass.
Up to this point, I have been careful to state this works IN PRINCIPLE. In practice there are some very severe engineering challenges. The first is to be able to extract energy from the drag of the plasma winds with sufficient efficiency to generate the needed power for propellant ejection. The second is to be able to eject propellant with a velocity that matches the speed of the vehicle, IOW, the exhaust velocity must match the vehicle’s velocity, unlike the constant exhaust velocity of a rocket. If the engines to eject propellant can only eject mass at a constant velocity, the delta V of the drive would look more like a conventional rocket, with a natural logarithm function of the mass flow. The ship would still be able to extract energy from the medium, but the mass ratio would have to be very much higher. The chart in Figure 2 shows the difference between a fixed velocity exhaust and the Q-Drive with variable velocity.
The engineering issues to turn the Q-Drive into hardware are formidable. To extract the energy of the plasma medium whether solar wind or ISM, with high efficiency, is non-trivial. Greason’s idea is to have 2 plasma magnet drag sails at each end of the probe’s spine that cycle in power to extract the energy. The model is rather like a parachute that is open to create drag to push on the parachute to run a generator, then collapse the parachute to release the trapped medium and restart it at the bow (see figure 3). Whether this is sufficient to create the needed energy extraction efficiency will need to be worked out. If the efficiencies are like those of a vertical axis wind turbine that works like drag engines, the efficiencies will be far too low. The efficiency would need to be higher than that of horizontal axis wind turbines to reduce the mass penalties for the propellant. It can be readily seen that if the efficiencies combine to be lower than 50%, then the Q-Drive effectively drops back into the regime illustrated in Box 1, that is that the mass of propellant must become larger than the medium and ejected more slowly. This hugely raises the mass ratio of the craft and in turn reduces its performance.
The second issue is how to eject the propellant to match the velocity of the medium streaming over the probe. Current electric engines have exhaust velocities in the 10s of km/s. Theoretical electric engines might manage the solar wind velocity. Efficiencies of ion drives are in the 50% range at present. To reach a fraction of light speed for the interstellar mission is orders of difficulty harder. Greason suggests something like a magnetic field particle accelerator that operates the length of the ship’s spine. Existing particle accelerators have low efficiencies, so this may present another very significant engineering challenge. If the exhaust velocity cannot be matched to the speed of the ship through the medium, the performance looks much more like a rocket, with velocity increases that depend on the natural logarithm of the mass ratio, rather than the square root. For the interstellar mission, increasing the velocity from 4% to 20% light speed would require a mass ratio of not just 25, but rather closer to 150.
Figure 6 shows my attempt to illustrate a conceptual Q-Drive powered spacecraft for interstellar flight. The propellant is at the front to act as a particle shield in the ISM. There is a science platform and communication module behind this propellant shield. Behind stretches a many kilometers long spine that has a plasma magnet at either end to harvest the energy in the ISM and to accelerate the propellant. Waste heat is handled by the radiator along this spine.
In summary, the Q-Drive offers an interesting path to high velocity missions both intra-system and interstellar, with much larger payloads than the Breakthrough Starshot missions, but with anticipated engineering challenges comparable with other exotic drives such as antimatter engines. The elegance of the Q-Drive is the capability of drawing the propulsion energy from the medium, so that the propellant can be common inert material such as water or hydrogen.
The conversion of the medium’s momentum to net thrust is more efficient than a rocket with constant exhaust velocity using onboard power allowing far higher velocities with equivalent mass ratios. The two example missions show the substantial improvements in mission time for both and inner system rendezvous and an outer system flyby. The Q-Drive also offers the intriguing possibility of interstellar missions with reasonable scientific and communication payloads that are not heroic feats of miniaturization.
References
1. Greason J. “A Reaction Drive Powered by External Dynamic Pressure” (2019) JBIS v72 pp146-152.
2. Greason J. ibid. equation A4 p151.
3. Greason J. “A Reaction Drive Powered by External Dynamic Pressure” (2019) TVIW video https://youtu.be/86z42y7DEAk
4. Tolley A. “The Plasma Magnet Drive: A Simple, Cheap Drive for the Solar System and Beyond” (2017) https://www.centauri-dreams.org/2017/12/29/the-plasma-magnet-drive-a-simple-cheap-drive-for-the-solar-system-and-beyond/
5. Zwicky F. The Fundamentals of Power (1946). Manuscript for the International Congress of Applied Mechanics in Paris, September 22-29, 1946.
by Paul Gilster | Mar 26, 2020 | Outer Solar System |
Voyager 2’s flyby of Uranus and its moons occurred on January 24, 1986, returning images that for many of us will always be associated with the outpouring of grief over the loss of Challenger, which occurred a scant four days later. But Voyager’s data were voluminous, its images striking, as we examined the ice giant and its unusual moons up close. The spacecraft closed to 81,500 kilometers of the cloud tops, examining the ring system and discovering 11 new moons.
Image: The planet Uranus, in an image taken by the spacecraft Voyager 2 in 1986. The Voyager project is managed for NASA by the Jet Propulsion Laboratory. Credit: NASA/JPL-Caltech.
Uranus was already known from early analysis of the Voyager data to have an odd magnetosphere, created where solar wind plasma interacts with the planet’s magnetic field. The planet spins on its side, and its magnetic field axis is tilted 60 degrees away from its spin axis, producing a magnetosphere that wobbles in ways that researchers liken to a poorly thrown American football. Modeling a magnetosphere like this is no easy task, but we’d like to know more because these interactions with the solar wind affect local space and the circulation of plasma, with a known effect on atmospheric plasma escape.
Now we learn from a new paper taking a deeper look at the Voyager magnetometer data that the spacecraft’s passage past Uranus took it through a type of magnetic ‘bubble’ called a plasmoid, one that needs to be factored into our understanding of the planet’s magnetic environment. The paper calls plasmoids ‘helical bundle[s] of magnetic flux’ that pinch off the end of a planet’s magnetotail, as the magnetosphere is shaped and pushed by the Sun.
To turn up the plasmoid, a phenomenon little studied at the time of the flyby, authors Gina DiBraccio and Dan Gershman, both at Goddard Space Flight Center, fine-tuned the analysis of the magnetometer data by plotting new datapoints every 1.92 seconds. What they found was a quick blip that occupied 60 seconds out of a total 45-hour flyby, but it revealed a plasmoid believed to consist mostly of ionized hydrogen some 200,000 kilometers long and 400,000 kilometers across.
Plasmoids are interesting here and elsewhere because by drawing ions out of a planet’s atmosphere, they alter its composition. They’ve shown up from Mercury to Saturn and have been observed at Earth, but this is the first time one has been identified at Uranus. The smooth, closed magnetic loops the scientists found are characteristic of plasmoids formed as a rotating planet loses atmosphere to space. Says Gershman: “Centrifugal forces take over, and the plasmoid pinches off.”
Image: An animated GIF showing Uranus’ magnetic field. The yellow arrow points to the Sun, the light blue arrow marks Uranus’ magnetic axis, and the dark blue arrow marks Uranus’ rotation axis. Credit: NASA/Scientific Visualization Studio/Tom Bridgman.
This is the first observation of a plasmoid in an ice giant magnetosphere. Should we expect the same thing to occur at Neptune? From the paper:
Although no relevant measurements are available for Neptune due to the 1989 Voyager 2 flyby trajectory [Stone and Miner, 1989], we suggest that its systematic mass loss may include a significant plasmoid contribution as well. Similar to Uranus, Neptune’s magnetosphere exhibits a large variance between the rotation and magnetic axes at an angle of ~47. However, in contrast to Uranus, Neptune’s rotation axis is not aligned with the solar wind (~30 inclination). This difference may allow for internal effects to play a larger role in mass loss and overall plasma convection. For this reason, unlike at other magnetospheres throughout the solar system, the planet’s rotation and solar wind forcing may have nearly equal contributions to the energy and plasma input at Uranus and Neptune.
It’s clear that circulation within the magnetosphere and the processes of atmospheric loss are major topics for both of our ice giants, leading the authors to note the importance of new in situ measurements “to definitively determine the relative contributions of planetary rotation and solar wind forcing in driving global plasma dynamics…” For now, the ice giants remain mysterious, revealing themselves only through our single Voyager flyby.
The paper is DiBraccio and Gershman, “Voyager 2 constraints on plasmoid?based transport at Uranus,” Geophysical Research Letters 9 August 2020 (abstract).
by Paul Gilster | Mar 24, 2020 | Missions |
One reason I wanted to run yesterday’s article about the Opher et al. paper on the heliosphere, aside from its innate scientific interest (and it is a very solid, well crafted piece of work) is to illustrate how much we still have to learn about the balloon-like bubble carved out by the solar wind. The entire Solar System fits within it easily, but we observe only from inside and have little knowledge of its structure. None of the paper’s authors would argue that we have the definitive answer on the shape of the heliosphere. That will take a good deal more data, as the paper notes:
Future remote-sensing and in situ measurements will be able to test the reality of a rounder heliosphere. In Fig. 6, we show our prediction for the interstellar magnetic field ahead of the heliosphere at V2. In addition, future missions such as the Interstellar Mapping and Acceleration Probe will return ENA [energetic neutral atom] maps at higher energies than present missions and so will be able to explore ENAs coming from deep into the heliospheric tail. Thus, further exploration of the global structure of the heliosphere will be forthcoming and will put our model to the test.
We’ll learn more from the Voyagers, in other words, as well as from IMAP (more about this one in a later article), New Horizons, and whatever probe we next send out to system’s edge. Our two Voyager spacecraft may well last another seven years, which would give them 50 years of data return since their launch in 1977.
Image: And here’s something we’ve learned from New Horizons. The SWAP instrument aboard the spacecraft has confirmed that the solar wind slows as it travels farther from the Sun. This schematic of the heliosphere shows the solar wind begins slowing at approximately 4 AU radial distance from the Sun and continues to slow as it moves toward the outer solar system and picks up interstellar material. Current extrapolations reveal the termination shock may currently be closer than found by the Voyager spacecraft. However, increasing solar activity will soon expand the heliosphere and push the termination shock farther out, possibly to the 84-94 AU range encountered by the Voyager spacecraft. Credit: Southwest Research Institute; background artist rendering by NASA and Adler Planetarium.
The interstellar probe NASA has been contemplating, under study at various centers but most visibly at the Johns Hopkins Applied Physics Laboratory (APL) would, unlike Voyager, be built from the start with a 50 year goal in mind. Voyager 1 is now about 141 AU from Earth (21.2 billion kilometers). Interstellar Probe (APL capitalizes its design) would go for 1000 AU, but at much improved speeds, reaching the distance in 50 years.
How to do this? For one thing, achieve a boost from one of the huge rockets now coming onto the market, perhaps NASA’s own Space Launch System (SLS), or a commercial entry from a private company, perhaps SpaceX or Blue Origin. We’re not talking about launching until 2030, and that’s assuming the mission gets the green light in the upcoming heliophysics decadal survey, which will put in place missions related to the Sun over a ten year period.
A gravity assist at Jupiter added on to its kick from a massive booster would put us in familiar territory, given Jupiter’s history of flinging spacecraft like Voyager and New Horizons on their way, but a solar gravity assist is also contemplated, one that would take Interstellar Probe a good deal closer to the Sun than the Parker Solar Probe. You’d think closer is better, but at this stage in our technology, the perihelion numbers will be decided by factoring the weight of the required heat shielding. A balancing act ensues to get the most bang for the buck.
Exactly which instruments would fly on this modern era Voyager Plus would depend upon how instrument packages can be combined to save mass while maximizing power and data rates on the communications side. If you have a look at the APL page devoted to Interstellar Probe, you’ll see a notional payload, meaning this is what we’d like to cover with an ideal probe. The instrumentation includes:
A particle and fields suite for exploring the interstellar medium and its interaction with the heliosphere, with detectors such as:
- energetic neutral atom (ENA) camera
- energetic particles/cosmic rays
- solar /interstellar plasma and neutral wind
- vector helium magnetometer
- plasma wave
Beyond the particle and fields instrumentation, the probe should include:
- Optical cameras for flyby imaging and astrometry
- A suite to measure dust and its basic composition
- Infrared cameras for obtaining the 3D distribution of dust beyond our planetary neighborhood
We know that Voyager 1 and 2 have both left the heliosphere, Voyager 1 in August of 2012 and Voyager 2 in November of 2018, the two craft on widely divergent trajectories (recall Voyager 1’s dogleg at Saturn to get a look at Titan, whereas Voyager 2 moved on for close passes at Uranus and Neptune). Yesterday’s paper offered a new proposal for the shape of the heliosphere which is rather interesting in this regard. If the heliosphere really is more circular, lacking that presumed cometary ‘tail,’ then getting outside it won’t necessarily be determined by what would have been considered the shortest route, avoiding a tail that was estimated to trail thousands of AU. Here astrophysics and engineering work together in the choice of optimum trajectories.
Yesterday we looked at the need to get beyond the heliosphere so we could study its structure and gain insights into other planetary systems. But there are other reasons that take us much farther afield. It’s worth remembering that within the heliosphere, we have to contend with the foreground infrared radiation from dust within the Solar System, known as the zodiacal cloud. Going beyond the heliosphere opens up the possibility of studying diffuse infrared radiation from other stars and galaxies that has been effectively blocked for us by that cloud.
We also get a look at the nature of the dust disk, one that we can observe around other stars but are unable to measure in terms of large-scale structure from within our own. Learning how the Sun affects the structure of the heliosphere will help us understand the dynamics of other stellar systems, and the data a probe like this will take will be crucial at defining the local interstellar medium, through which our much longer-range probes will eventually move.
Needless to say, a great deal of science can be accomplished along the way. Interstellar Probe would reach the Kuiper belt in a scant four years, where flybys of KBOs and long-range observation of the environment there would complement and extend what we are learning from New Horizons. The APL trade study is designed to craft “a realistic mission architecture that includes available (or soon-to-be available) launch vehicles, kick stages, operations concepts and reliability standards.” All of this produces the reference materials that will be needed for the science and technology definition team that will turn aspirations into hard designs.
We should always be thinking about the kinds of mission that might one day fly, the long-range improvements that can enable them, and the audacious targets we someday want to reach. But as we draw up these conjectures and think about eventually engineering them, we also must be thinking about the kind of missions that can fly today. An interstellar probe of the kind now under study at APL and other NASA centers was a part of the discussion for the last decadal survey, but only now are we reaching a technological level to make 1000 AU in 50 years possible.
We need these early steps to make the broader strides that will occur later, on a path toward a Solar System infrastructure that will eventually support probes into the Oort Cloud and one day beyond. So tracking the fortunes of Interstellar Probe will be a priority for Centauri Dreams in coming months.
by Paul Gilster | Mar 23, 2020 | Missions |
We have all too little information about the heliosphere, the only data from beyond it being what we have collected from the two Voyagers. Altogether, only five spacecraft — Pioneer 10 and 11, the Voyagers and New Horizons — have escaped the gravity of the Sun enroute to interstellar space. To understand how the heliosphere operates, and the interactions between the solar wind of charged particles and magnetic fields with what lies beyond, we’d really like to be able to look back at our system in its entirety. The Interstellar Probe concept being pondered at Johns Hopkins Applied Physics Laboratory and elsewhere is one possible way to do this.
I’ll have more to say about Interstellar Probe in coming days, though I do want to give a nod to its history, which can be traced as far back as 1958 and a report from the National Academy of Sciences. APL’s Ralph McNutt has been studying interstellar concepts for decades, and was a major source as I worked on my original Centauri Dreams book. It’s important to realize that interstellar studies around mission concepts to get beyond the heliosphere have been in play for a long time, and the next Heliophysics Decadal Survey could contain this one. You might remember that McNutt’s Innovative Interstellar Explorer was an earlier design.
Even now, though, we’re learning more about the heliosphere itself, and that boundary region known as the heliopause, where the solar wind bumps up against the deep currents of the interstellar medium and is shaped by them. Look at an older diagram of the heliosphere and you usually find it depicted with a shape something like a comet, a rounded nose up front and a tail stretching out well behind. Interstellar Probe would reach 1,000 AU and give us that view back that we need to learn more.
But to firm up a mission concept like this, we need more data on the target, and it turns out that the shape of the heliosphere is anything but established. It was in 2015 that Merav Opher (Boston University) and James Drake (University of Maryland) put forth a new computer model that, incorporating Voyager data, suggested a heliosphere shaped something like a crescent, so that instead of a single, comet-like tail, two jets would extend downstream from the nose.
The shape of the heliosphere has been under debate ever since, with Cassini data (based on correlations between particles echoing off the heliopause and ions measured by Voyager) being used to suggest a spherical heliosphere. Both crescent and sphere were controversial, says Voyager veteran and Cassini scientist Tom Krimigis. “You don’t accept that kind of change easily. The whole scientific community that works in this area had assumed for over 55 years that the heliosphere had a comet tail.”
Now Opher and Drake, working with Harvard’s Avi Loeb and Gabor Toth (University of Michigan), are back with an even more complex possibility. In a paper just published in Nature Astronomy, the scientists distinguish between charged particles from the solar wind and hot ‘pickup’ ions, particles that enter the Solar System in electrically neutral form, only to subsequently lose their electrons. We’ve learned from New Horizons that these particles become far hotter than ordinary solar wind ions as they are carried along within that wind.
Voyager 2’s crossing of the heliosphere boundary showed how pickup ions dominate in the region of the heliosheath, but this paper is the first to explore the impact of pickup ions on the structure of the heliosphere. The authors examine the temperature, density and speed of both groups of particles independently. Their model produces a shape far different from the comet view, a rounder, baggy-looking topology that only vaguely preserves a crescent and one that can be further manipulated by how we define the heliosphere’s edge. Have a look.
And let’s contrast this with the older view, at the left in this figure from the paper. In the caption, the reference to ‘case B’ notes one of two cases run in the scientists’ model, based on the fact that the interstellar magnetic field strength and direction are not well constrained (another reason for a properly instrumented probe in this region). For more on the distinction between the two cases, see the paper (citation below).

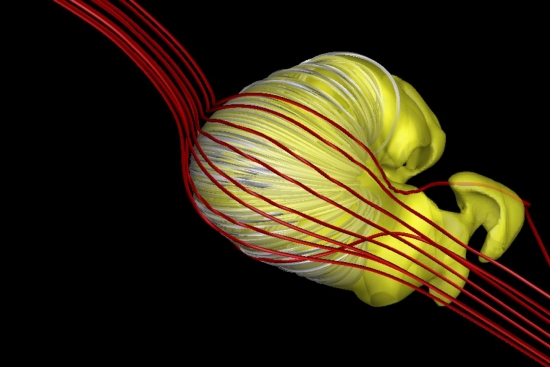

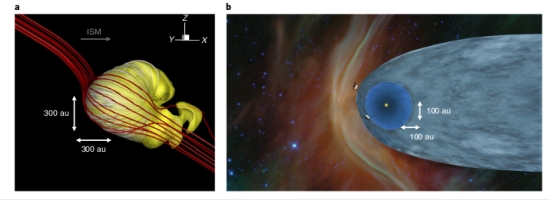

Image: This is Figure 4 from the paper. Caption: The new heliosphere. a, The HP [heliopause] is shown by the yellow surface (case B) defined by a solar wind density of 0.005 cm?3. The white lines represent the solar magnetic field. The red lines represent the interstellar magnetic field. b, The standard view of a comet long tail extending thousands of astronomical units. V1 and V2 are shown in this artist rendition; V2 has now passed the HP. The yellow dot represents the Sun. The supersonic solar wind region is represented by the blue region around the Sun. The extended region beyond the blue region represents the HS [heliosheath]. Credit: NASA/JPL-Caltech / Opher et al.
The authors describe the heliosphere’s shape as:
…a more ‘squishable’ heliosphere that has a smaller and rounder shape (Fig. 4a). This global structure is drastically different from the standard picture of a long heliosphere with a comet-like tail that extends to thousands of astronomical units (Fig. 4b). The distance from the Sun to the HP in the new round heliosphere is nearly the same in all directions.
Building a spacecraft like the APL Interstellar Probe would allow us to put instruments specifically designed for operating in this environment into play, among other things detecting pickup ions near the heliopause. This will further refine the heliosphere’s shape and also allow us to better compare our own heliosphere with those around other stars. There are astrobiological implications here, for the heliosphere deflects charged particles that could disrupt DNA. How interstellar particles enter stellar systems could thus play a role in evolution.
The paper is Opher et al., “A small and round heliosphere suggested by magnetohydrodynamic modelling of pick-up ions,” Nature Astronomy 16 March 2020 (abstract).
