I have a special enthusiasm for microlensing as a means of exoplanet discovery. With microlensing, you never know what you’re going to come up with. Transits are easier to detect when the planet is close to its star, and hence transits more frequently. Radial velocity likewise sends its loudest signal when a planet is large and close. Microlensing, detecting the ‘bending’ of light from a background object as it is affected by a nearer star’s gravitational field, can turn up a planet whether near to its star or far, and in a wide range of masses. It can also be used to study planetary populations as distant as the galactic bulge and beyond.
Now we have news of a cold planet about the size of the Earth orbiting what may turn out to be a brown dwarf, and is in any case no more than 7.8 percent the mass of our Sun. Is this an object like TRAPPIST-1, the ultra-cool dwarf star we’ve had so much to say about in recent days as investigations of its 7 planets continue? If so, the planet OGLE-2016-BLG-1195Lb is in no way as interesting from an astrobiological point of view. It’s probably colder than Pluto. It is also the lowest-mass planet ever found using the microlensing technique.
Image: This artist’s concept shows OGLE-2016-BLG-1195Lb, reported in a 2017 study in the Astrophysical Journal Letters. Study authors used the Korea Microlensing Telescope Network (KMTNet), operated by the Korea Astronomy and Space Science Institute, and NASA’s Spitzer Space Telescope, to track the microlensing event and find the planet. Credit: NASA/JPL-Caltech.
But don’t think this frigid world, about 13000 light years away, doesn’t have its uses. It is part of an ongoing investigation into the distribution of planets in the galaxy. The OGLE designation signifies the ground-based Optical Gravitational Lensing Experiment survey, run by the University of Warsaw, which alerted astronomers to the initial microlensing event. The authors of the study on OGLE-2016-BLG-1195Lb then used the Korea Microlensing Telescope Network (KMTNet) as well as the Spitzer space telescope to study the outcome.
With this planet, we are at the lowest end of what microlensing can detect with current methods. We’ll need to get to NASA’s upcoming Wide Field Infrared Survey Telescope (WFIRST) to begin finding smaller bodies than this. Tuning up the method will be useful as we work on understanding how planets are distributed in the Milky Way, since microlensing can find planets at distances far beyond the capabilities of other detection methods. Specifically, will we find a difference in the planet populations of the Milky Way’s central bulge as compared to its disk? OGLE-2016-BLG-1195Lb is a member of the disk population.
“Although we only have a handful of planetary systems with well-determined distances that are this far outside our solar system, the lack of Spitzer detections in the bulge suggests that planets may be less common toward the center of our galaxy than in the disk,” says Geoff Bryden, astronomer at JPL and co-author of the study.
Let’s dig a little deeper, though, into planet formation around ultracool stars. A 2007 paper by Matthew Payne and Giuseppe Lodato looked at the core accretion method of planet formation in the context of very low mass stars and brown dwarfs, arguing that if such objects have protoplanetary disks in the range of several Jupiter masses, then Earth-mass planets should be frequent around them, typically at about 1 AU from the star. But if brown dwarf disks contain less than a Jupiter mass of material, then they probably cannot form a planet.
The OGLE-2016-BLG-1195Lb paper runs through the scholarship, including a 2013 study from Daniel Apai showing that disks occur as frequently around ultracool dwarfs as around Sun-like stars. And a 2016 paper from Leonardo Testi and colleagues found evidence for dusty disks around 11 of 17 young brown dwarfs studied. A Herschel study from Sebastian Daemgen and team, likewise in 2016, found that half of the ultracool dwarf disks it examined were of at least one Jupiter mass.
So we’re making progress at learning about planet formation in ultracool environments, and here again microlensing comes to the fore. Stars this faint, and their even fainter planets, are a tough challenge for most planetary detection methods, though four have been found with direct imaging. Microlensing does not rely on light from the system being studied, but it can give us information about the planetary and stellar masses involved. And indeed, we have four previous microlensing events that have found planets around ultracool dwarfs.
Two of these previous microlensing detections show planets as small as a few Earth masses, and OGLE-2016-BLG-1195Lb lowers the detected mass still further. From the paper:
These [previous discoveries] suggest that the protoplanetary disks of ultracool dwarfs have sufficient mass to form terrestrial planets, as also hinted at by direct imaging of such disks. The location of these planets, at about 1 AU, support planet formation predictions. However, since the sensitivity of current microlensing surveys for systems with such small mass ratios is very narrow, around projected separations of ?1AU, they cannot set strong constraints on the presence of planets elsewhere around ultracool dwarfs, such as the much closer separations seen in the TRAPPIST-1 system.
Small planets may be common around ultracool dwarfs, an idea that previous microlensing discoveries reinforce, along with the work on protoplanetary disks and the seven planets orbiting TRAPPIST-1. As to our expectations regarding planets in the galactic bulge as opposed to the disk, the jury is still out. The planets Spitzer has thus far found in its microlensing campaign for the galactic distribution of planets are all located in the disk. We have two upcoming Spitzer microlensing campaigns, one this year and one next, which should offer additional insights. The key question: Is the galactic bulge deficient in planets?
The paper is Shvartzvald et al., “An Earth-mass Planet in a 1-AU Orbit around an Ultracool Dwarf,” accepted at Astrophysical Journal Letters (preprint).
Sometimes it pays to step back and try to look at spaceflight with fresh eyes. Go out and find Saturn in the sky and consider it as the ancients did, a moving celestial ember. And as you stand there, realize all over again that we’ve built a spacecraft that has been operating around that world since 2004, feeding us a datastream as its path was tweaked to look at interesting targets. The sheer magnitude of this accomplishment — Cassini is now operating between the planet and its rings! — is cause for celebration even as the mission’s end approaches.
Image: Artist’s concept of Cassini diving between Saturn and its innermost ring. Credit: NASA/JPL-Caltech/Space Science Institute.
Today’s good news is that controllers have reacquired Cassini’s signals following its plunge through the ring/planet gap on April 26, a time during which its 4-meter high-gain antenna was re-oriented to serve as an ad hoc shield against whatever dust grains or particles might be in its path. Critical maneuvers like these always produce nail-biting moments, and the spacecraft was out of contact during the entire ring-plane crossing, which occurred at 0900 UTC on the 26th, followed by renewed contact with Earth some 22 hours later.
Image: This unprocessed image and the two that follow show features in Saturn’s atmosphere from closer than ever before. These views were captured by NASA’s Cassini spacecraft during its first Grand Finale dive past the planet on April 26, 2017. Credit: NASA/JPL-Caltech/Space Science Institute.
The next dive is scheduled for May 2 in this ‘Grand Finale’ stage of the mission, during which Cassini will make a total of 22 dives, but this first one was obviously crucial in that we have a healthy spacecraft and will obviously learn more about spacecraft protection on future ring-plane crossings. As to that gap between the tenuous upper atmosphere of Saturn and the rings, it’s about 2000 kilometers. With Cassini moving through this area at roughly 34 kilometers per second relative to the planet, any small collisions could knock the craft out of commission.
But Cassini made it through. Earl Maize is Cassini project manager at JPL:
“No spacecraft has ever been this close to Saturn before. We could only rely on predictions, based on our experience with Saturn’s other rings, of what we thought this gap between the rings and Saturn would be like. I am delighted to report that Cassini shot through the gap just as we planned and has come out the other side in excellent shape.”
Science and engineering data are now being beamed back to Earth after acquisition of the Cassini signal at the Deep Space Network’s Goldstone Complex in California at 0656 UTC on April 27, with the data flow commencing minutes later. The ring-plane plunge took the spacecraft within 3000 kilometers of the cloud tops, an area where the air pressure is 1 bar, comparable to the atmospheric pressure of Earth at sea level. According to this JPL news release, Cassini also came within 300 kilometers of the innermost visible edge of the rings.
This is a good time to monitor the Cassini raw image gallery. During these ring-plane dives, Cassini will gather data about Saturn’s gravity and magnetic fields, helping us gain a better understanding of the planet’s internal structure. We’ll begin to get our closest ever imagery of the rings and atmospheric clouds even as the spacecraft’s particle detectors sample ring particles being drawn into the atmosphere. And at the end, when Cassini makes its plunge into Saturn itself, we’ll gain measurements of the atmosphere until contact is lost.
We’ve had 13 years at Saturn, and if you wonder why we can’t just keep them going, the fact is that the spacecraft is running out of the fuel needed to adjust its course. Eventually, we’d lose the ability to keep Cassini away from interesting astrobiological targets like Enceladus and Titan, with the subsequent danger of contamination. The Grand Finale maneuvers seek to draw maximum information out of Cassini’s final days before a spectacular finish.
What to make of Fergus Simpson’s new paper on waterworlds, suggesting that most habitable zone planets are of this type? If such worlds are common, we may find that most planets in the habitable zones of their stars are capable of evolving life, but unlikely to host technological civilizations. An explanation for the so-called ‘Fermi Paradox’? Possibly, but there are all kinds of things that could account for our inability to see other civilizations, most of them covered by Stephen Webb in his If the Universe Is Teeming with Aliens … Where Is Everybody? (2nd ed., Springer 2015), which offers 75 solutions to the problem.
Simpson (University of Barcelona) makes his case in the pages of Monthly Notices of the Royal Astronomical Society, arguing that the balance maintained by a planetary surface with large amounts of both land and water is delicate. The author’s Bayesian statistical analysis suggests that most planets are dominated either by water or land, most likely water. Earth may, then, be something of an outlier, with most planets over 90 percent covered in water.
Image: Continents on other habitable worlds may struggle to break above sea level, like much of Europe in this illustration, representing Earth with an estimated 80% ocean coverage. © Antartis / Depositphotos.com.
The unlikelihood of a planet maintaining a balance like the Earth’s gives the paper its direction. Simpson offers a pedagogical example of the Bayesian approach:
…imagine that you look at a kitchen worktop and notice some spilled coffee granules. One of those granules, selected at random, is found to lie within 0.1?mm from the edge of the 600?mm worktop. This proximity could of course be entirely coincidental. But it is much more likely that the bulk of the granules fell on the floor, and what you are seeing is merely the tail end of the distribution.
Is planet Earth at the tail end of the distribution? We don’t have enough exoplanet data to know. But the statistical model here does take note of what we have learned in our explorations of the outer Solar System. Think of Titan, where Stanley Dermott and Carl Sagan predicted in 1995 that instead of a surface covered in extensive ocean, the lack of circularization of the moon’s orbit from oceanic tidal effects pointed to a largely dry surface. We now know that the duo was correct: Titan’s liquid hydrocarbons account for about 1 percent of the total surface area.
Simpson finds this a remarkable call, but he adds that the prediction could have been made even without orbital data on Titan. Let me quote him on this, as it reiterates his method:
On a purely statistical basis, and in the absence of correlations, one expects the division of liquid and solid surface areas to be highly asymmetric. This is because the volume of liquid need not match the capacity of perturbations in the solid. The two quantities often differ by several orders of magnitude. If it is the liquid that dominates, the solid surface becomes completely immersed. Enceladus and Europa offer exemplary cases of this phenomenon. Beneath each of their icy crusts, a single ocean completely envelops a solid core (Kivelson et al. 2000; Waite et al. 2009). If, on the other hand, the liquid’s volume is subdominant, it settles into small disconnected regions, as was found to be the case on the surface of Titan.
To put this in context, we need to consider the delivery of water from icy objects originating beyond the snow line. Here we have to assume a huge variety of outcomes, planets in the habitable zone with a wide variation in the amount of water delivered to the surface. What happens over time? Some water will be found in the mantle, some lost through the upper atmosphere. Planetary topography shapes the distribution of resulting oceans.
The author goes on to consider feedback mechanisms including erosion and soil deposition as well as the deep water cycle by way of placing what happened on Earth in context. Across the galaxy, trillions of dice have been rolled, comments Simpson, and what we would like to know is whether the dice somehow favor a balance between land and water. He thinks not.
Here the anthropic principle weighs in. Does our Earth have the particular balance of water and land we see because planets without this balance — desert worlds or waterworlds — would produce intelligent land-based species at a much lower rate? In other words, if we did not live in a place with this fine-tuned balance, we wouldn’t be observers, something we should keep in mind as we consider the prevalence of worlds like our own. We can also assume that planets with larger habitable areas are more capable of sustaining larger populations. These factors imply to Simpson that the Earth has a greater habitable area than most life-bearing worlds.
We see a planet that could not be otherwise for us to be here, and assume other habitable zone worlds are similar. Our planet, argues the author, is itself close to the waterworld limit, and the water mass fraction among habitable planets could be a good deal higher. From the paper:
…numerical simulations based on delivering water from planetary embryos found a median water mass fractions of approximately 1?per?cent (Raymond et al. 2007), 10 times higher than the terrestrial value. Extremely elevated water compositions have been associated with the inflation of planetary radii (Thomas & Madhusudhan 2016). This scenario, in which the Earth is among the driest habitable planets, could help explain the appearance of a low-mass transition in the mass–radius relation of exoplanets (Rogers 2015; Chen & Kipping 2017).
And if it turns out that the Earth is unusually dry for a habitable zone planet, various mechanisms can explain the result. It is possible that low eccentricities and inclinations of planetary orbits in our Solar System make for less effective water delivery. Perhaps water delivery was affected by migration of the gas giants (Simpson considers the ‘Grand Tack’ model in which Jupiter reversed its migration, but points out that this might also produce a higher rate of water delivery). Or perhaps we have a drier Earth simply because of the stochastic nature of the delivery of water. The trillions of dice throws gave us the numbers we live with and take to be commonplace. We can hardly, then, take the Earth as the norm.
71 percent of Earth is covered by water. In addition to the amount of water delivered (and the mechanisms of that delivery), we have to factor in where it will be stored, how ocean and mantle interact, and how topographical features affect water distribution. Life has been able to emerge and technological civilization take hold because all these factors prevent the planet from becoming a waterworld, a fine balance, says Simpson, that most habitable zone worlds lack.
Simpson’s paper is an intriguing read and one that should provide fodder for science fiction scenarios (I consider that all to the good), but it’s highly speculative given that our models of water delivery in the early Solar System are still works in progress. What we come back to again and again is the need for observation. In the Titan reference Simpson makes early in the paper, it was data that proved the point made by Dermott and Sagan, and data that are required to put such factors as the depth of Earth’s water basins in a cosmic context. So we can keep waterworld theories in mind as we begin studying the actual atmospheric content of exoplanets within coming decades, when new space- and ground-based resources come online.
The paper is Simpson, “Bayesian evidence for the prevalence of waterworlds,” Monthly Notices of the Royal Astronomical Society 468 (3) (2017), 2803-2815 (full text). Thanks to Phil Tynan for an early pointer to this paper.
A closely packed planetary system like the one we’ve found at TRAPPIST-1 offers intriguing SETI possibilities. Here a SETI search for directed radio transmissions aimed at the Earth gives way to an attempt to overhear ongoing activity within another stellar system. For it’s hard to conceive of any civilization developing technological skills that would turn away from the chance to make the comparatively short crossing from one of the TRAPPIST-1 worlds to another.
Our more spread out system is challenging for a species at our level of technological development, but a colony on Mars or an outpost on Titan would surely produce intense radio traffic as it went about daily operations and reported back to Earth. Could TRAPPIST-1 be home to similar activities? The SETI Institute has continued to investigate the prospect, starting with ‘eavesdropping’ observations at 2.84 and 8.2 GHz in early April.
Image: A size comparison of the planets of the TRAPPIST-1 system, lined up in order of increasing distance from their host star. The planetary surfaces are portrayed with an artist’s impression of their potential surface features, including water, ice, and atmospheres. Credit:
NASA/R. Hurt/T. Pyle.
The SETI Institute’s work demands that the Allen Telescope Array be used in what this Institute news release calls ‘camera mode,’ which creates a series of ‘snapshots’ of the field of view every 10 seconds. The method is sensitive to the kind of broadband signals that might be used in spacecraft propulsion (think of the power beaming we’ve discussed often in these pages for getting payloads quickly to Mars and other local targets). The Benfords’ ideas on such a beaming infrastructure are examined in Microwave Beaming: A Fast Sail to Mars, while power beaming as a SETI observable is examined in Seeing Alien Power Beaming and elsewhere.
If a civilization were to be communicating between two worlds in the TRAPPIST-1 system, the time to observe its activities would be when two of the planets align with our view from Earth. It was just such an opportunity, between planets e and f in this system, that the ATA examined on April 6, while another two conjunctions occurred just six days later and were also observed by the ATA. If powerful transmissions were directed from one planet to the other, it might be possible for us to detect the spillover as the beam points toward the destination planet.
Similar observations are planned for May, looking for wideband signals much different from the kind of narrowband beacons the SETI Institute normally hopes to detect. Communications signals would doubtless carry a high data rate, while the broadband signals used in power beaming should likewise be distinctive. The raw data from these observations is being searched by high speed cloud computers, a computationally intensive task that is too expensive for the ATA to perform daily, but one that is assisted by its collaboration with IBM.
Refining Mass Information
While we follow the SETI search here with interest, it’s also worth noting that we’re getting a much tighter set of parameters on the masses of the planets around TRAPPIST-1. These are small worlds, but their proximity means we see substantial transit timing variations in the system. The masses calculated by Michaël Gillon and colleagues in the discovery paper from transit timing variation analysis produced masses for the six inner planets with uncertainties that varied between 30 percent and almost 100 percent.
Tightening up those numbers is the subject of a new paper from Songhu Wang (Yale University) and colleagues, who analyze data from the Kepler spacecraft’s K2 mission to refine the transit timing measurements. Several planets are much better constrained:
Perhaps the most significant conclusion that emerges from our analysis is that the masses of the outer planets, d, e, f, and g all show noticeable decreases in comparison to the values reported by Gillon et al. (2017). For example, the masses of planets e, f, and g (which have equilibrium temperatures of 251 K, 219 K, and 199 K, respectively) have decreased from Me = 0.62 M?, Mf = 0.68 M? and Mg = 1.34 M? to Me = 0.24 M?, Mf = 0.36 M? and Mg = 0.57 M?.
Reading through this paper simply reinforces how useful the planets around TRAPPIST-1 are proving to be — the authors say that they “…arguably constitute the most important exoplanetary system yet discovered.” The reason: We have large transit depths given the small size of the host star, along with extensive transit timing variations, meaning our ability to delve into mass, density and planetary composition here is greatly enhanced. And note this, which is based on the paper’s Figure 5 (not Figure 4, as is mistakenly referenced in the preprint):
…to within the errors of our determinations – the four most distant planets are consistent with pure water compositions, and in any event, are substantially less dense [than] either Mars or Venus.
Image: Figure 5 from Songhu Wang et al.. Caption: Planetary masses and radii for Trappist-1 system. Transit timing-inferred masses from the discovery paper (yellow dots) and this work (blue dots) are plotted with 1 ? error bars. Venus, Mars and, Earth are shown as black dots. Theoretical mass-radius relationships for different planetary compositions from Zeng et al. (2016) are plotted as colored curves. Credit: Songhu Wang et al.
The paper is Songhu Wang et al., “Updated Masses for the TRAPPIST-1 Planets,” submitted to the Astrophysical Journal (preprint).
Andrew Siemion (Berkeley SETI Research Center) presented results from the first year of the Breakthrough Listen initiative last Thursday at the Breakthrough Discuss meetings in Palo Alto. The data can be acquired here, with the caveat that file sizes can be gigantic and the data formats demand specialized software. Background information and details are available on this BSRC page. Working with the Parkes instrument in New South Wales as well as the Green Bank telescope in West Virginia and Lick Observatory’s Automated Planet Finder on Mt. Hamilton in California, the project is rapidly amassing petabytes of data.

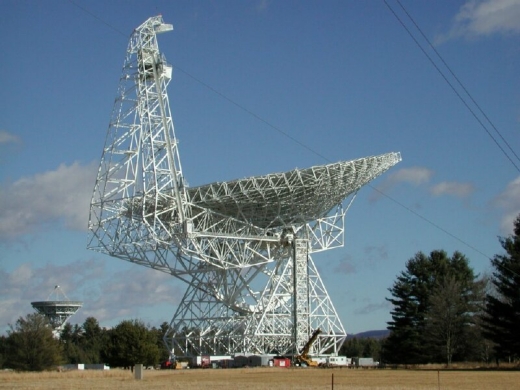

Image: The largest single-dish fully steerable radio telescope began operation in 2000 August in Green Bank, West Virginia, USA. Dedicated as the Robert C. Byrd Green Bank Telescope, the device weighs over 30 times more than the Statue of Liberty, and yet can point anywhere in the sky more precisely than one thousandth of a degree. The main dish is so large that it could house a football game, allowing it to hear even the faint murmurs of quasars located across the universe. Credit: NRAO / NSF.
A paper analyzing 692 stars from the first year of Green Bank data as examined by the Berkeley SETI Research Center science team has been submitted to The Astrophysical Journal covering frequencies from 1.1 to 1.9 GHz. Here we get 400 total hours of observing time comprising 4798 individual observations, with 8 petabytes of raw data acquired. And while the 11 highest ranking events have been getting their share of publicity (you can see the list here, with additional data), the fact is that we have no SETI detections here.
“With the submission of this paper, the first scientific results from Breakthrough Listen are now available for the world to review,” said Dr. Siemion. “Although the search has not yet detected a convincing signal from extraterrestrial intelligence, these are early days. The work that has been completed so far provides a launch pad for deeper and more comprehensive analysis to come.”
Early days indeed, given the magnitude of the challenge, and of course when it comes to doing good science, data rather than preferences or hunches are what we need. Thus SETI is all about the patient accumulation of such data, even as we continue to work the intellectual riddle of possible intelligence elsewhere. We’re making good progress on such key Drake Equation questions as the percentage of stars with planets and the frequency of planets in the habitable zone, but other issues remain completely opaque, including the frequency of life’s emergence and the longevity of a technological civilization.
My own hunch, for what it’s worth, is that it’s the second of these two issues that is the deal breaker.
I hope Breakthrough Listen will prove me wrong. This is a 10-year initiative that will survey the 1,000,000 closest stars to the Earth, while also scanning the center of the Milky Way and the galactic plane as well as examining the 100 galaxies closest to us. We’ll continue to keep a close eye on its proceedings given that the survey covers ten times more of the sky than previous SETI programs and five times more of the radio spectrum at hitherto unrivaled speeds.
The project is also deeply invested in optical SETI, carrying out spectroscopic searches for optical laser transmissions that, according to the project’s founders, can detect a 100 watt laser at the distance of the Alpha Centauri stars. I notice that both Shelley Wright (UCSD) and David Williams (Arizona State) addressed the optical issue at Breakthrough Discuss, with Wright giving the overview of searches in the optical and near-infrared and Williams talking about using telescopes designed for gamma-ray observations to detect engineered optical flashes.
Because I was forced by schedule conflicts to miss Breakthrough Discuss this time around, let me at least post clips from the Breakthrough Initiatives news releases on the conference for a bit more detail. I hope many of you were able to follow the proceedings online. Centauri Dreams reader John Walker reminds me of this significant fact: “Worth noting that in contrast to last year recordings of the proceedings are on offer. For anyone interested in (re)seeing the presentations visit Breakthrough’s Facebook page here: https://m.facebook.com/BreakthroughPrize/video_grid/?ref=page_internal.”
BREAKTHROUGH DISCUSS OPENS WITH LIVELY SESSIONS DEDICATED TO
THE SEARCH FOR PLANETS AND LIFE IN OUR COSMIC NEIGHBORHOOD:
CONFERENCE TO CONTINUE ON FRIDAY, APRIL 21, WITH DISCUSSIONS ON FACEBOOK LIVE
The first day of Breakthrough Discuss 2017 explored planets around nearby stars and their potential for life. Charles Alcock opened the conference with the statement that, “The far-fetched ideas of today are the discoveries of tomorrow,” and Peter Michelson emphasized that the last century of scientific investigation has transformed questions about origins from the realm of metaphysics to a place where they can be investigated observationally.
Three of the participants — exoplanet hunters extraordinaire Guillem Anglada-Escudé, Natalie Batalha, and Michaël Gillon — were recognized at the start of the program for making the 2017 TIME 100, TIME magazine’s distinguished list of the world’s most influential people. Anglada- Escudé served as the keynote speaker on Thursday, and Gillon will serve as the keynote speaker on Friday.
Speakers in the first session described the state of the art in observations of planets around nearby stars. Getting pictures of planets is difficult, and most are found using indirect methods. These methods have shown that most stars have planets in short-period orbits, and since most stars in the galaxy are red dwarfs, these provide promising targets when searching for habitable worlds. Many planets around these stars have recently been reported, including Proxima Centauri b, and LHS 1140 b and the TRAPPIST-1 system. Although red dwarfs have high X-ray and UV radiation, and planets around them are more likely to be tidally locked (with one side always in fierce daylight, and the other in cold night), they are long-lived stars, potentially allowing plenty of time for life to arise.
Image: This illustration shows the seven TRAPPIST-1 planets as they might look as viewed from Earth using a fictional, incredibly powerful telescope. The sizes and relative positions are correctly to scale: This is such a tiny planetary system that its sun, TRAPPIST-1, is not much bigger than our planet Jupiter, and all the planets are very close to the size of Earth. Their orbits all fall well within what, in our solar system, would be the orbital distance of our innermost planet, Mercury. With such small orbits, the TRAPPIST-1 planets complete a “year” in a matter of a few Earth days: 1.5 for the innermost planet, TRAPPIST-1b, and 20 for the outermost, TRAPPIST-1h. This particular arrangement of planets with a double-transit reflect an actual configuration of the system during the 21 days of observations made by NASA’s Spitzer Space Telescope in late 2016. The system has been revealed through observations from NASA’s Spitzer Space Telescope and the ground-based TRAPPIST (TRAnsiting Planets and PlanetesImals Small Telescope) telescope, as well as other ground-based observatories. The system was named for the TRAPPIST telescope. Credit: NASA/JPL-Caltech.
The difficulty of imaging planets even around nearby stars is compounded when trying to measure their colors to find indications of life. But, as Mercedes López-Morales described, telescopes that will come online in the mid-2020s will have the capability to detect “biosignatures” in exoplanet atmospheres. By looking for signatures of oxygen and methane, that are naturally destroyed over time if not replenished by such processes as living organisms, perhaps in the next 10 to 15 years we will have found another world where humans could breathe.
Zachary Berta-Thompson noted that 70 years of observations of Pluto saw it simply as a point of light, until the New Horizons probe gave us in-situ measurements of Pluto as a world in its own right. He encouraged the audience to ponder what in-situ observations of habitable zone planets around nearby M-dwarfs might be possible in 70 years’ time.
The second session focused on the search for extraterrestrial intelligence around nearby stars. Andrew Siemion described analysis of the first year of Breakthrough Listen observations of around 700 nearby stars, placing sensitive limits on the presence of engineered emission from these targets, and Danny Price discussed Listen observations of Alpha and Proxima Centauri. Shelley Wright discussed searches in the optical and near-infrared, and David Williams described a novel use of telescopes designed for gamma-ray observations to detect rapid optical flashes. Although no convincing signs of extraterrestrial intelligence have yet been found, the speakers and audience expressed optimism and enthusiasm for what would be possible with the next generation of searches.
The second and final day of the conference, to be held on Friday, April 21, will assess the significance of the newly discovered exoplanets for the long-term Breakthrough Starshot endeavor, a program spearheaded by Yuri Milner to develop a practical interstellar space probe.
As the closest known exoplanet, Proxima b is the current primary target for Starshot, which aims to develop the technology to send gram-scale spacecraft travelling at 20 percent of the speed of light to Alpha Centauri, some 4.367 light-years away. Starshot mission leaders Avi Loeb, Philip Lubin and Zac Manchester are among the distinguished participants at Breakthrough Discuss.
And here is the Breakthrough Initiatives news release for the second day.
SECOND ANNUAL BREAKTHROUGH DISCUSS CONFERENCE CLOSES WITH
FULL DAY DEDICATED TO NEWLY DISCOVERED EXOPLANETS AND
THE SEARCH FOR INTELLIGENT LIFE
Two-day conference brought together the world’s leading astronomers, engineers, astrobiologists, and astrophysicists for conversations on recent discoveries and future endeavors
PALO ALTO, CALIF. – April 21, 2017 – Day Two of Breakthrough Discuss opened with Michaël Gillon describing the discovery of TRAPPIST-1, which has seven temperate planets, including three in the habitable zone. The planets were discovered using small ground-based telescopes, and Gillon noted that on initial viewing of the data, there were “so many transits we couldn’t make sense of them.”
Gillon described how observations from several telescopes were used to study the TRAPPIST-1 system, including Kepler to confirm the existence of the planets, and Spitzer to figure out their orbits. Similarly, a suite of telescopes, including Hubble and the James Webb Space Telescope, could be used in the future to search for signs of water and atmospheres on planets that may be detected by the next generation of giant ground-based telescopes.
The morning continued with a panel on the search for extraterrestrial intelligence. The wide-ranging discussion, chaired by the SETI Institute’s Jill Tarter, discussed how studies of unexplained phenomena might lead to new discoveries in astrophysics, or possible evidence of activity by civilizations inhabiting other star systems. From the odd variations in brightness of a star studied by Tabetha Boyajian, to searches by Beatriz Villarroel for stars that might suddenly disappear, panelists described a variety of creative ways to search large, time-domain survey datasets for events of interest. Panelist Lucianne Walkowicz described how modern machine learning algorithms could allow us to look for strange behavior in data without making presuppositions about the kinds of signals extraterrestrials might generate. Jason Wright emphasized that a great deal of work is required to rule out natural astrophysical explanations before resorting to claims of intelligent aliens, and described an upcoming revision to the Rio Scale that is used to assess the credibility of ET claims.
The afternoon sessions focused on the ambitious Breakthrough Starshot plan to send spacecraft to nearby stars. Avi Loeb described how a gram-scale camera attached to a sail propelled by a powerful ground-based laser beam might reach Proxima b during our lifetime, traveling at 20 percent of the speed of light. Feasibility studies will be completed during the next five years, potentially leading to the construction of a kilometer-scale ground station, and the launch of many small, relatively inexpensive spacecraft to explore nearby star systems.
Philip Lubin described how this technology could enable craft to travel from Earth to the Moon in an hour, to Mars in under a day, and to nearby stars in a couple of decades. He talked about the materials science and engineering challenges in designing a sensor package to fit on a thin silicon wafer, and returning data to Earth, but was optimistic that ongoing technological developments would make this “watershed moment in human history” possible in the near future.
René Heller described a “photogravitational assist” technique that might enable a spacecraft traveling at 20 percent of the speed of light to use photons from the Alpha Centauri system as a brake to enter orbit rather than flying rapidly by. The session’s other speakers discussed how a suite of observations, both remote, and in-situ, could detect spectral features of vegetation, light glinting from oceans, and signs of water and oxygen in planetary atmospheres. The conference closed with a panel on science goals and instrumentation for Breakthrough Starshot.
In total, the two-day event featured three sessions of 19 presentations and 15 panelists. The first day, Thursday, April 20, featured a session that focused on recent observations of nearby planets, including Proxima b, and new techniques for observing them. A second session on Thursday examined the possibility of intelligent life in Earth’s cosmic neighborhood, and recent attempts to search for it with Breakthrough Listen.
The conference was broadcast on Facebook Live at www.Facebook.com/BreakthroughPrize. Viewers from around the world were able to join in the conversation and submit questions, which were answered by the panelists in real-time.
Breakthrough Discuss was hosted by Stanford University’s Department of Physics and the Harvard-Smithsonian Center for Astrophysics and sponsored by the Breakthrough Initiatives.
Breakthrough Discuss is an annual academic conference focused on life in the Universe and novel ideas for space exploration.
Breakthrough Initiatives are a suite of scientific and technological programs exploring the big questions around life in the Universe, such as, Are we alone? What are the nearest habitable planets? And can we become an interstellar civilization?
For more information see https://breakthroughinitiatives.org
