by Paul Gilster | Dec 10, 2019 | Exoplanetary Science |
An Australian amateur astronomer named Thiam-Guan Tan has made a name for himself in the realm of exoplanets. Tan participated in the discovery of an exoplanet that may orbit within its star’s habitable zone. LHS 1140 b is a super-Earth some 41 light years from Earth that orbits a red dwarf star. Back in September of 2016, with a number of professional observatories looking at the host star, Tan provided key data to help verify the existence of LHS 1140b.
“It was fortunate that I was able to catch a transit,” said Tan, a retired engineer with a 12-inch telescope who has also discovered several supernovae. He is quoted in a newspaper called The West Australian as saying “That night, the Centre for Astrophysics had lined up five other telescopes across Australia and Hawaii to observe but they were all clouded out.” Tan’s work with exoplanet transits continues, an illustration of the role that talented amateurs with affordable equipment (Tan’s telescope cost $15,000) can play.
Image: Thiam-Guan Tan with his telescope. Tan notes that “A couple of sources of encouragement were The Discovery of Extrasolar Planets by Backyard Astronomers (Castellano & Laughlin, 2002) and Bruce Gary’s book Exoplanet Observing for Amateurs. Credit: Thiam-Guan Tan.
In the same vein, I’ve been looking at a project called the Habitable Exoplanet Hunting Project, emerging under the guidance of coordinator Alberto Caballero, himself a dedicated amateur astronomer in Spain who is visible on YouTube through his efforts on The Exoplanets Channel. The idea of the new project is to help amateurs discover more exoplanets in the habitable zone, restricting the search to G-, K-, and M-class stars that show low flare activity. The stars examined by the project are all known to have transiting exoplanets outside the habitable zone, and all are within 100 light years of the Sun.
How to find out whether there are as yet undetected planets around such stars? Caballero looked at the amateur astronomers involved in TRESCA (Transiting ExoplanetS and CAndidates), a group organized by the Variable Star and Exoplanet Section of the Czech Astronomical Society comprising 191 observatories. He also consulted the American Association of Variable Star Observers (AAVSO) in his quest to find amateurs willing to participate in a global venture, one that could monitor specific stars at a predetermined time each week. Needless to say, the more volunteer astronomers, the better.
Image: The Parco Astronomico Lilio Savelli, Italy, an amateur observatory participating in the Habitable Exoplanet Hunting Project. Credit: Alberto Caballero.
By gathering data 24 hours a day, seven days a week, the team hopes to monitor individual targets when a transit of a habitable zone planet could occur. 32 participating amateur observatories are already onboard as the project comes online, and Caballero notes that southern sky coverage would be particularly welcome as the effort builds. You can see photos of the participating sites, some of which are quite impressive, here.
There is no shortage of targets. Among M-dwarfs, the most numerous nearby stars, there are almost 2,000 within 100 light years, and Caballero says that amateur equipment is capable of detecting habitable zone planets like the super-Earth around LHS 1140b, with a transit depth of 0.6%, as well as smaller worlds.
Caballero likewise counts 508 G-class stars within the same 100 light year radius, and well over 900 non-flare K-class stars as well. He believes that as many as 25 habitable zone planets may be discovered using these methods, if a large enough telescope network can be implemented. The chart below, showing 10 non-flare G-, K-, and M-class stars within 100 light years with known transiting exoplanets (as of March, 2019) is drawn from the project’s website.
The Habitable Exoplanet Hunting Project assumes that each amateur astronomer would need to gather data from the target star about one hour per week, provided an early goal in the range of 200 observatories can be reached. From the project’s website:
To make the process easy, the observations would be conducted at the same local time of the astronomers. For those cases when there is no observatory in a specific time zone, the observations would be assigned to the closest observatory. Adjustments would also have to be made on real time to exchange observation days when skies are cloudy. In addition, considering that most of the observatories are located in the Northern hemisphere, the Southern hemisphere observatories would have to undertake more hours of observation; for that, it would be ideal the use of robotic telescopes. Getting help from Southern AAVSO observatories could also solve the problem.
M-dwarfs would seem to be prime target stars for an effort like this because habitable zone planets are going to be close enough to the host to have short orbital periods, with high transit depth, but Caballero told Jamie Carter in this article in Forbes that his team favors K-class stars, which emit lower UV and X-ray radiation than the average G star (like the Sun), and also have a longer lifetime. It’s a telling reminder that an Earth ‘twin’ may actually orbit a slightly different kind of star, where conditions for habitability could be better than here.
Caballero’s short video explains what the project hopes to accomplish, and he tells me the network will begin a campaign on GJ 3470 some time in January. Here we have a known mini-Neptune of about 14 Earth masses with a radius 4.3 times that of Earth, orbiting a star in the constellation Cancer. So far it’s the only planet known around this M-dwarf, in a tight orbit whose proximity to the host, in addition to its size, precludes habitability (in fact, its atmosphere seems to be evaporating). GJ 3470 thus offers an ideal chance for the Habitable Exoplanet Hunting Project to show what it can do even as it enjoins amateurs to bulk up its network.
by Paul Gilster | Dec 6, 2019 | Exoplanetary Science |
Calling it a ‘chance discovery,’ the University of Warwick’s Boris Gänsicke recently presented the results of his team’s study of some 7,000 white dwarf stars, all of them cataloged by the Sloan Digital Sky Survey. One drew particular interest because chemical elements turned up in spectroscopic studies indicating something unusual. Says Gänsicke, “We knew that there had to be something exceptional going on in this system, and speculated that it may be related to some type of planetary remnant.”
And that makes the star WDJ0914+1914 an example of what a stellar system that survived, at least partially, the red giant phase of its host star might look like as a planet orbits the Earth-sized white dwarf. This work, which draws on data from the European Southern Observatory’s X-shooter spectrograph at the Very Large Telescope in Chile, confirms hydrogen, oxygen and sulphur associated with the white dwarf, all found in a disk of gas around the star rather than being present in the white dwarf itself. Subsequent work determined that the only way to produce this particular disk configuration was through evaporation of a giant planet.
Image: Artist’s impression of the WDJ0914+1914 system. Credit: ESO.
Thus this white dwarf makes history as the site of the first detection of a surviving giant planet around this class of star. You’ll recall previous work on white dwarf atmospheres, which has given us a look at the composition of infalling material that may have been the result of the breakup of a planet, comet or asteroid (see, for example, Survivors: White Dwarf Planets).
But now we’re looking at an actual planet in the act of shedding material while still retaining its structure. The oxygen, hydrogen and sulphur found here are similar to what we see in the deeper atmospheric layers of Neptune and Uranus. Placing such a planet in a tight orbit around a white dwarf would cause high levels of ultraviolet radiation to strip away the outer atmospheric layers, creating the same kind of disk we find at WD J0914+1914.
The star’s temperature is estimated at 28,000° Celsius, while the planet is at least twice as large as the star it orbits, a world whose atmosphere is being depleted due to interactions with the star’s high energy photons. While most of the gas escapes, about 3,000 tonnes per second fall onto the disk, which is what makes the presence of the planet accessible to observers.

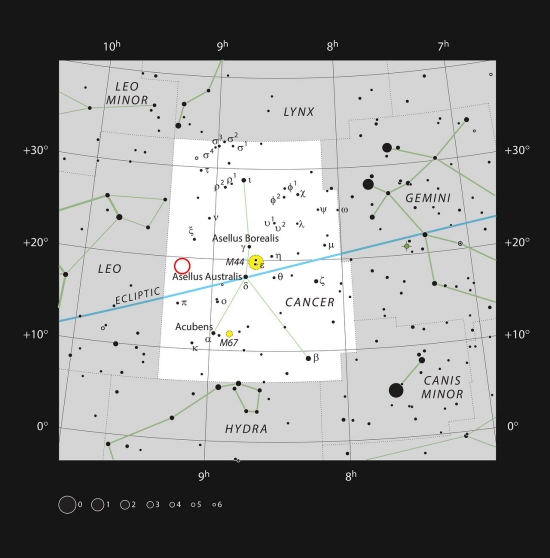

Image: Location of WDJ0914+1914 in the constellation of Cancer. Credit: ESO.
The planet orbits the primary at a scant 15 times the stellar radius, meaning it is 10 million kilometers away from the star, in a place that would have once been deep inside the red giant that was the white dwarf’s progenitor. The assumption here is that the planet moved closer to the star after the white dwarf had formed, perhaps through gravitational interactions with other worlds in this system. We also get a glimpse of this system’s future in the paper:
Gravitational interactions in multi-planet systems can perturb planets onto orbits with peri-centres close to the white dwarf, where tidal effects are likely to lead to circularisation of the orbit. Common envelope evolution provides an alternative scenario to bring a planet into a close orbit around the white dwarf, though it requires rather fine-tuned initial conditions and only works for planets more massive than Jupiter… As the white dwarf continues to cool, the mass loss rate will gradually decrease, and become undetectable in ~ 350 Myr… By then, the giant planet will have lost ~ 0.002 Jupiter masses (or ~ 0.04 Neptune masses), i.e. an insignificant fraction of its total mass.
The paper also notes a possible analogue to WD J0914+1914 in HAT-P-26b, a Neptune-mass planet orbiting a K-class star with a period of 4.26 days, adding that despite its high temperature, the small radius of WD J0914+1914 would make its planet cooler than the equivalent around a main sequence star. As to how common such planets may be, of the 7,000 white dwarfs examined by this study, only one planet has emerged. The authors point out that we can look forward to studying the roughly 260,000 white dwarfs identified by the Gaia mission, and thus could well find in this larger sample enough planets to make comparative study possible.
The paper is Gänsicke et al., “Accretion of a giant planet onto a white dwarf star,” Nature 576 (2019), 61-64 (abstract / preprint).
by Paul Gilster | Dec 4, 2019 | Outer Solar System |
It should be evident why getting information about the solar wind is useful for future deep space missions. Concepts like the electric sail, recently discussed in these pages, and various forms of magnetic sail using superconductors all rely on hitching a ride on this fast-moving stream of particles and magnetic fields emanating from the Sun. A key problem has been tracking the solar wind’s behavior in space through changing solar cycles as we get to increasingly large distances from the Sun, but fortunately we do have a few assets at system’s edge.
New Horizons’ Solar Wind Around Pluto (SWAP) instrument continues to return data useful not only for Solar System science but also for understanding how the outflow from the Sun could affect spacecraft in the Kuiper Belt. Of interest here are the spacecraft’s measurements of ‘interstellar pickup ions’ in the outer heliosphere, a region through which only the two Voyagers and the two Pioneers before them have previously traveled. Pickup ions emerge when neutral material from the interstellar medium (ISM) enters the Solar System, to become ionized by the Sun’s light or by charge exchange interactions with solar wind ions.
Heather Elliott is a staff scientist at the Southwest Research Institute, deputy principal investigator of the SWAP instrument and lead author of a new paper on this work:
“Previously, only the Pioneer 10 and 11 and Voyager 1 and 2 missions have explored the outer solar system and outer heliosphere, but now New Horizons is doing that with more modern scientific instruments. Our Sun’s influence on the space environment extends well beyond the outer planets, and SWAP is showing us new aspects of how that environment changes with distance.”
Indeed. And the more eyes on the target, the better. When the Voyagers moved through the outer heliosphere, the Sun was in a very active solar cycle. New Horizons now moves through a mild solar cycle, with SWAP measuring the low flux of interstellar pickup ions with what the mission’s team describes as “unprecedented time resolution and extensive spatial coverage.” Bear in mind that we now have just one spacecraft measuring the solar wind beyond Mars, so New Horizons is our only source for the interactions between the solar wind and interstellar material.
One effect now confirmed by SWAP is that the ionization of interstellar material causes the solar wind to slow and heat up in response. Here we can draw on other spacecraft: The SWAP data can be compared to the solar wind speed measurements from 21 to 42 AU from both the Advanced Composition Explorer (ACE) and Solar TErrestrial RElations Observatory (STEREO). New Horizons was able to confirm the slowing of the solar wind evident at a distance of 21 AU (a little over the distance of Uranus from the Sun), and to show that the solar wind measured still slower, by 6-7 percent, between 33 and 42 AU.
Image: The SWAP instrument aboard NASA’s New Horizons spacecraft has confirmed that the solar wind slows as it travels farther from the Sun. This schematic of the heliosphere shows the solar wind begins slowing at approximately 4 AU radial distance from the Sun and continues to slow as it moves toward the outer solar system and picks up interstellar material. Current extrapolations reveal the termination shock may currently be closer than found by the Voyager spacecraft. However, increasing solar activity will soon expand the heliosphere and push the termination shock farther out, possibly to the 84-94 AU range encountered by the Voyager spacecraft. Credit: Southwest Research Institute; background artist rendering by NASA and Adler Planetarium.
It’s instructive to see how the boundary where the solar wind slows to less than the sound speed as it approaches the interstellar medium moves over time, a malleable feature indeed. Voyager 1 crossed this ‘termination shock’ in 2004 at 94 AU, with Voyager 2 crossing in 2007 at 84 AU. The current lower levels of solar activity presage a termination shock that is now even closer to the Sun. We’ll still be receiving New Horizons data when the spacecraft crosses the termination shock in the mid-2020s. As solar activity increases in its regular cycle, the shock may be pushed back to 84-94 AU by the time New Horizons is able to reach it.
The paper is Elliott et al., “Slowing of the Solar Wind in the Outer Heliosphere,” Astrophysical Journal Vol. 885, No. 2 (11 November 2019). Abstract.
by Paul Gilster | Dec 2, 2019 | Astrobiology and SETI |
In our continuing look at biosignatures that could flag the presence of life on other worlds, we’ve sometimes considered the so-called ‘red edge,’ the sharp change in reflectance of vegetation that shows up in the near-infrared. It’s worth remembering that vegetation is the largest reflecting surface on Earth (about 60 percent of the land surface), with an increase in reflectance that shows up around 700 nm. As Alex Tolley explains below, the red edge may shift depending on the evolution of plant life and the variables, including light intensity but comprising many other factors, that would affect life on M-dwarf planets. These are the first whose atmospheres we’ll be seriously examining for biosignatures, and the question of how to extrapolate from Earth life to environments as exotic as these is complex. A Centauri Dreams regular, Alex reminds us that vegetative life may prove adaptable in ways that will surprise us.
by Alex Tolley
Artist’s conception of Proxima Centauri b. Credit: M. Kommesser
Xi Jinping University, New Beijing, Mars
NEWS RELEASE
FOR IMMEDIATE RELEASE
Contact Wendy Ho, Media Liaison.
wendy.ho@univxijinping.co.mars
Nov. 11, 2091
The first image of the surface ofProxima b is released today. Captured by the solar focal telescope (SoFoT), the 2-megapixel image captures the 3?4 illuminated planet’s surface. This is the first direct image of the planet that does not rely on using the EPSI inversion model for the reflected solar radiation. Both continents and oceans are clearly visible. The ocean appears wine-dark, and the continental landmasses are partially covered in a purplish color that is most probably vegetation. This vegetation contrasts with the orange-colored material of the deserts. There are no polar ice caps. The vegetated areas reach into the very high latitudes of both poles. The previous spectroscopic analysis had indicated that the atmosphere contained the biosignature gases oxygen and methane. The likely presence of vegetation suggests the source of this oxygen is photosynthesis. The color of the vegetation is likely due to the shift of the maximal light absorption into the red and near-infrared, as well as the lower flux of blue and green wavelengths of light in Proxima’s spectrum. This gives an orange cast to the landscape, with the bluer color of the local chlorophyll analog dimmed. The color difference seen is similar to that of undersea life on Earth which looks dark in the blue light at depth, but which are brightly colored in white light.
Professor Zhang Yong suggested that the photic zone in the oceans was likely quite shallow due to the low blue light emission of the star and that possibly the rate of photosynthesis was lower than on Earth. The Chinese star probe, New Dawn, is currently on its way to Proxima. Launched in 2077 it is expected to reach the Proxima system in 2099. The image of Proxima b is the first to have life confirmed visually and indicates that the probe will confirm life on the planet. The IAU will meet in December to select an official name for the planet and its features.
The abundance of M-dwarfs in the galaxy, as well as the M-dwarf, Proxima Centauri, having a rocky planet in the habitable zone (HZ) has renewed speculation of what adaptations photosynthetic plants might have to the red-shifted spectrum of these stars. Figure 1 below shows the difference in spectrum received by Earth compared to that of Proxima b. The red-shifted peak emission of Proxima is evident, as well as the high intensity of extremely short wavelength radiation compared to Earth.

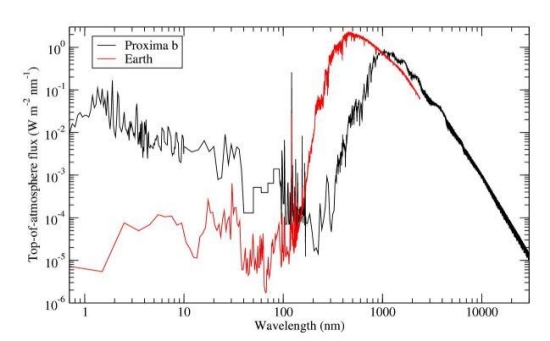

Figure 1. Top-of-atmosphere full spectral irradiance received by Proxima b (black) and the Earth (red). An orbital distance of 0.0485 AU is assumed for Proxima b. [4]
Most speculation about the adaptation of plants concerns multicellular, terrestrial green plants that have clothed the surface of our continents. These plants are almost all green plants that contain chlorophylls a and b, whose peak absorption wavelengths are both in the blue and red end of the spectrum, and therefore reflecting wavelengths between these peaks, that we perceive as green (see figure 2). The adaptation of green plants to our sun’s spectrum leads to the speculation that plants on exoplanets around M-dwarfs will similarly adapt, with a dominant absorption that would extract more energy from the red end of the spectrum and therefore changing the apparent color of their leaves. Some have speculated that the absorption of more of the light spectrum that we are adapted to see would render the leaves almost black to our eyes.
Jack O’Malley-James, School of Physics and Astronomy, University of St Andrews:
“Plants with dim red dwarf suns for example, may appear black to our eyes, absorbing across the entire visible wavelength range in order to use as much of the available light as possible.”
In this essay, I will argue that there is evidence that chlorophylls can evolve to trap much redder light, but that this is too simplistic a story when considering how plants may evolve in response to the spectrum of M-dwarfs like Proxima.
While green plants dominate the Earth today, there are other plants that use different combinations of chlorophylls. The red algae (Rhodophyta) use chlorophylls a and d, plus a red-colored accessory pigment, phycoerythrin. These ensure that the dominant absorption is at the blue end of the spectrum, and is adapted for their deeper marine habitats where the penetrating sunlight is blue filtered. Without white light to illuminate these algae, they appear black to our eyes. The brown algae, which includes the kelps, use chlorophylls a and c and an Accessory pigment, fucoxanthin. Again, the peak absorption wavelengths are at the blue end of the spectrum as befits their subsurface, marine habitats. All these plants, whether multicellular or unicellular, capture the energy of the sun to fix carbon via photosynthesis. This reduces the carbon of the carbon dioxide (CO2) with the hydrogen in water (H2O) to produce sugars and release oxygen (O2) as a byproduct. However, this is not the only method of photosynthesis.

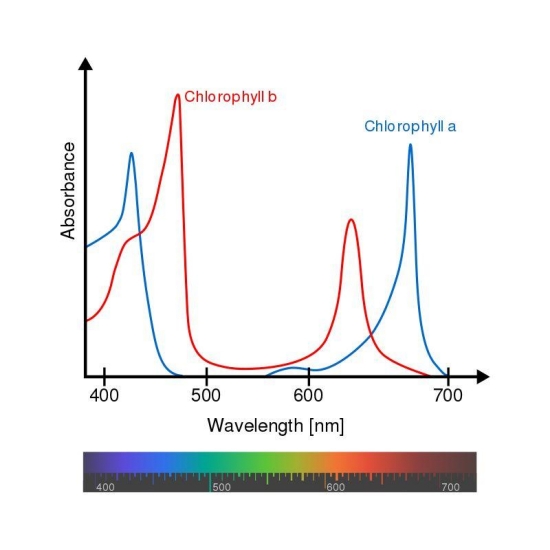

Figure 2. The absorption spectra of chlorophylls a and b, found in green plants and green Algae.
Bacteria also trap electromagnetic radiation and fix carbon. However, they use either hydrogen gas (H2) or hydrogen sulfide (H2S). In the latter case, they release particulate sulfur. Both of these types of photosynthesis require anoxic conditions and the bacteria live in hot springs or vents where these 2 gases are available. Both plant and bacterial chlorophylls are based on tetrapyrrole molecules. The absorption peaks of which are changed by small modifications of the structure.

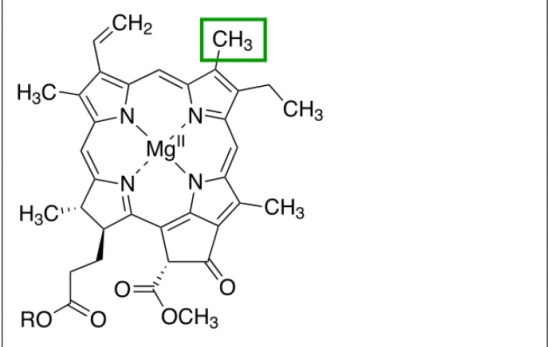

Figure 3. Tetrapyrrole ring for chlorophyll a.

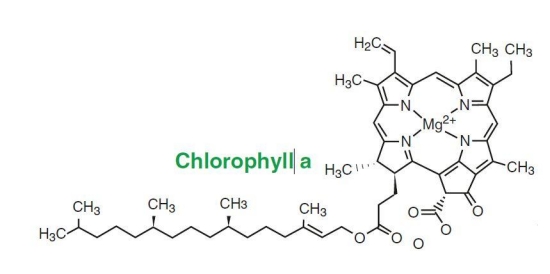

Figure 4. The structure of chlorophyll a. This is the primary photosynthetic chlorophyll.
While terrestrial life has evolved under our sun, there is the question of whether these light-absorbing molecules can evolve to meet the different spectra of other stars. While there is interest in whether planets in the HZ of M-dwarfs can even evolve life, that life would be limited to low energy, unicellular chemotrophs unless they can harvest the longer wavelength energy of their star.
The first question is whether these core, tetrapyrrole, light-absorbing molecules have already evolved on Earth to trap longer wavelength light. The obvious place to look is with the bacteria that live in very low light environments yet still photosynthesize to fix carbon.
The answer is yes. Of the 8 known bacteriochlorophylls, bacteriochlorophyll b that is found in purple bacteria has peak absorption wavelengths in the infrared (IR) of 835–850nm and 1020–1040nm.

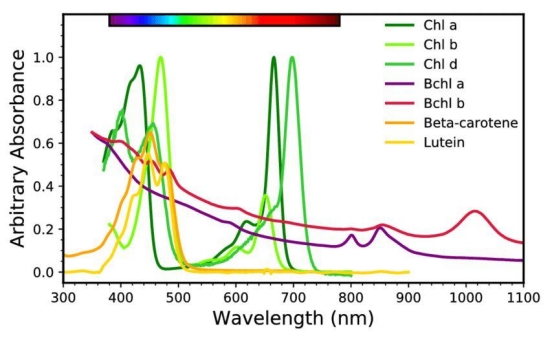

Figure 5. Photosynthetic and other light-absorbing pigments. Absorbance spectra of selected chlorophylls (Chls), bacteriochlorophylls (Bchls), and carotenoids showing the wavelengths of absorption peaks. A visible spectrum colorbar is shown at the top. The y-axis scaling is arbitrary. The Chl absorbance data are of extracted pigments in methanol solution from Chen & Blankenship (2011). The Bchl a and Bchl b data are of whole cells and originate from Cogdell & van Grondelle (2003). The beta-carotene (carotenoid) spectrum is of pigment extract in hexane from Dixon et al. (2005), while the lutein (carotenoid) is from Janik et al. (2008). Pigments dissolved in solvents have absorption peaks slightly shifted from those in cells. These data are publicly available on the Virtual Planetary Laboratory Biological Pigments Database (http://vplapps.astro.washington.edu/pigments). [3]
Relatively recent work by Faries [1] and ? Vairaprakash [2] on bacteriochlorins, modifying their side groups has shown that the peak absorption wavelength can be pushed out into the near infra-red. The number of variants in the chlorin ring exceeds that found in nature, and shows how small changes can modify the peak absorption wavelength. Figure 6 shows the results of these experiments that aimed to understand exactly how to tailor these molecules for different peak absorptions, primarily for industrial purposes. Note that all the absorption spectra retain their double peaks at each end of the visible spectrum. It should also be noted that there is clearly a drift towards a secondary peak at the short wavelengths that get shorter as the maximum peak wavelength gets longer, however this appears bound by a lower limit around 360nm, near the violet to ultraviolet transition. Whether these modifications could be produced by natural biochemistry would be interesting. The reactions needed may be outside of the possible repertoire, or too complex to prove evolutionarily viable.

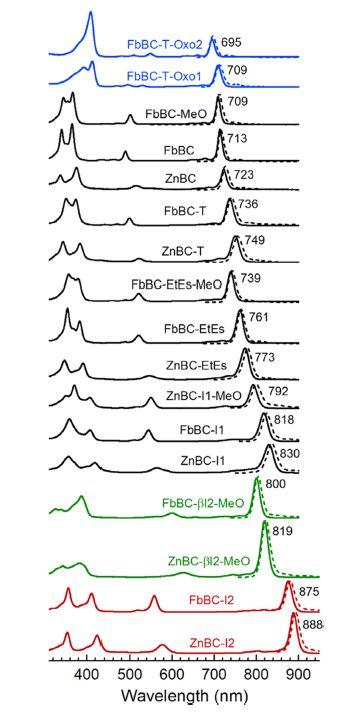

Figure 6. The expansion of the spectral window for the bacteriochlorins by placement of uxochromes at designated sites affords a commensurate increase in the photochemical tailorability of this class of nature-inspired molecules. Collectively, the results provide fundamental insights into the rational design and synthesis of red- and NIR-absorbing bacteriochlorins for solar-energy and life sciences research. [2]
This bodes well for the possible evolution of photosynthesis on planets around M-dwarfs. It indicates that life could evolve to harvest energy not just of M-dwarfs, but even brown dwarfs. This would at least ensure that non-oxygenic photosynthesis by bacteria is possible to fix Carbon.
Photosynthesis in green plants consists of 2 systems, photosystem I (PS I) and photosystem 2 (PS II). PS I is the earlier system to evolve and is the reaction that drives carbon fixation in nonoxygenic, photosynthetic bacteria. PS II evolved later and uses the addition of shorter wavelength, higher energy light, captured more by chlorophyll b to split the H2O molecule to liberate O2 as a byproduct before the reactions to fix carbon.
Experimental work [5] shows that some blue light is needed for photosynthesis to operate efficiently, although red light alone will allow suboptimal photosynthesis to occur. This is important, as it implies that even terrestrial green plants should be able to grow on an exoplanet in the HZ around an M-dwarf.
So far the story suggests that photosynthesis, both oxygenic and nonoxygenic (in bacteria) should be possible under M-dwarf light. The evolution of longer wavelength absorbing light in bacterial chlorophylls, both natural and experimentally, suggests that light trapping tetrapyrrole molecules or possible analogs, should allow the evolution of photosynthesis under the light spectrum of M-dwarfs.
While O’Malley-James (see earlier quote) speculated that plants on M-dwarf planets might use more chlorophylls to capture light at different peak wavelengths, we do not see such adaptations on Earth, even though plants live in varied light condition environments. All plants seem to produce just 2 chlorophylls, with chlorophyll a being the dominant one for photosynthesis.
The question is “Why don’t plants produce more than 2 chlorophylls?” The answer lies most probably in the cost of a larger genome to code for the extra pathways and enzymes to manufacture the chlorophylls and regulate them. Instead, plants have opted for simpler, less costly solutions. The brown algae encode the biochemistry to manufacture the accessory pigment fucoxanthin, and the red algae, the protein phycoerythrin as an accessory pigment. These seem to be a tradeoff that optimizes the capture of available light energy for growth and reproduction.
However, light-capturing molecules are not the whole story. Terrestrial, multicellular plants adapt to low light conditions by a number of strategies. These include:
1. Increasing the number of chloroplasts in their cells. This is why plants in the low light understory plants of tropical jungles tend to have dark green leaves.
2. Rather than expending energy creating lignin-rich trunks to raise the leaves of trees to the sunlight, vines simply raise their leaves by climbing those trunks, or other surfaces to reach more sunlight.
One of the main objections to life on M-dwarf exoplanets is the high ultraviolet (UV) flux. On Earth, the bacterium Deinococcus radiodurans has evolved robust biology to resist radiation damage. Other organisms might respond by remaining at depth in the oceans, or under the ice to avoid the UV intensity. If the UV is inconstant, they may adapt by other means to reduce exposure. One means is to stay unicellular and attach to a motile animal than can move to safety. On Earth, we have marine slugs that ingest algae to extract their chloroplasts for photosynthesis. Maintaining algal pouches like squid do for luminescent bacteria is also a possibility.
Figure 7. The sea slug, Elysia chlorotica, eats green algae. It retains the chloroplasts so that it can harness photosynthesis for extra energy.
It is often suggested that flares will strip the atmosphere off an M-dwarf planet. If life has evolved, atmosphere stripping would freeze the oceans, creating a thick ice crust. Photosynthetic life might be able to live below that crust, trapping the light that penetrated the icy crust, or even within the ice using the tiny liquid water fraction to allow metabolism. The conclusion I draw from our one example of Earth’s plant life, is that we should be careful in extending simple logic to speculate how plants might evolve on M-dwarf planets. Lifeforms optimize a myriad of variables to gain an edge, using different strategies to maximize gene replication. As plant breeders have long since learned, it is often not possible to optimize for one feature, such as increased seed size and production, without needing to alter other features. Light intensity and spectrum are not the only variables plants will experience on M-dwarf planets and plants will find a number of ways to adapt to those conditions, probably in ways we cannot foresee based on our experience.
A final note on detection. Because of the dominance of chlorophyll a on Earth, the reflectance of the Earth has a sharp increase at wavelengths just beyond its peak absorption. This is known as the “red edge” and is suggested as a possible biosignature. O’Malley-James and Kaltenegger [6] suggest that since the early photosynthetic cyanobacteria also have the same chlorophyll type, that the red edge signature could be used even for exoplanets at a much earlier stage of the evolution of life. However, the longer wavelength peak absorption of bacteria using different bacteriochlorophylls, and the possible evolution of longer wavelength absorbing chlorophylls suggests that this red edge may shift, perhaps into the IR. If so, some flexibility in the determination of any red edge biosignature should be entertained.
References
1. Faries, K. M., Diers, J. R., Springer, J. W., Yang, E., Ptaszek, M., Lahaye, D., … Holten, D. (2015). “Photophysical Properties and Electronic Structure of Chlorin-Imides: Bridging the Gap between Chlorins and Bacteriochlorins.” The Journal of Physical Chemistry B, 119 (24), 7503-7515. doi:10.1021/jp511257w.
2. Vairaprakash, P., Yang, E., Sahin, T., Taniguchi, M., Krayer, M., Diers, J. R., … Holten, D. (2015). “Extending the Short and Long Wavelength Limits of Bacteriochlorin Near-Infrared Absorption via Dioxo- and Bisimide-Functionalization,”? The Journal of Physical Chemistry B Vol. 119 (12), 4382-4395. doi:10.1021/jp512818g
3. Schwieterman, Edward. (2018). “Surface and Temporal Biosignatures.”
10.1007/978-3-319-30648-3_69-1.
4. Ribas et al., “The full spectral radiative properties of Proxima Centauri,” Astronomy & Astrophysics Vol. 603, A58 (July, 2017).
https://www.aanda.org/articles/aa/full_html/2017/07/aa30582-17/aa30582-17.html
5. Hogewoning, S. W., Trouwborst, G., Maljaars, H., Poorter, H., Van Ieperen, W., & Harbinson, J. (2010). “Blue light dose-responses of leaf photosynthesis, morphology, and chemical composition of Cucumis sativus grown under different combinations of red and blue light,” Journal of Experimental Botany, 61 (11), 3107-3117. doi:10.1093/jxb/erq132
6. O’Malley-James, J. T., & Kaltenegger, L. (2019). “Expanding the Timeline for Earth’s Photosynthetic Red Edge Biosignature,”. The Astrophysical Journal, Vol. 879 (2), L20. doi:10.3847/2041-8213/ab2769
7. Berdyugina, S. V., & Kuhn, J. R. (2019). “Surface Imaging of Proxima b and Other Exoplanets: Albedo Maps, Biosignatures, and Technosignatures,” The Astronomical Journal Vol. 158 (6), 246. doi:10.3847/1538-3881/ab2df3
8. Stevenson, D. S. (2017). Life Jim, But Not as We Know It. In The Nature of Life and Its Potential to Survive (Springer), 193–236. doi:10.1007/978-3-319-52911-0_5
by Paul Gilster | Nov 26, 2019 | Exoplanetary Science |
The interest in ‘Oumuamua and comet 2I/Borisov makes it clear that interstellar neighbors wandering into our system generate loads of media coverage. And why not: Here is a way to study material from another stellar system while remaining within our own. 2I/Borisov, for example, reaches its closest approach to Earth in early December, closing to within roughly 300 million kilometers. Whatever pushed an object like this out of the parent system cannot be known, but we’re likely dealing with gravitational disruption related to planets in the birth system. But more about that in a moment.
For thanks to Yale University astronomers Pieter van Dokkum, Cheng-Han Hsieh, Shany Danieli, and Gregory Laughlin, we have a fine new image of 2I/Borisov. This was taken on November 24 using the W.M. Keck Observatory’s Low-Resolution Imaging Spectrometer in Hawaii. The tail of the comet, according to van Dokkum, is about 160,000 kilometers long. Note the size comparison below to be reminded, as always, of the immensity of the objects we routinely study in the sky. For those of us who occasionally get jaded, here is another corrective.
Image: Left: A new image of the interstellar comet 2l/Borisov. Right: A composite image of the comet with a photo of the Earth to show scale. (Pieter van Dokkum, Cheng-Han Hsieh, Shany Danieli, Gregory Laughlin).
Gregory Laughlin points out that 2I/Borisov is evaporating as it moves through the Solar System, releasing the gas and dust so visible in its tail. Says Laughlin: “Astronomers are taking advantage of Borisov’s visit, using telescopes such as Keck to obtain information about the building blocks of planets in systems other than our own.” So true, and what an opportunity we’re opening up as we begin what will become the more routine study of such objects.
Bear in mind that according to a current Laughlin paper, written with Yale graduate student Malena Rice, we can expect a few such objects showing up every year, with much smaller (and therefore all but impossible to detect) objects coming into the Solar System in the hundreds per year. The duo studied three protoplanetary disks from the Disk Substructures at High Angular Resolution Project (DSHARP). Says Rice:
“We were looking for disks in which it was pretty clear a planet was there. If a disk has clear gaps in it, like several of the DSHARP disks do, it’s possible to extrapolate what type of planet would be there. Then, we can simulate the systems to see how much material should be ejected over time…This is actual material that makes up planets in other solar systems, being flung at us. It’s a completely unprecedented way to study extrasolar systems up close — and this field is going to start exploding with data, very soon.”
The paper on the frequency of interstellar objects is Laughlin & Rice, “Hidden Planets: Implications from ‘Oumuamua and DSHARP,” Astrophysical Journal Letters Vol. 884, No. 1 (10 October 2019). Abstract / Preprint.
